Modern A Frame Cabin, 21ft by 28ft, 590 sq. ft. Tiny House

byPlaniva Design
36 sales
$95.00
(was $190.00)
 & Instant Download
You Save:$95.00
50% off
Payment Methods:
Item description from the seller
down arrow

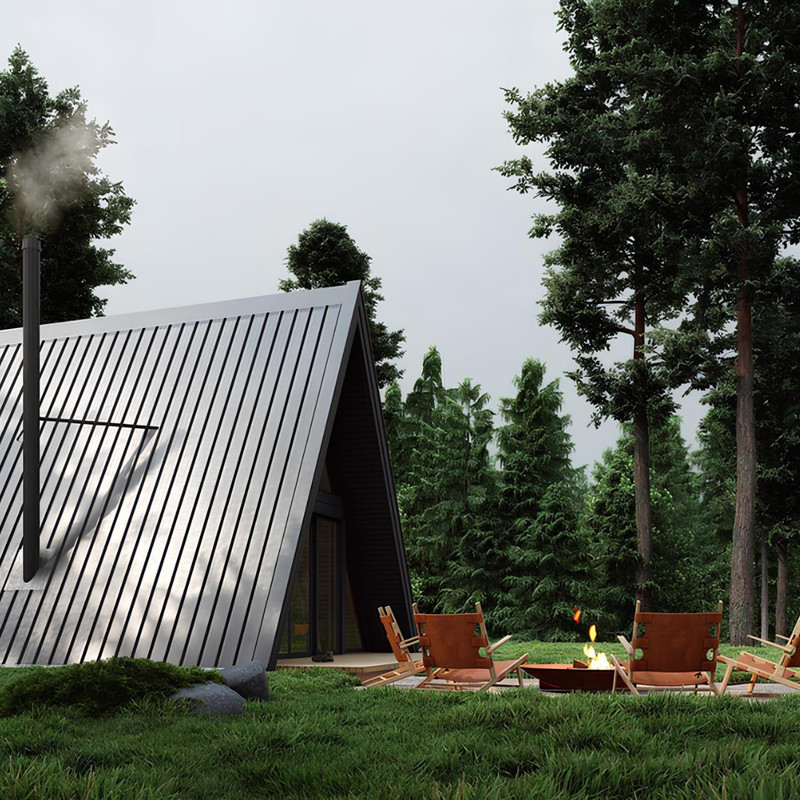

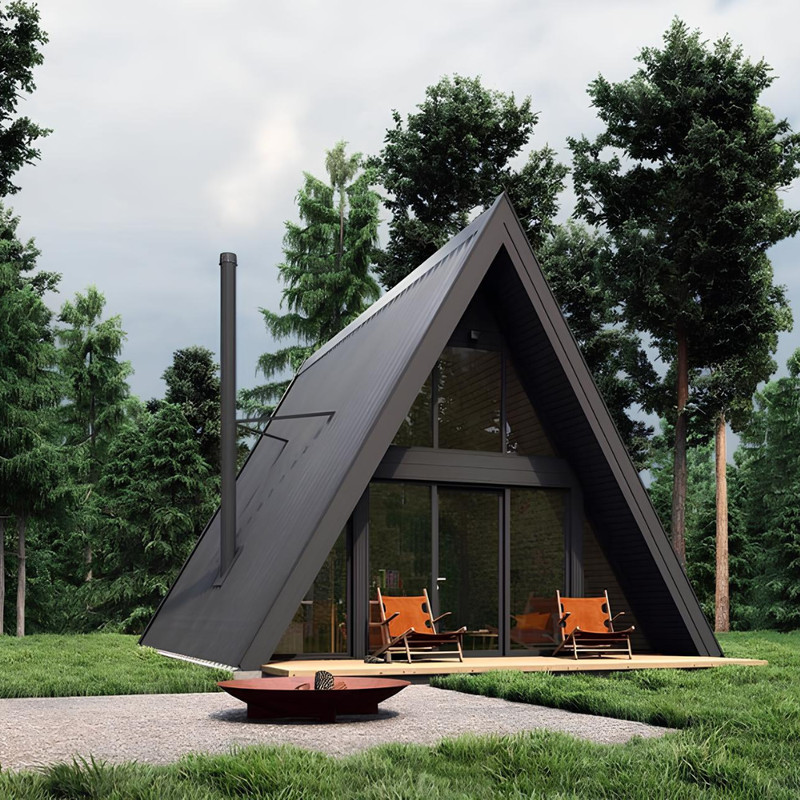

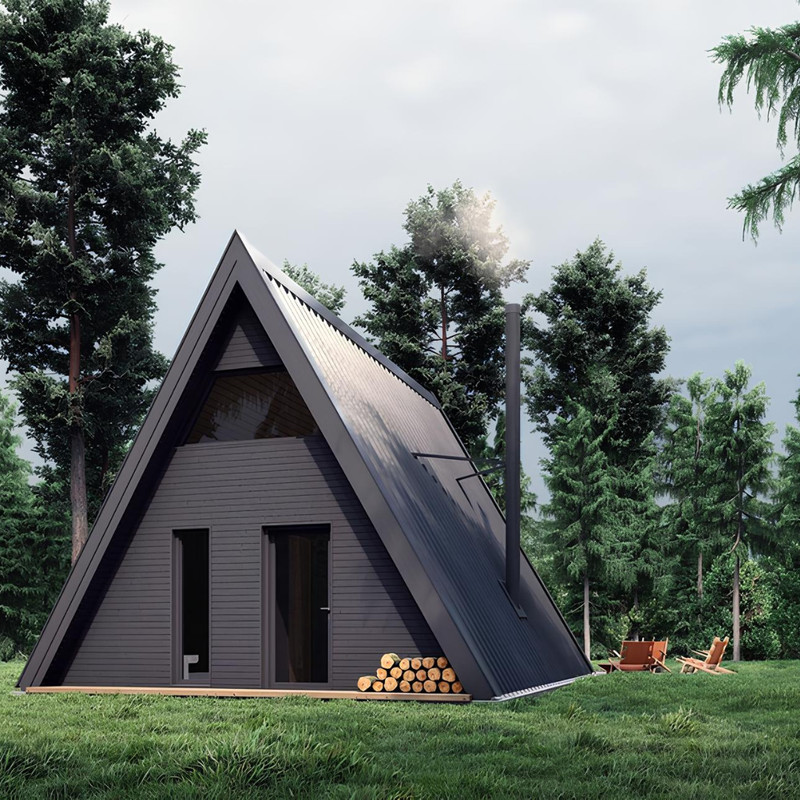

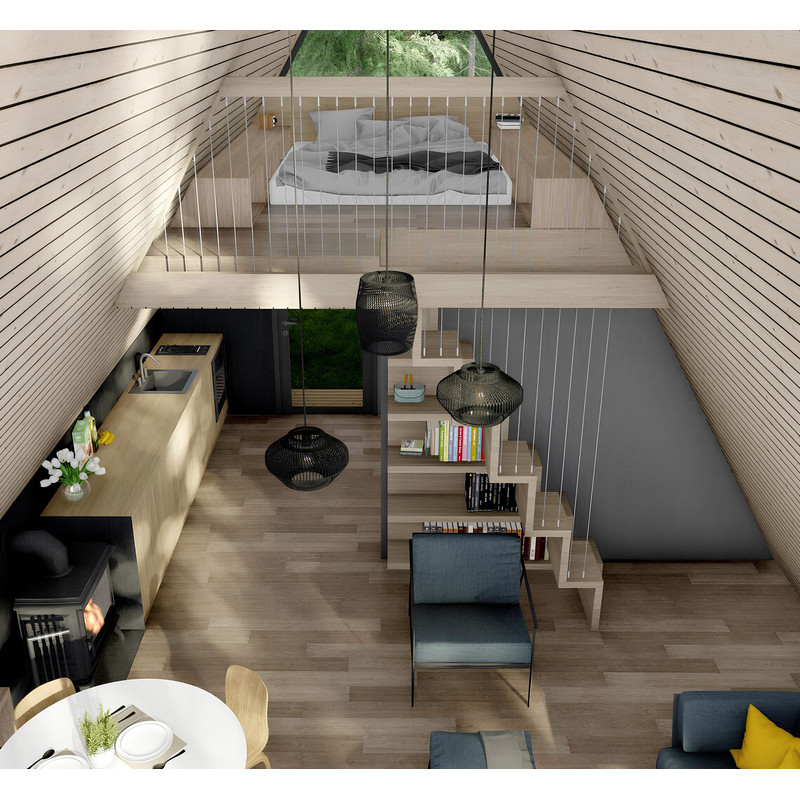

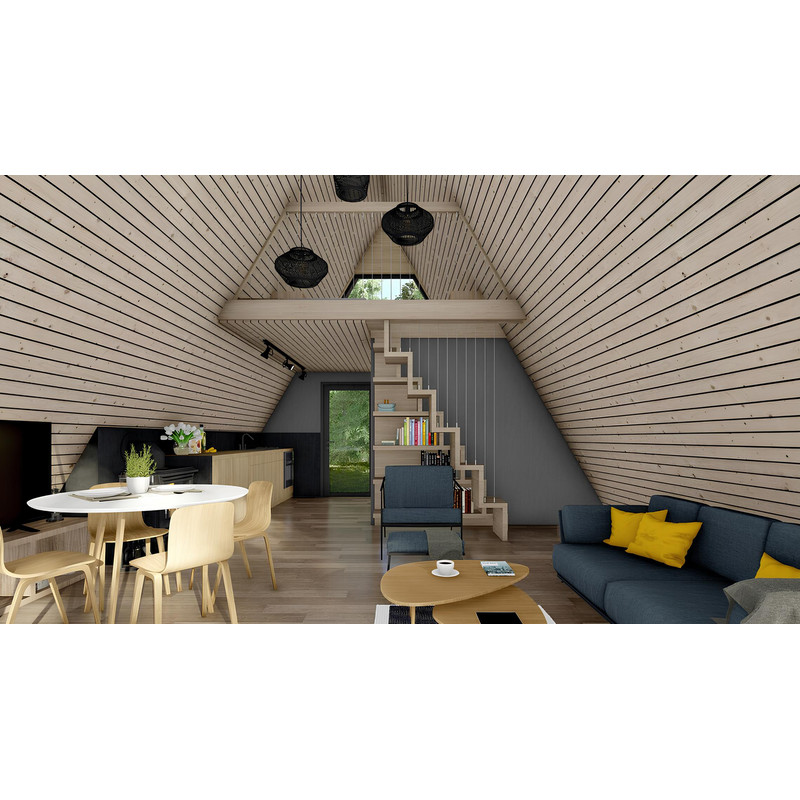

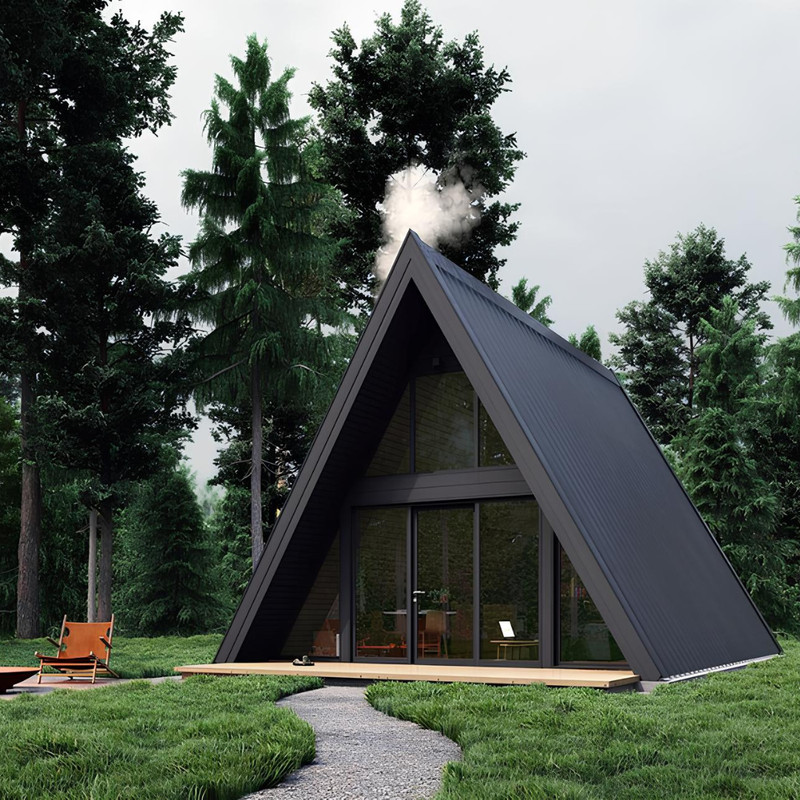

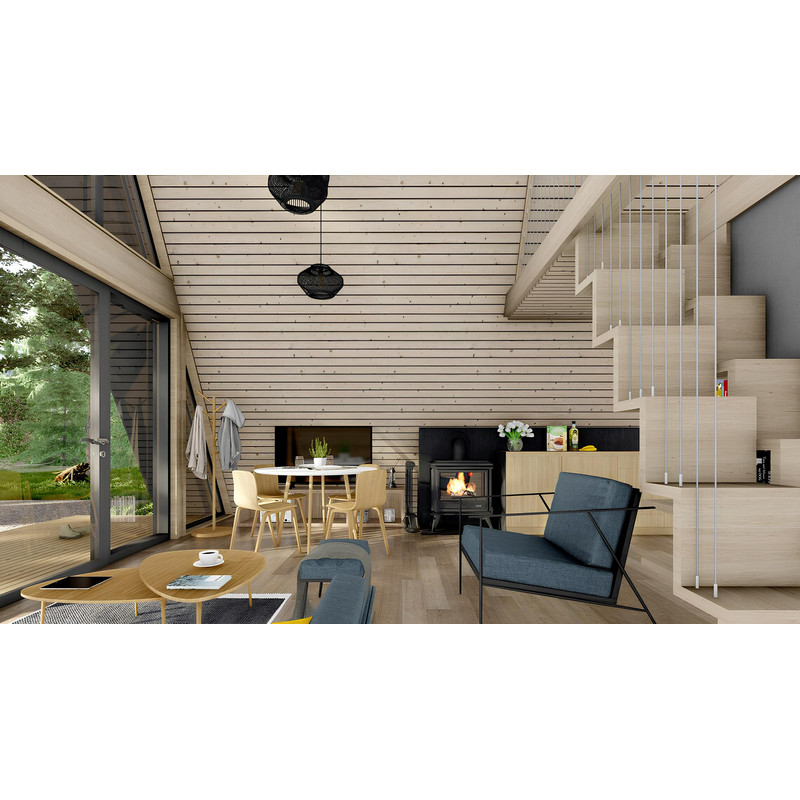

Searching for a luxurious cabin plan? Discover our modern A-frame cabin blueprint for a cozy escape. This 590-square-foot, one-bedroom, one-bath cabin features wood siding, open floor plan, high ceilings, and large windows. Enjoy custom cabinets, quartz countertops, and a stunning bathroom with a floor-to-ceiling window. Get instant downloads and expert support for an effortless build. Upgrade your lifestyle with our luxury cabin plan today!

Specifications:



590 sq. ft. 21'0" wide x 28'0” long x 18'0" tall

 - 1 Bedroom - 1 Bath -  Loft - Exterior Deck

Custom Kitchen Cabinets c/w Slow-Close Hardware & Quartz Countertops

Space to Accommodate an Electric Cooktop, Range Hood, & Mini-Fridge (Appliances Not Included)



Building envelope-



Walls:

2x6 conventional lumber framing finished with standing seam metal and natural timber siding.

Standing Seam Metal Exterior - Maintenance Free, & Cedar Wrapped Deck

Closed Cell Spray Foam Insulation Throughout



Roof:

Engineered lumber and or prefab trusses finished with standing seam metal.



Foundation:

Concrete pier block on grade. Alternate crawl space detail included.





Drawings:



20-30 sheets of Digital PDF Format Drawings



A1 TITLE SHEET

A2 BUILD SEQUENCE

A3 BUILD SEQUENCE

A4 FLOOR FRAMING PLANS

A5 WALL FRAMING PLANS

A6 WALL FRAMING PLANS

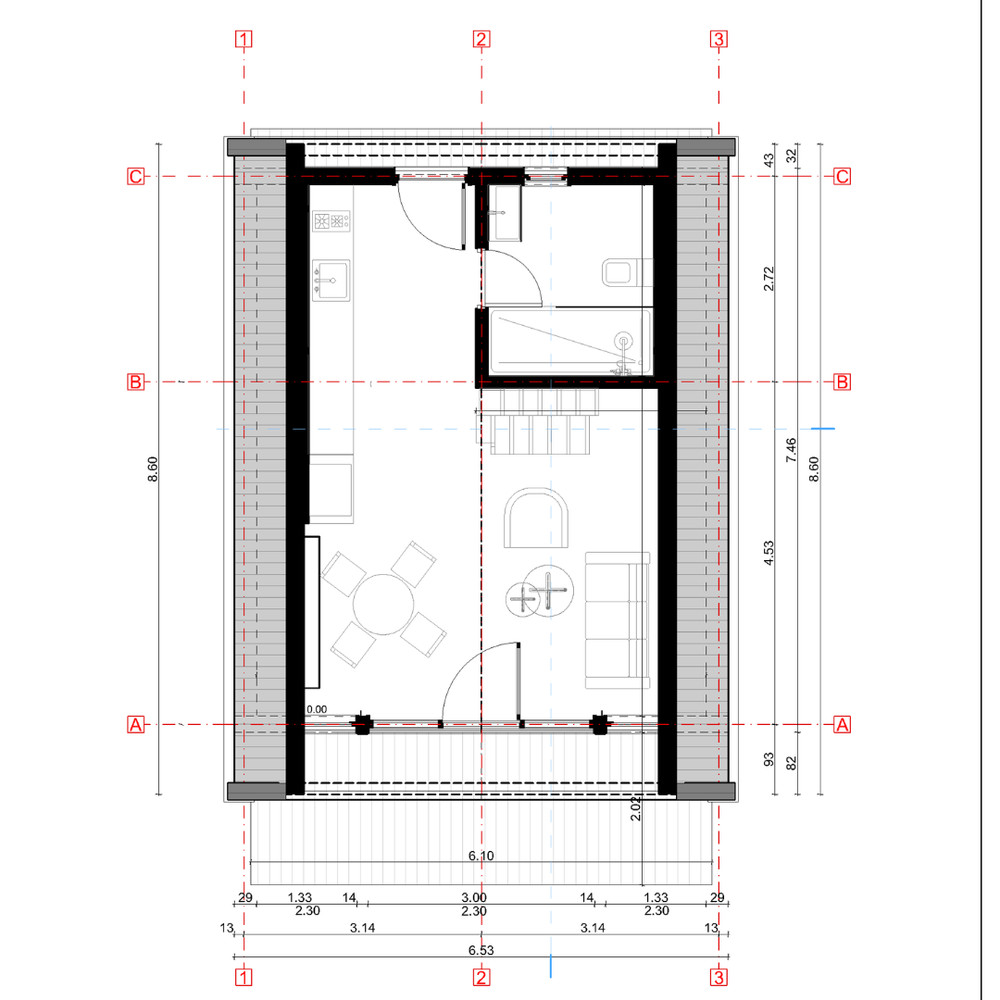

A7 FLOOR PLANS

A8 FIXTURE PLANS

A9 ROOF FRAMING PLANS

A10 ROOF PLAN

A11 ELEVATIONS

A12 ELEVATIONS

A13 SECTIONS

A14 SECTIONS

A15 INTERIOR DETAILS(BATHROOM)

A16 INTERIOR DETAILS(BATHROOM)

A17 INTERIOR DETAILS(KITCHEN)

A18 INTERIOR DETAILS(OTHERS)

A19 EXTERIOR DETAILS, DOORS & WINDOWS SCHEDULE

A20 DOORS & WINDOWS SCHEDULE

A21 REFLECTED CEILING PLAN



This is a study drawing set, and please consult with your local builders for electrical and plumbing.



PLEASE NOTE:

Construction costs and materials may vary depending on your region. If formal construction is required, the project may need to be arranged according to the laws of your region. We tried to explain in an understandable language. We think that you can easily understand and practice.



  • This product is a digital download. There is a "No" product that is physically shipped.



Copyright Notice

The designs and diagrams contained in this PDF are copyrighted. Copyright in Turkey is protected under the Law on Intellectual and Artistic Works No: 5846.



Prepared for personal use, and cannot be reproduced. In case of duplication and distribution, a penalty is applied.
