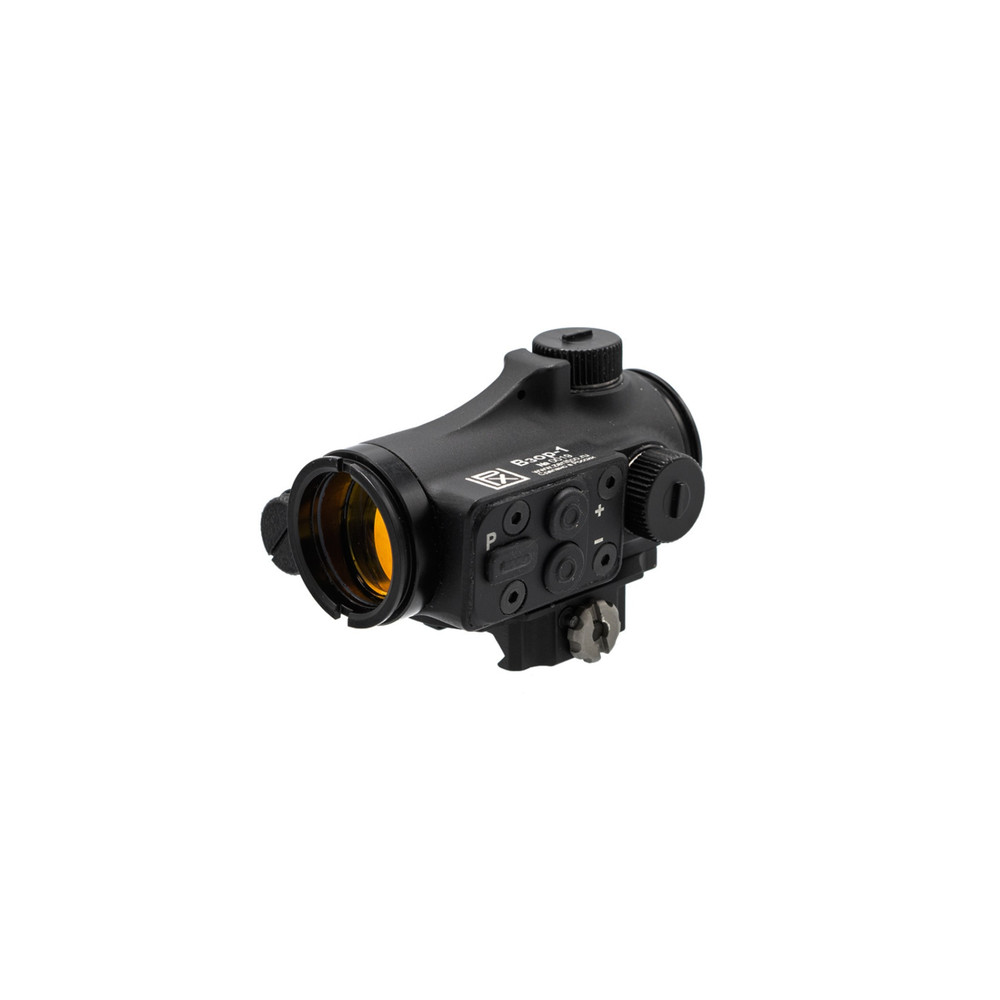

Vzor-1 sight Red Dot Zenitco

byZenitco Dealer
274 sales
 & FREE Shipping


plus icon1plus icon
Item description from the seller
down arrow

"Vzor-1" red dot sights are designed for aiming on small and middle distances.
The product is designed to be installed on various types of small arms (hunting) weapons on Picatinny rails or Basis rails.

  Technical specification:

     Magnification      1х
     Lens diameter      22 mm
     Aiming mark size (dot)      1
     Aiming mark size (circle)      34
     Compatibility with NVD      Yes
     Adjustments      1 click = 1
     Brightness of aiming mark      10 levels

Battery type:
battery, 1,5 V. It is acceptable to use rechargeable battery, 1,2 V.

Time of continuous work on one battery:
· 1 year – in «dot» mode with middle brightness;
· 60 hours – in «dot and circle» mode with maximum brightness.
Values are valid at room temperature and the proper quality of the battery.
A battery is installed inside the product by the manufacturer.

Environmental specification:
Temperature: from -50 to +60° .
Water resistance: 10 m.

Red dot: Aluminum alloy D16T
Platforms: Aluminum alloy D16T with steel elements
Lens covers: Polymer

Weight (without battery, platform and lens covers) – 103 + 2 gr.

Overall dimensions (without platform and lens covers) – 69х52х39 + 2 mm.

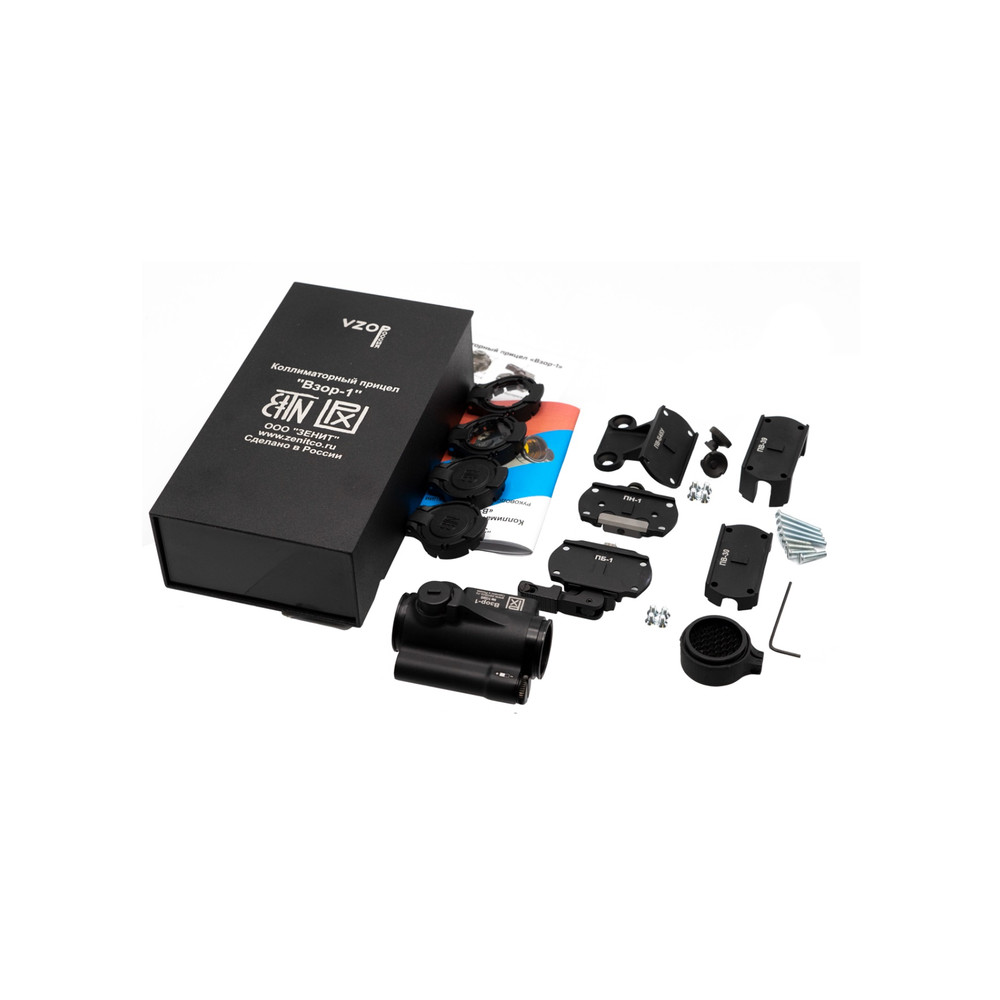

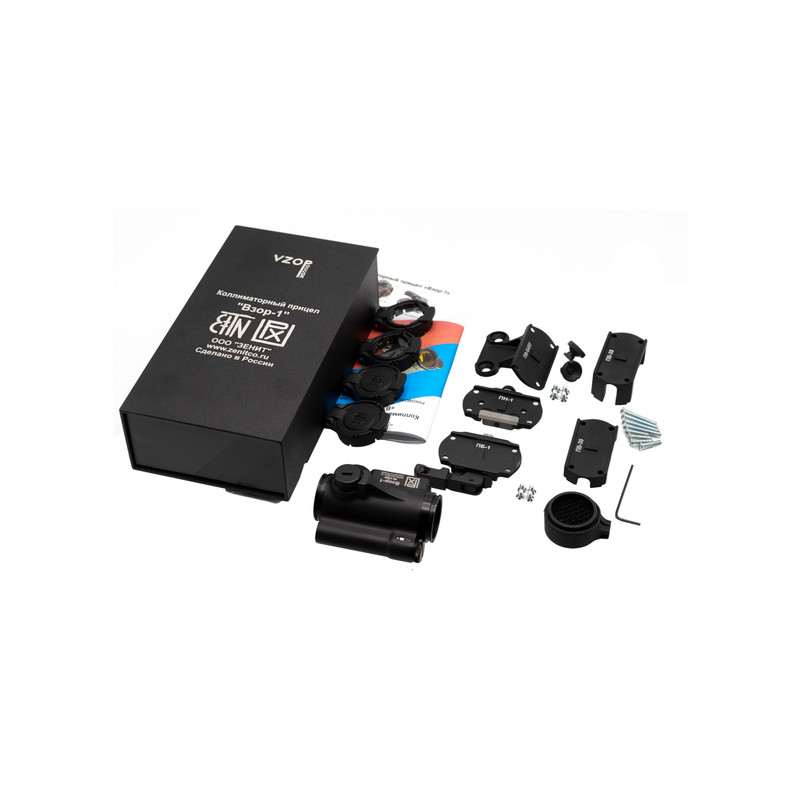

In the kit:


 «Vzor-1» red dot with PB-1 quick release platform and battery installed       1 pc.
     PV-30 spacer       1 pc.
     PV-39 spacer      1 pc.
     PN-1 platform      1 pc.
     PV-B45U platform      1 pc.
     Lens covers      4 pc.
     Anti-glare blend      1 pc.
     Manual      1 pc.
     Short manual      1 pc.
     Packaging - metal box      1 pc.
