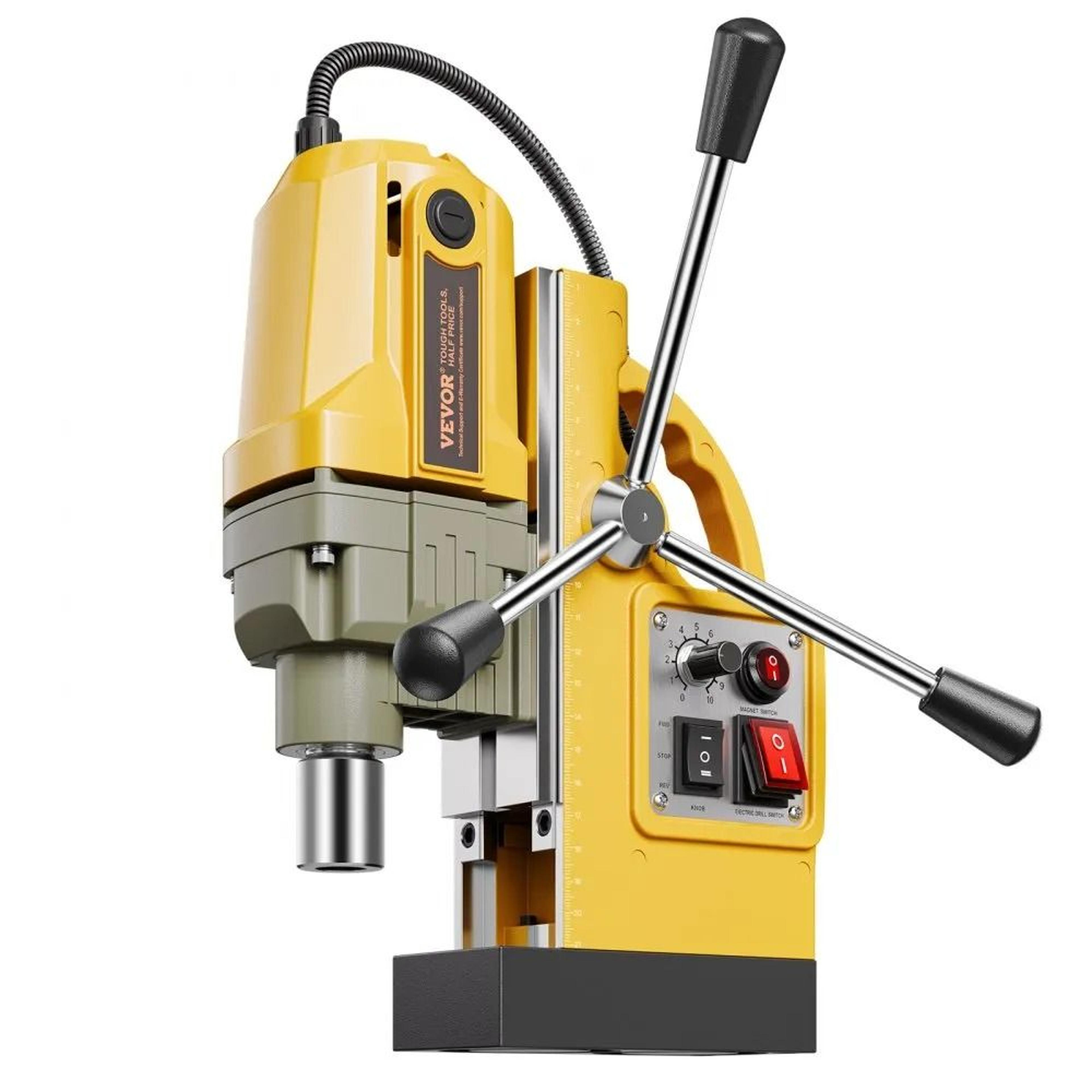

1200W Magnetic Drill Press with Variable Speed and 1.6-Inch Coring Capacity

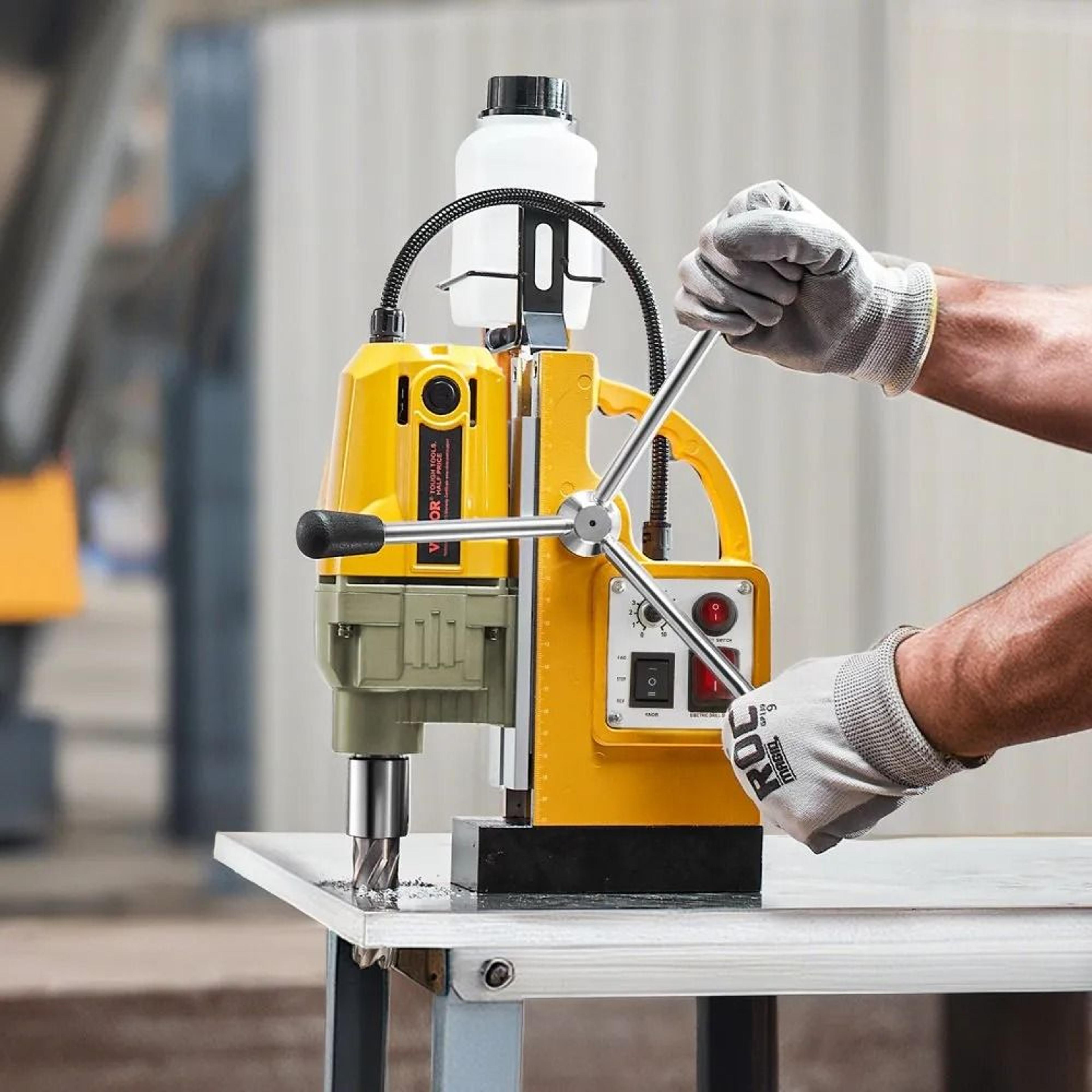

Take on demanding metal drilling projects with this 1200W magnetic drill press, designed for steel fabrication, industrial installations, and home improvement tasks. Featuring a powerful copper motor, adjustable speed settings, and a strong electromagnetic base, this electric mag drill delivers controlled drilling performance. Its sturdy construction and built-in protection features support efficient operation across a variety of demanding applications.

Key Features

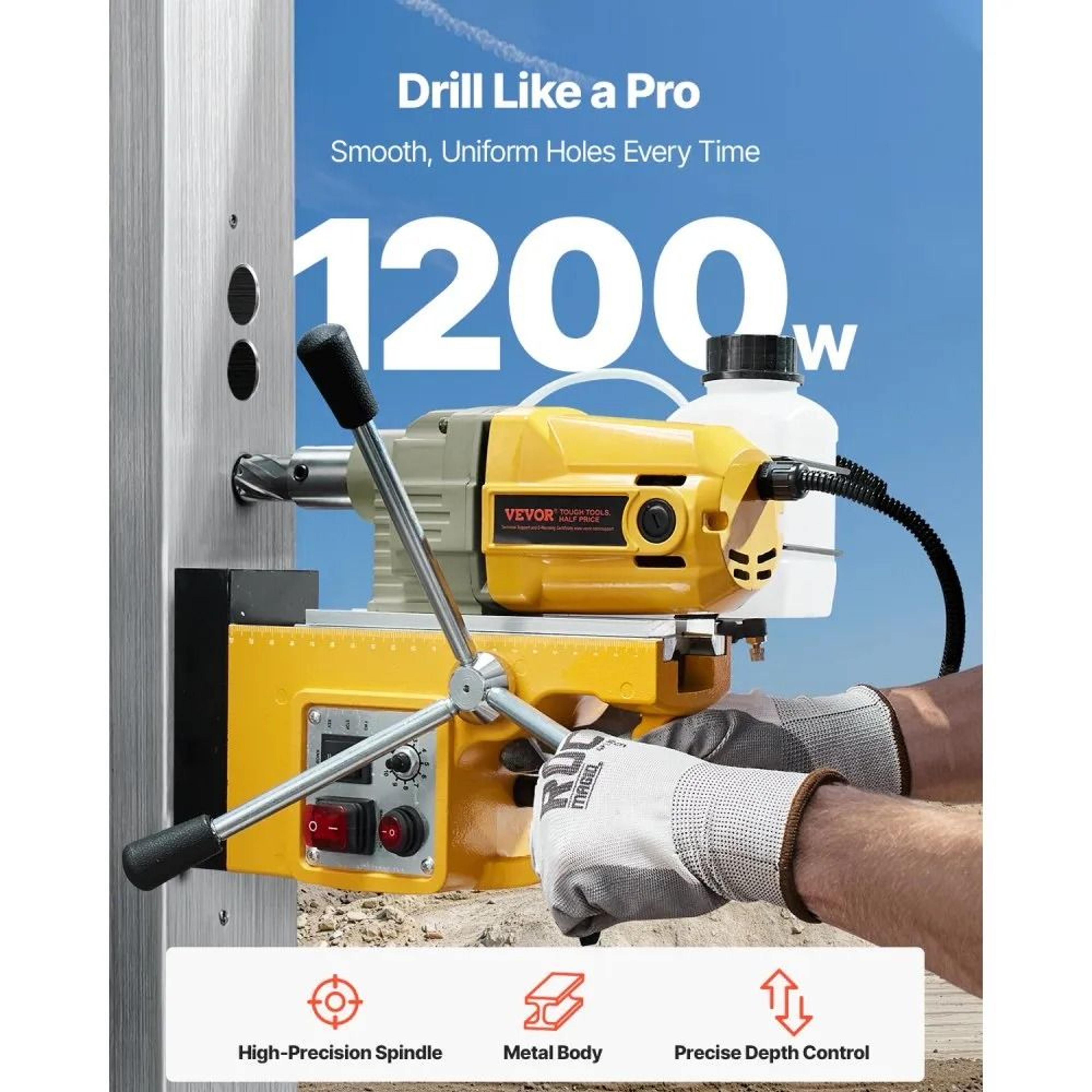

• Powerful 1200W Motor: Copper motor delivers a no-load speed of 0–850 RPM, supporting coring diameters up to 1.6 inches (40 mm) and depths up to 2 inches (50 mm).

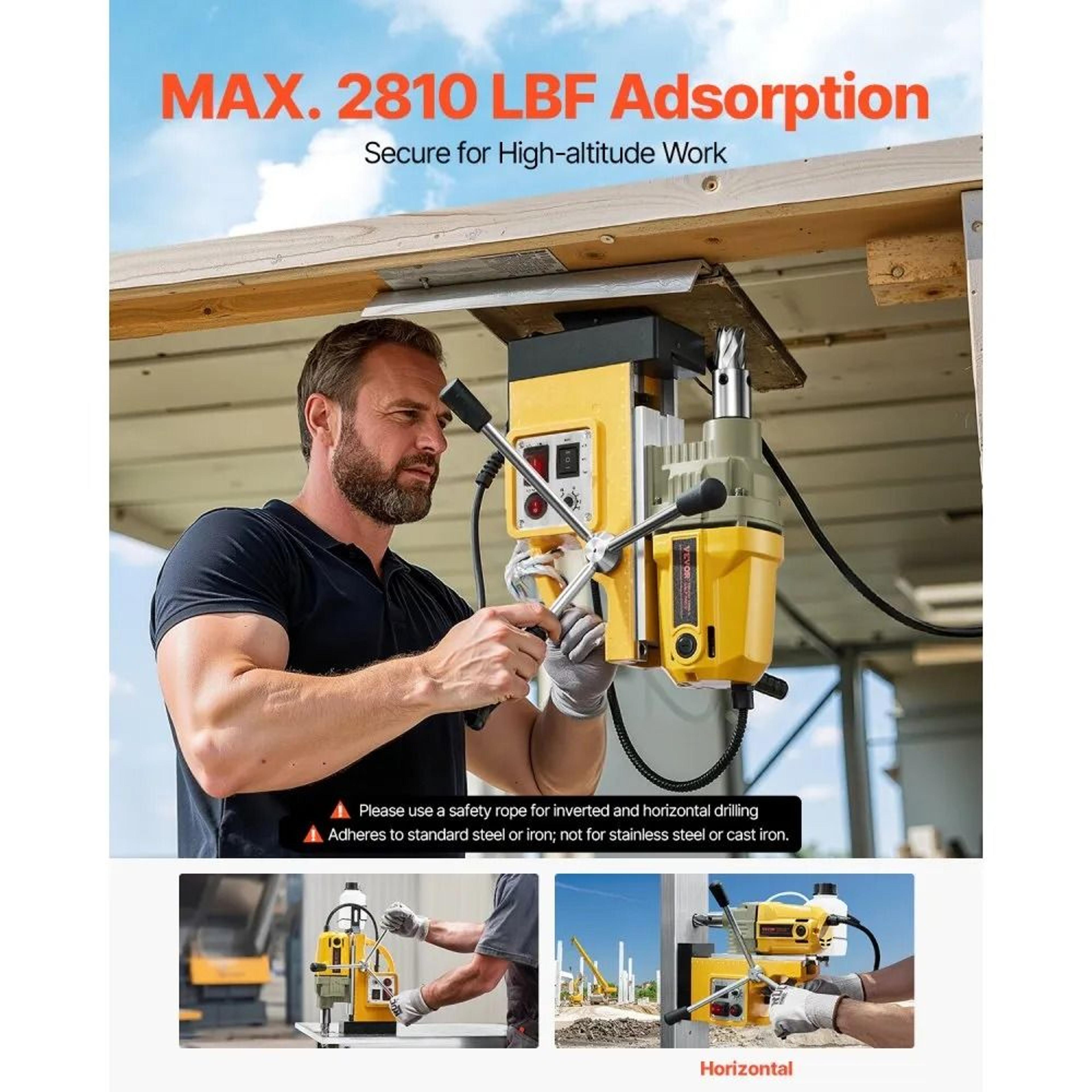

• Strong Magnetic Base: Generates up to 2,810 lbf (12,500 N) of magnetic holding force to help secure the drill during operation. The thickened electromagnetic base features pure iron construction.

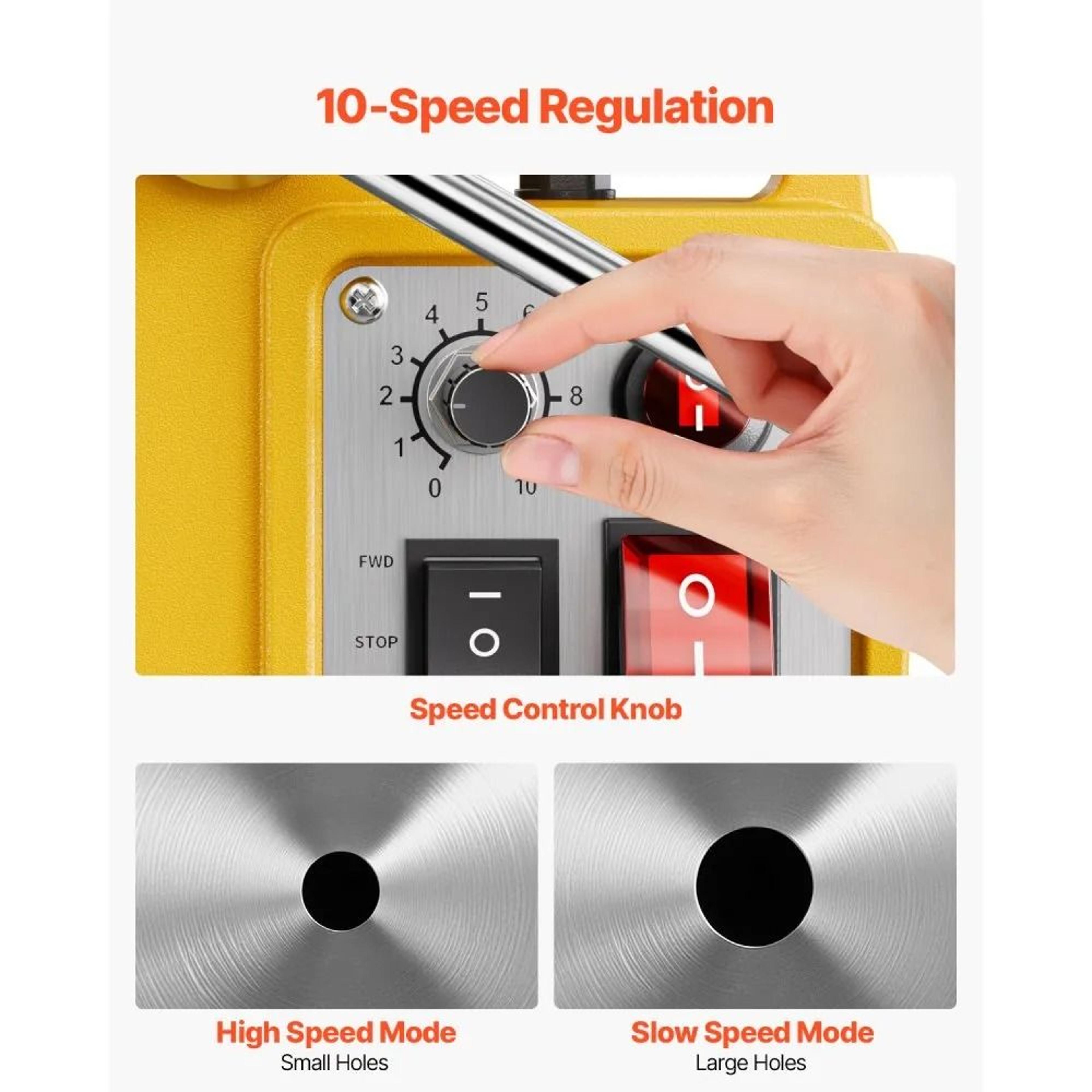

• 10 Adjustable Speed Settings: Select from 10 speed gears to accommodate different drilling diameters and improve control for precise metalworking.

• Built-In Protection: Overload protection and an efficient cooling system help manage excessive power and heat. A corrosion- and wear-resistant titanium-magnesium alloy guide rail supports long-term durability.

• User-Friendly Operation: A millimeter-marked frame scale helps position the drill accurately, while an ergonomic handle and three extended cranks provide convenient handling and control.

Specifications

• Motor Power: 1200W

• Motor Type: Copper motor

• Color: Yellow

• No-Load Speed: 0–850 RPM

• Speed Settings: 10 adjustable gears

• Maximum Magnetic Force: 2,810 lbf (12,500 N)

• Maximum Coring Diameter: 1.6 inches (40 mm)

• Maximum Coring Depth: 2 inches (50 mm)

• Shank Type: 3/4-inch (19.05 mm) Weldon shank

• Guide Rail Material: Titanium-magnesium alloy

• Minimum Steel Plate Thickness: 0.39 inches (10 mm)

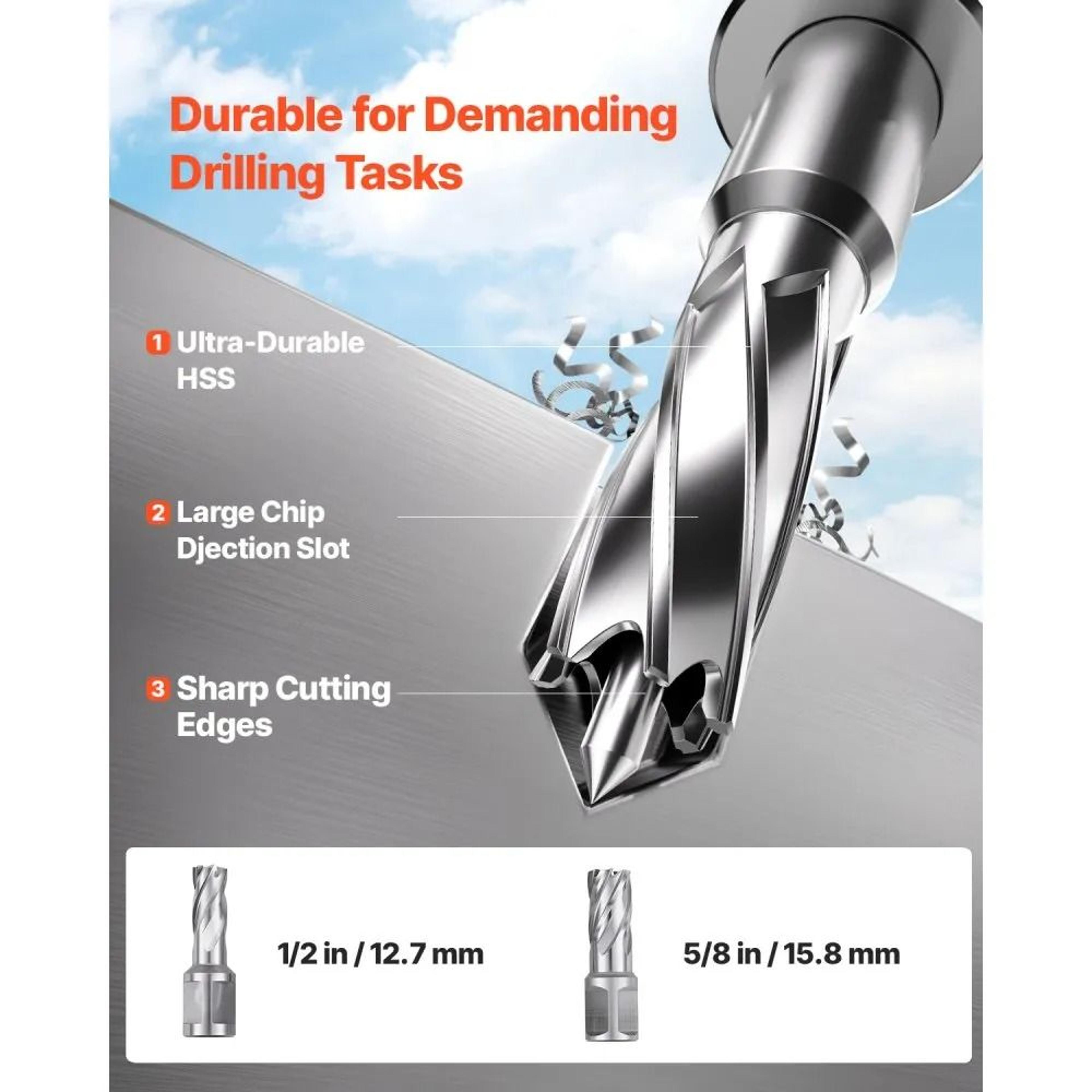

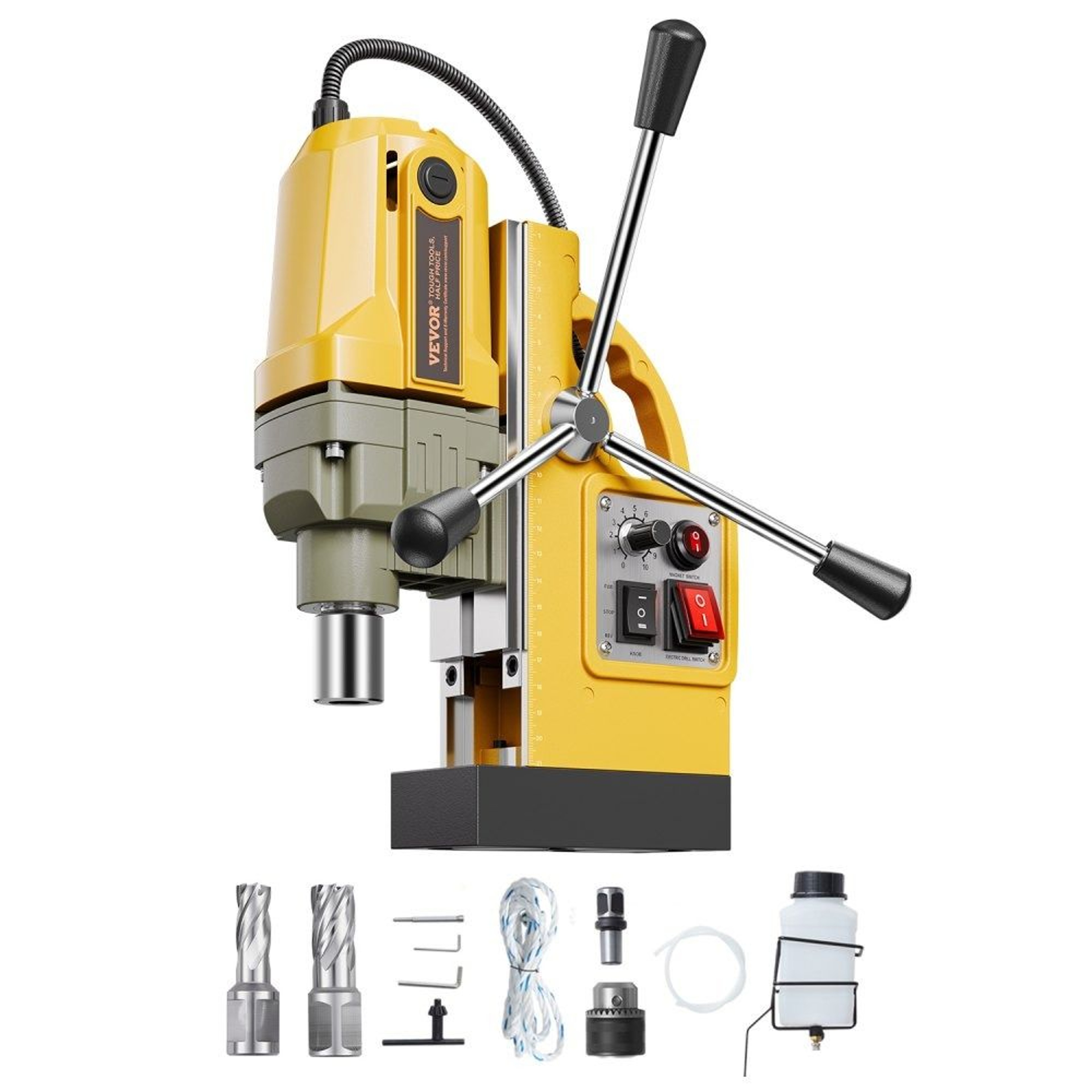

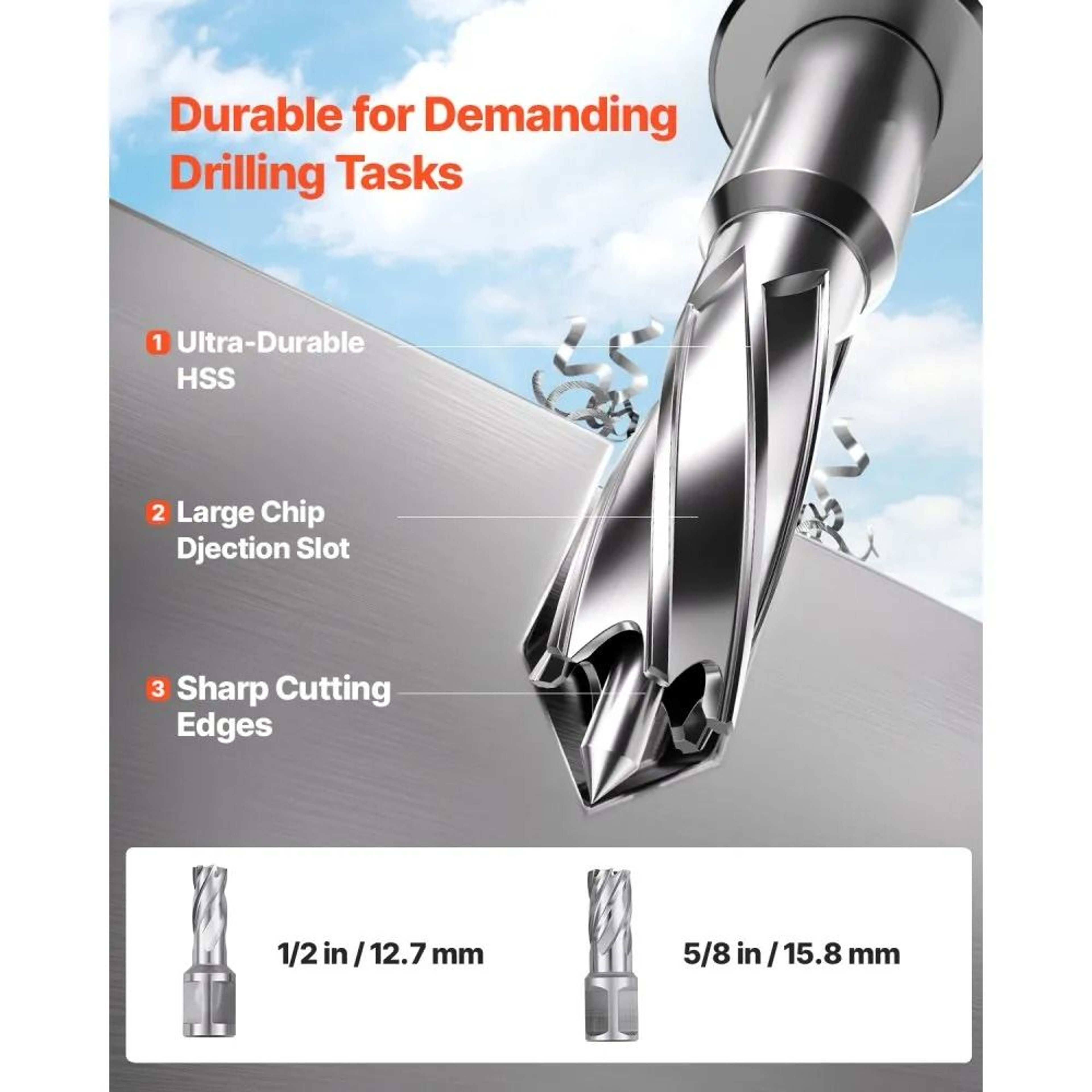

• Included Accessories: 2 coring bits

• Applications: Steel fabrication, equipment installation, shipbuilding, bridge construction, railway manufacturing, and industrial projects

• Material Limitations: Not suitable for stainless steel or cast iron

• Safety Guidance: Use a safety rope during horizontal or inverted drilling.

Equip your workspace with a versatile magnetic drill press built for controlled, efficient drilling on suitable steel surfaces.
