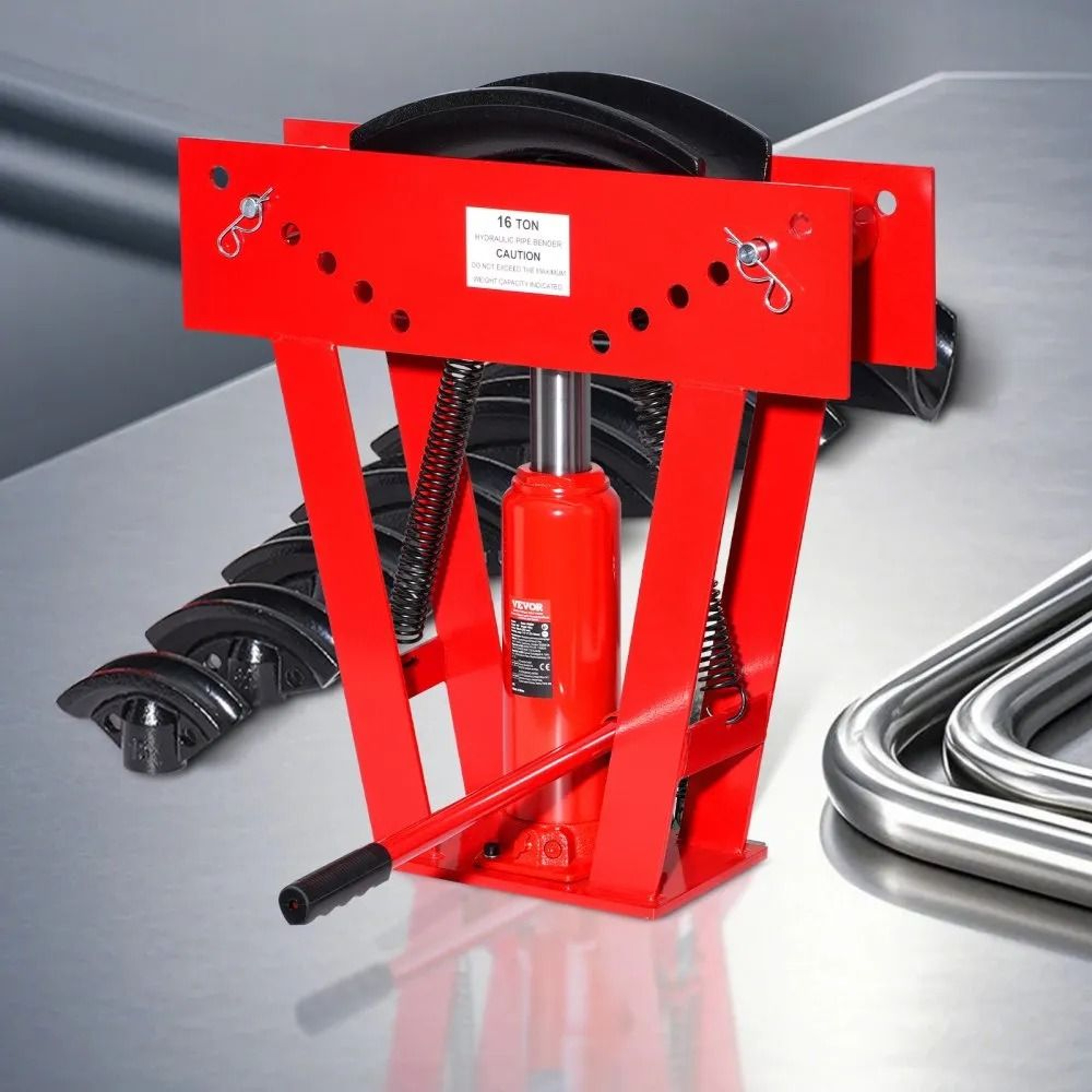

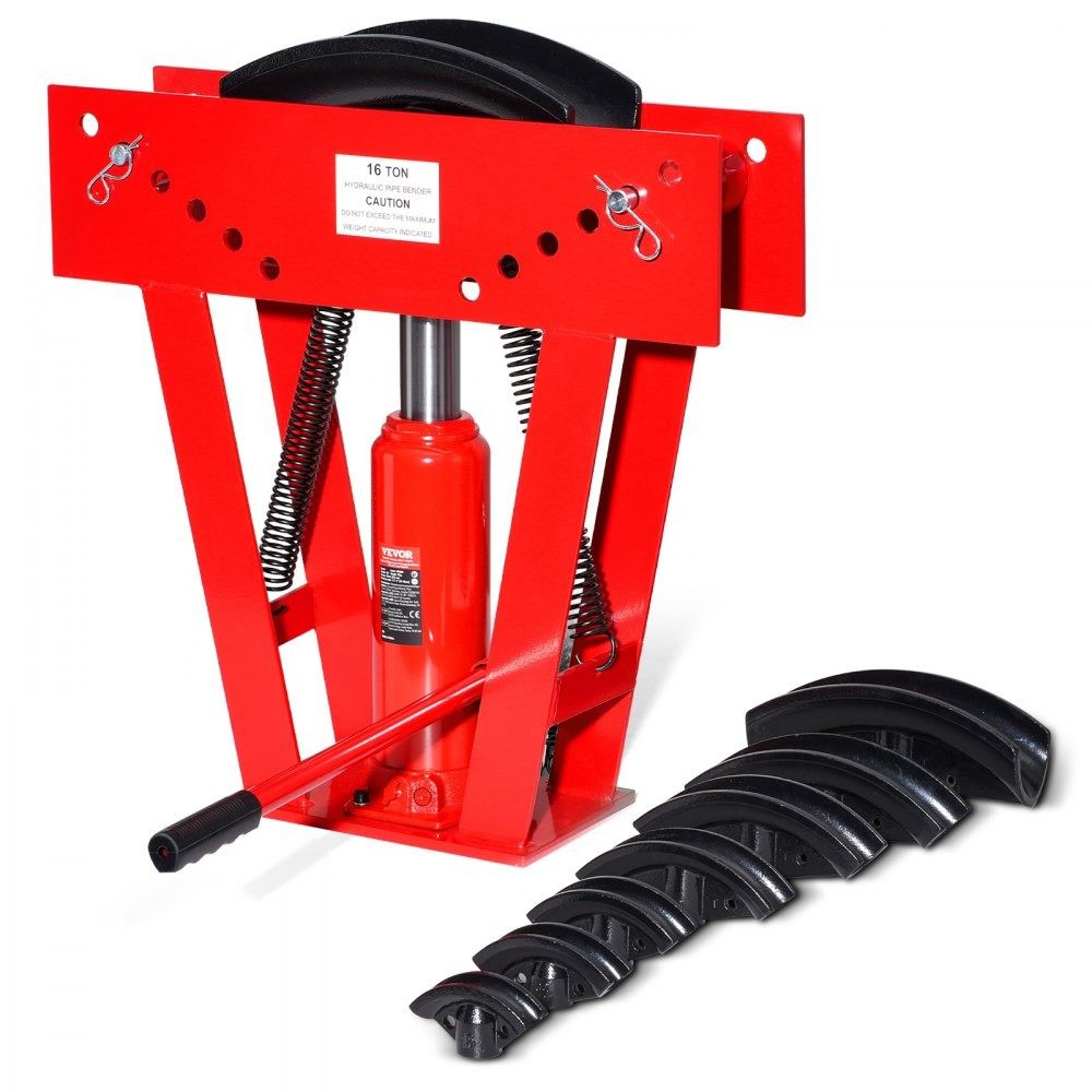

16 Ton Hydraulic Pipe Bender with 8 Dies and Adjustable Bending Rollers

This hydraulic pipe bender delivers 16 tons of bending force for pipe and tube bending tasks. It includes eight dies covering 1/2 to 3 in pipe sizes and adjustable rollers with six positions for 90°–180° bending. The steel construction and hydraulic return spring system support efficient manual operation. Designed for piping railing and construction applications, this manual tube bender allows controlled bending with a lever-operated hydraulic system. Pipes should be bent gradually in sections rather than bent to 90° in one step.

Key Features

• 16 Ton Hydraulic Force: Provides powerful manual bending performance for supported pipe sizes.

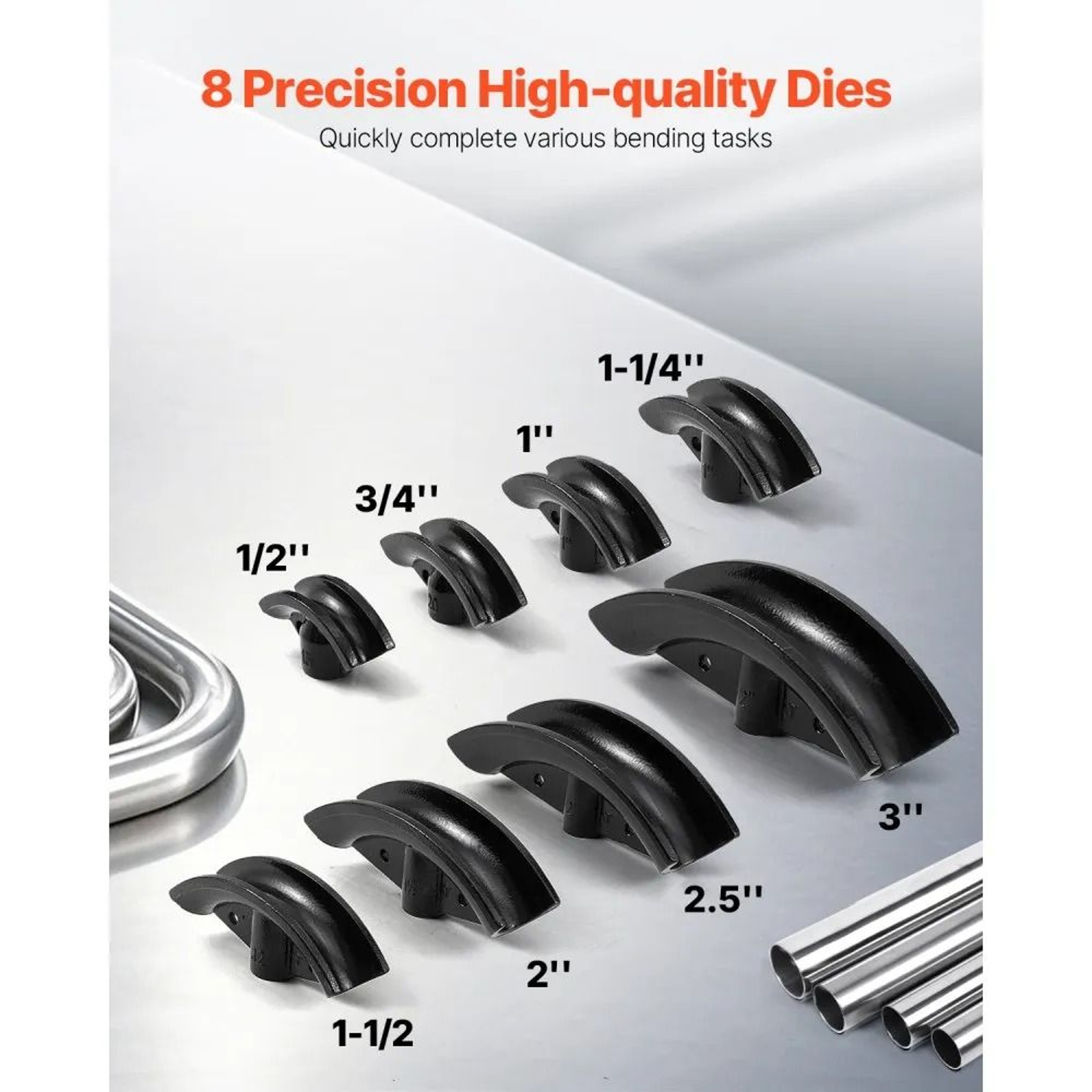

• 8 Precision Casting Dies: Includes 1/2 in, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 2.5 in, and 3 in dies.
• Adjustable Bending Rollers: Six positions on both sides support bending angles from 90° to 180°.
• Steel Construction: Solid structure provides wear resistance for demanding bending tasks.
• Hydraulic Return Spring System: Helps streamline repeated pipe bending operation.

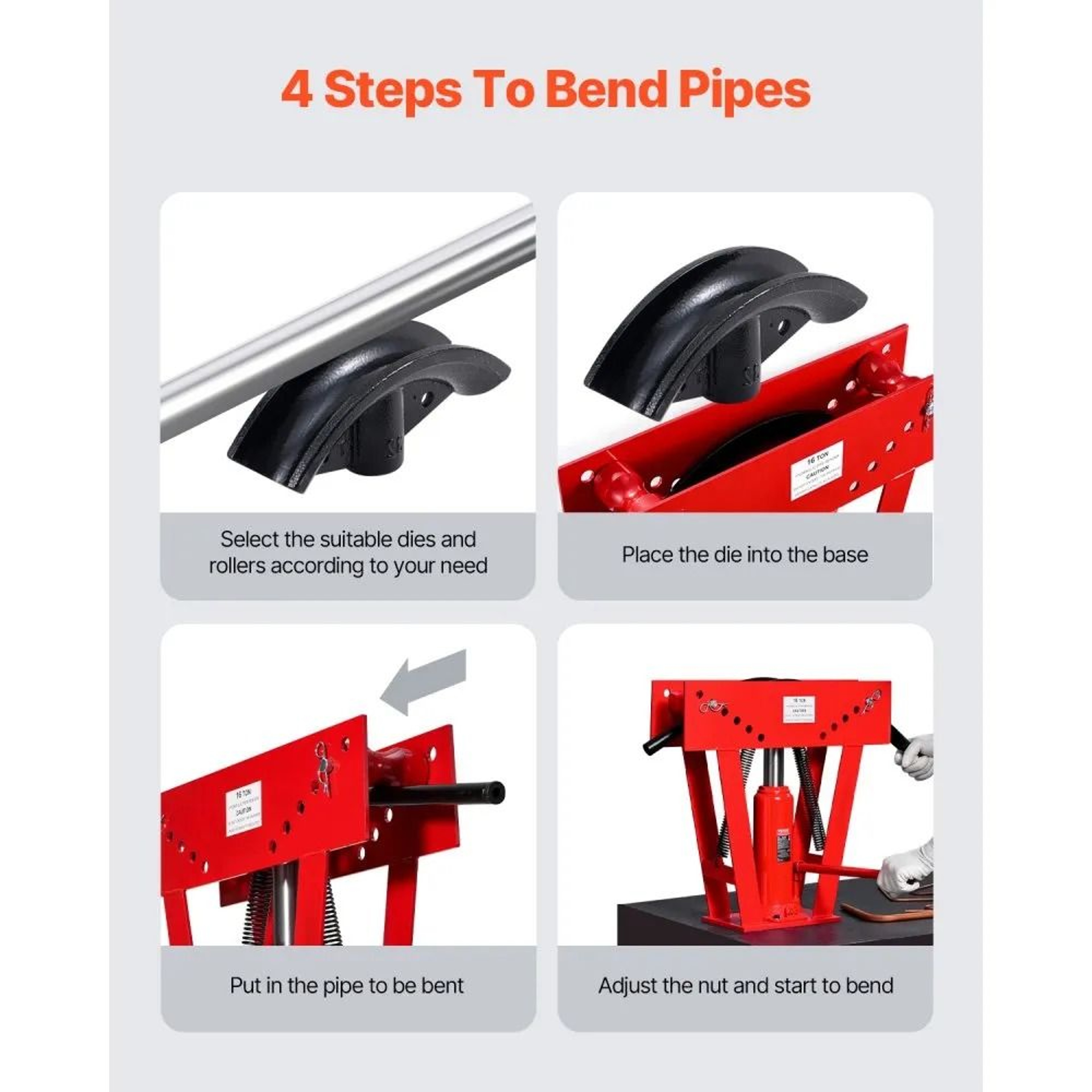

• Simple Lever Operation: Install the correct die, position the pipe and rollers, then operate the lever to bend gradually.

Specifications

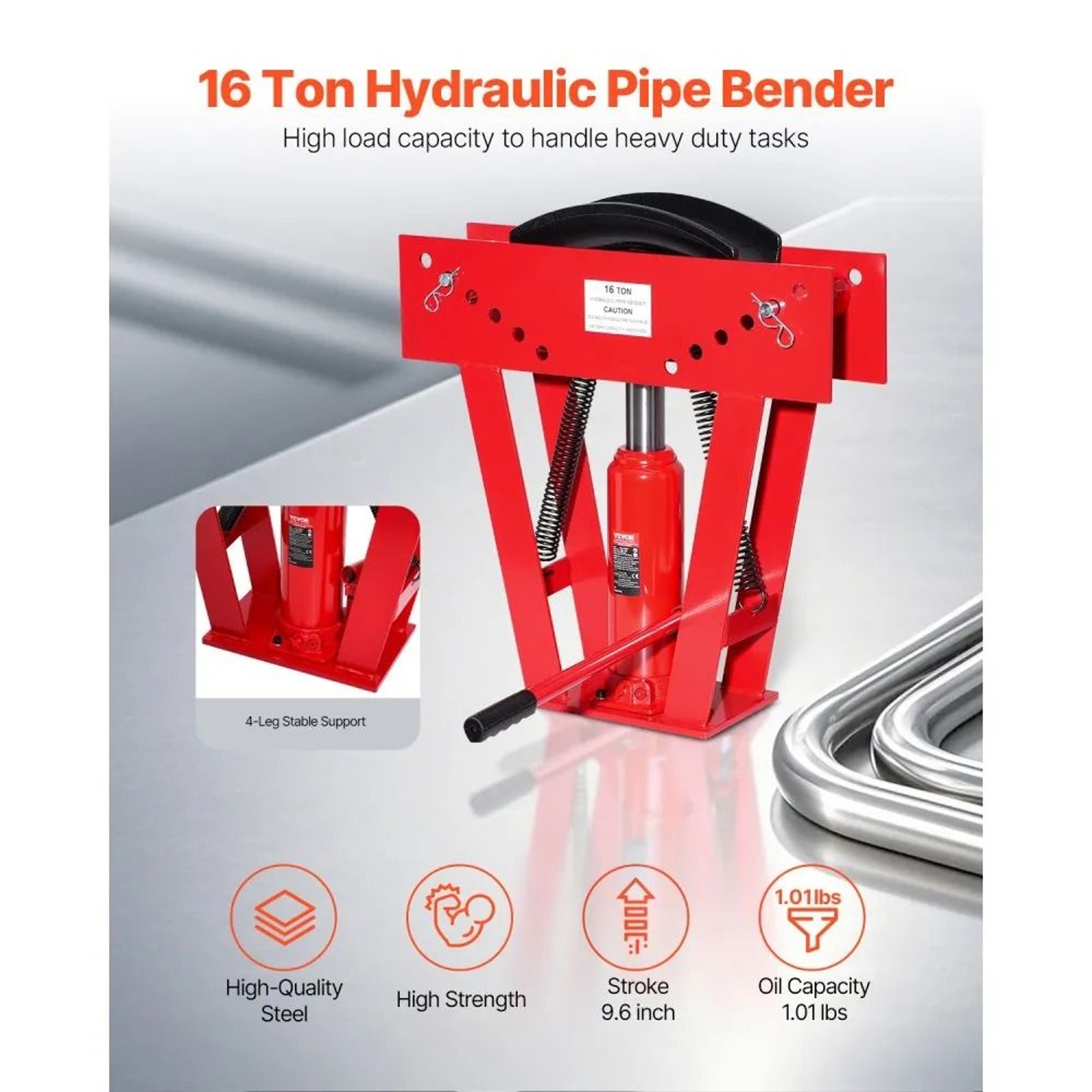

• Bending Force: 16 ton
• Stroke: 10 in (253 mm)

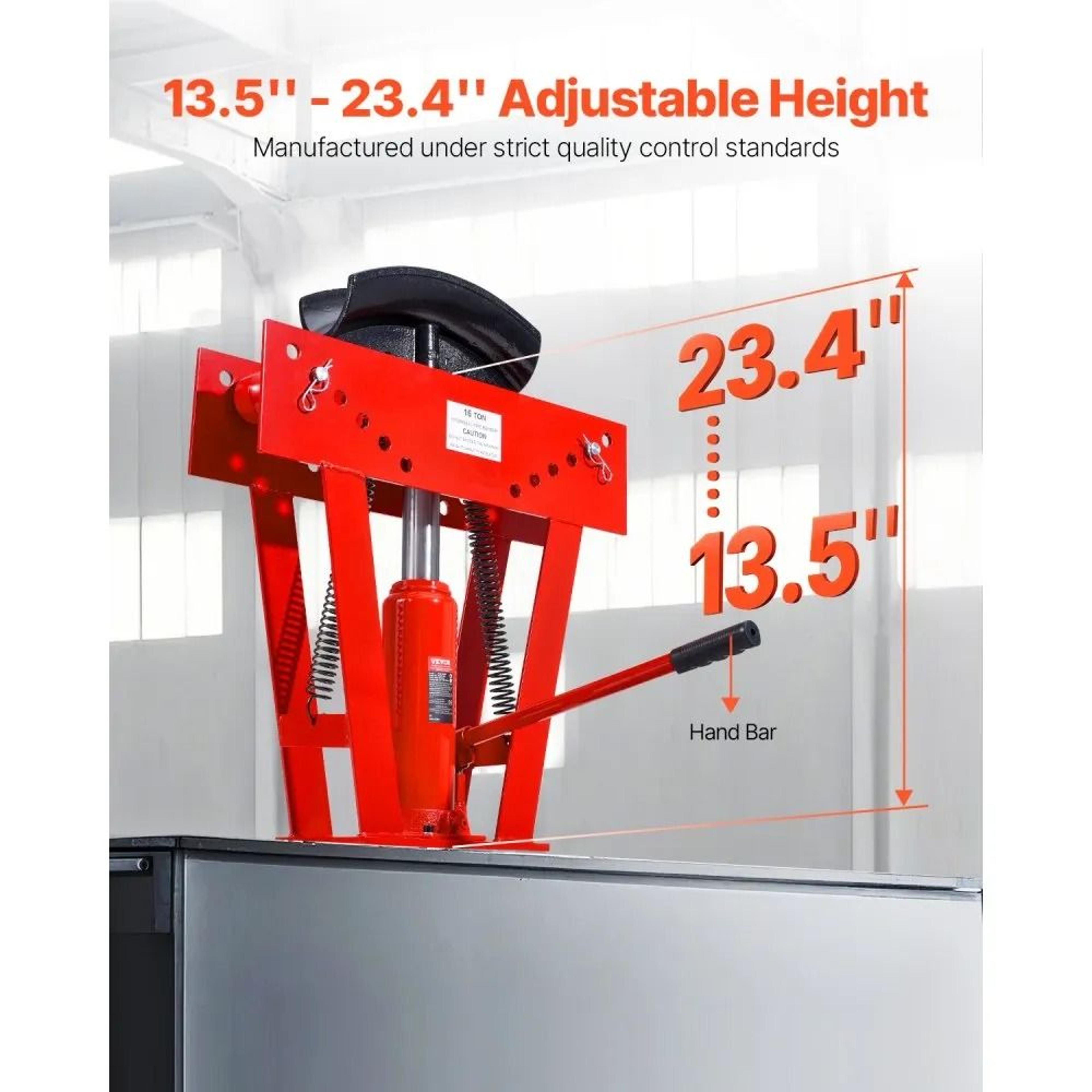

• Adjustable Height: 13.5–23.4 in (342–595 mm)

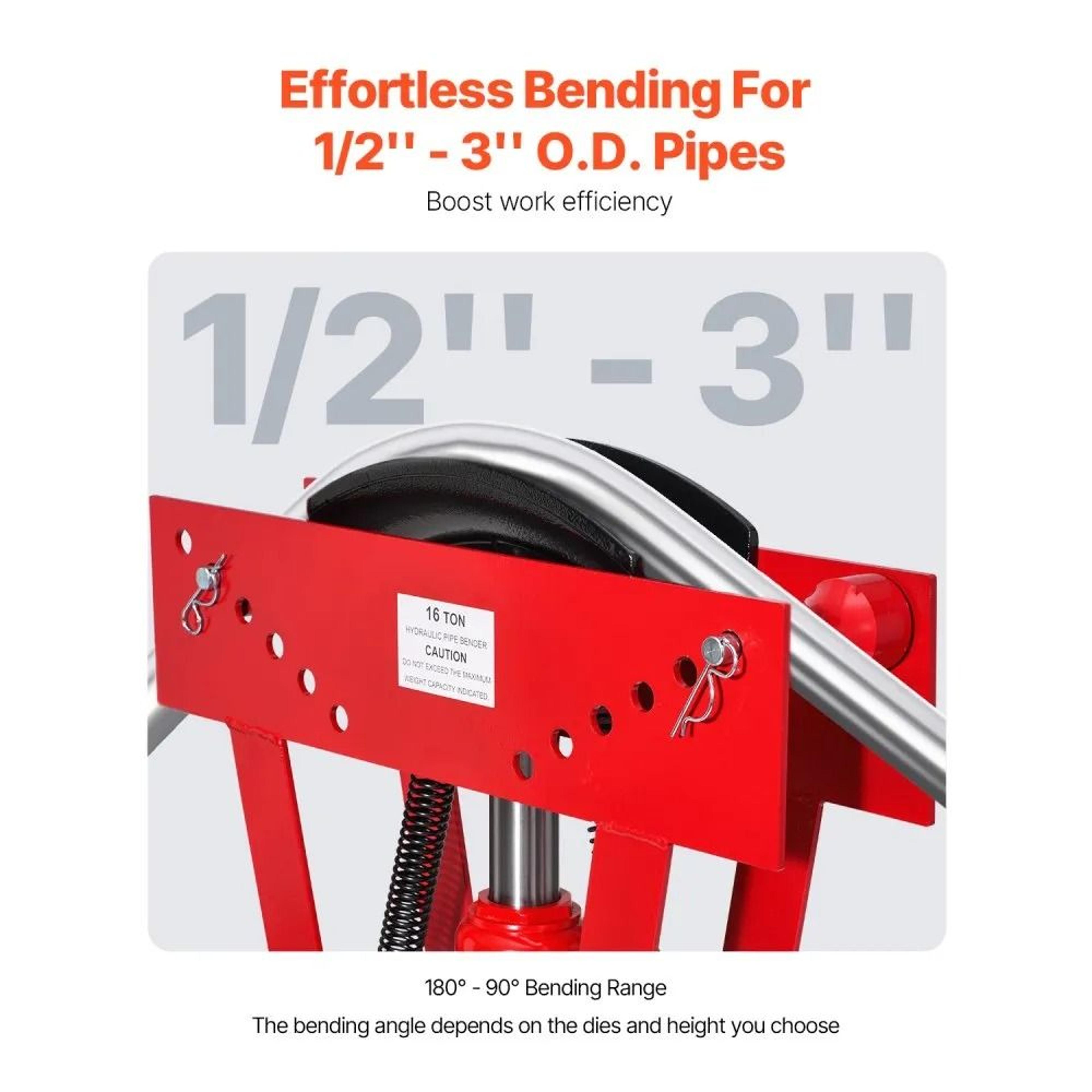

• Bending Range: 1/2–3 in (13–76 mm)
• Oil Capacity: 1.01 lb (460 g)
• Number of Dies: 8
• Net Weight: 107.9 lb (49 kg)
• Material: Steel
• Size / Dimensions: 23.6 x 7.1 x 22.6 in (600 x 180 x 575 mm)

Why Choose Our 16 Ton Hydraulic Pipe Bender with 8 Dies and Adjustable Bending Rollers

This pipe bending machine combines a 16-ton hydraulic system with eight die sizes and adjustable roller positions for versatile bending work. Its steel construction and straightforward lever operation provide a practical setup for controlled pipe bending.

Perfect For

Suitable for verified piping, railing, construction and exhaust pipe bending applications within the specified 1/2–3 in range.

Handle Pipe Bending with More Control

Choose this heavy-duty pipe bender for adjustable bending angles, multiple die sizes and a hydraulic system designed to make manual pipe shaping more efficient.
