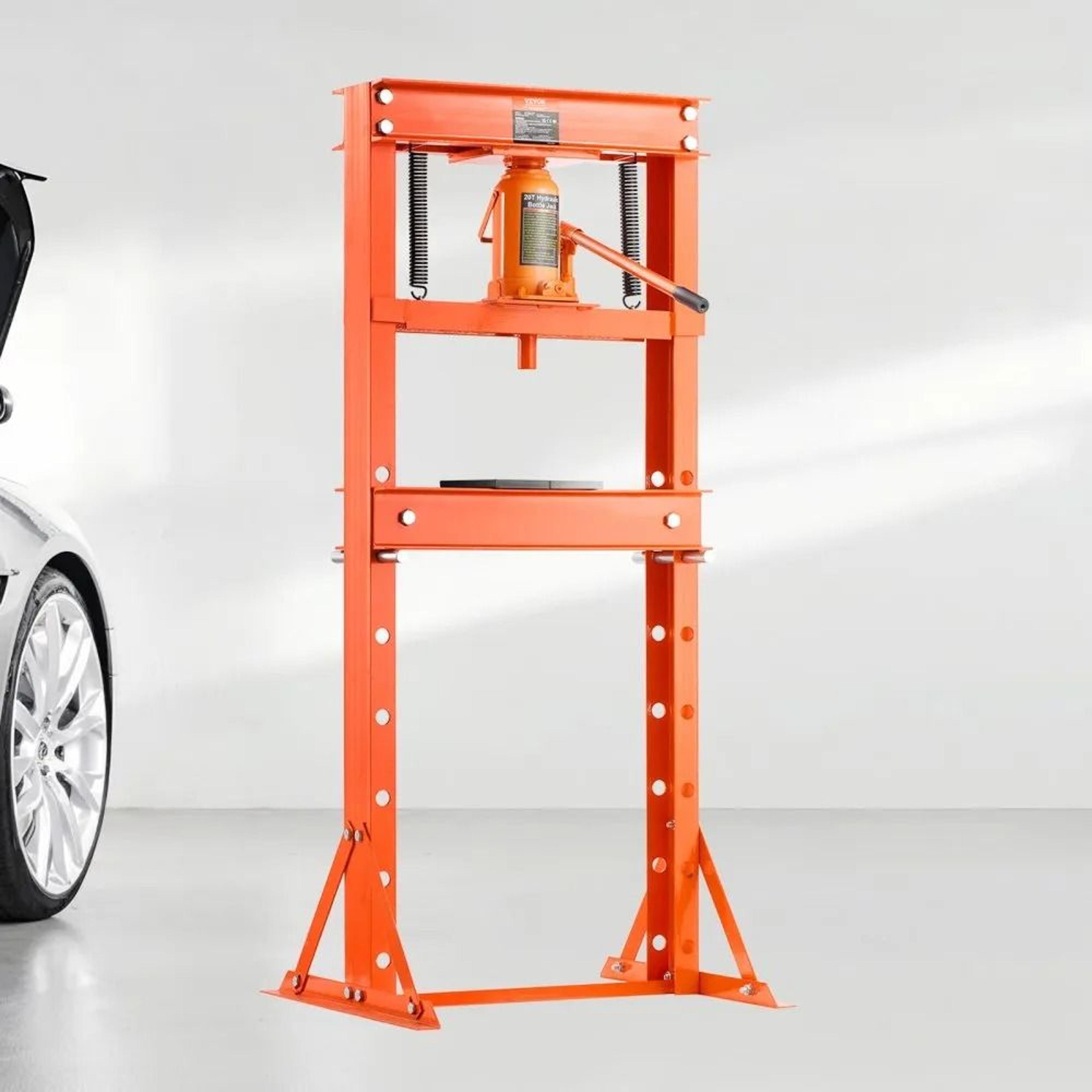

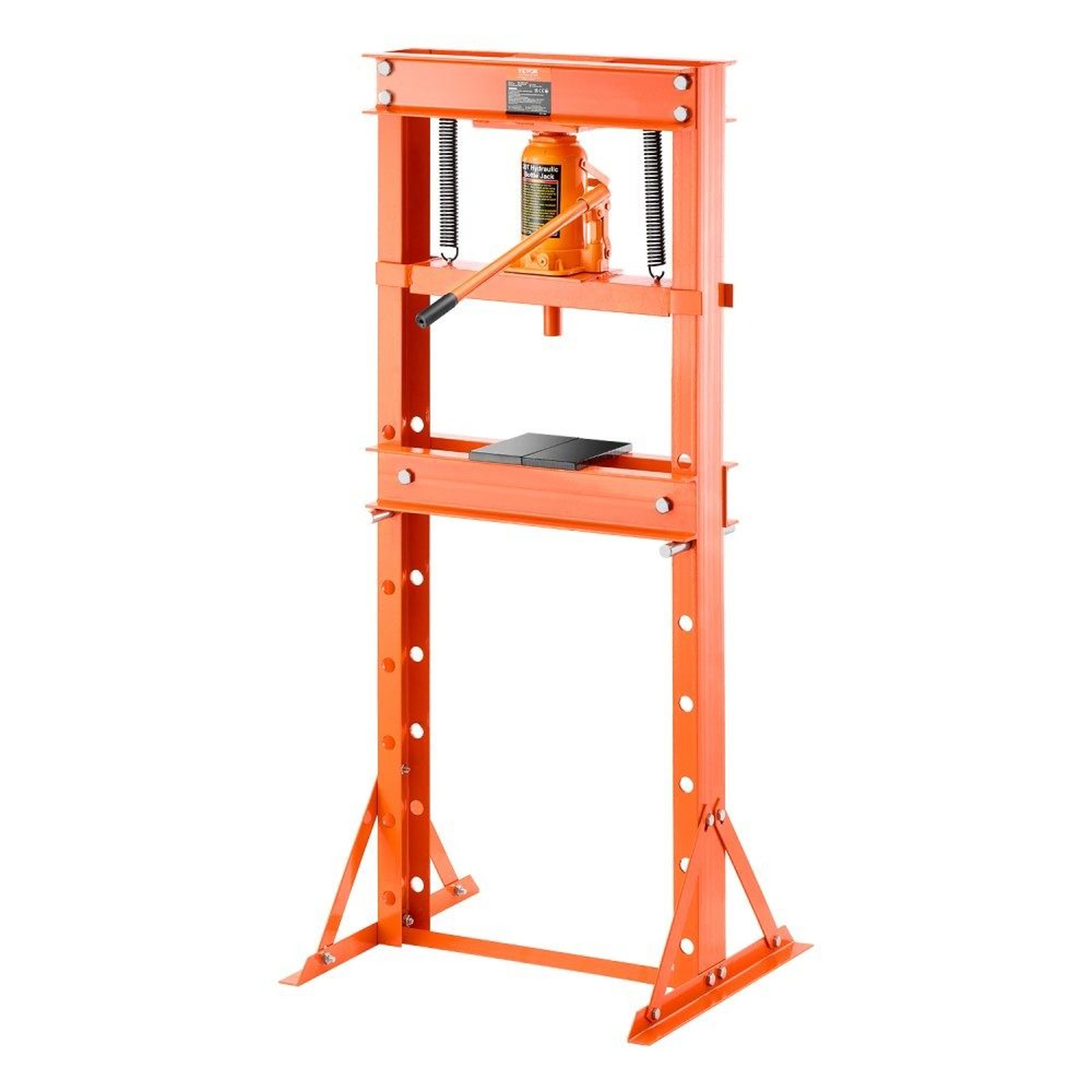

20 Ton Hydraulic Shop Press with Adjustable H-Frame and Reinforced Steel Base

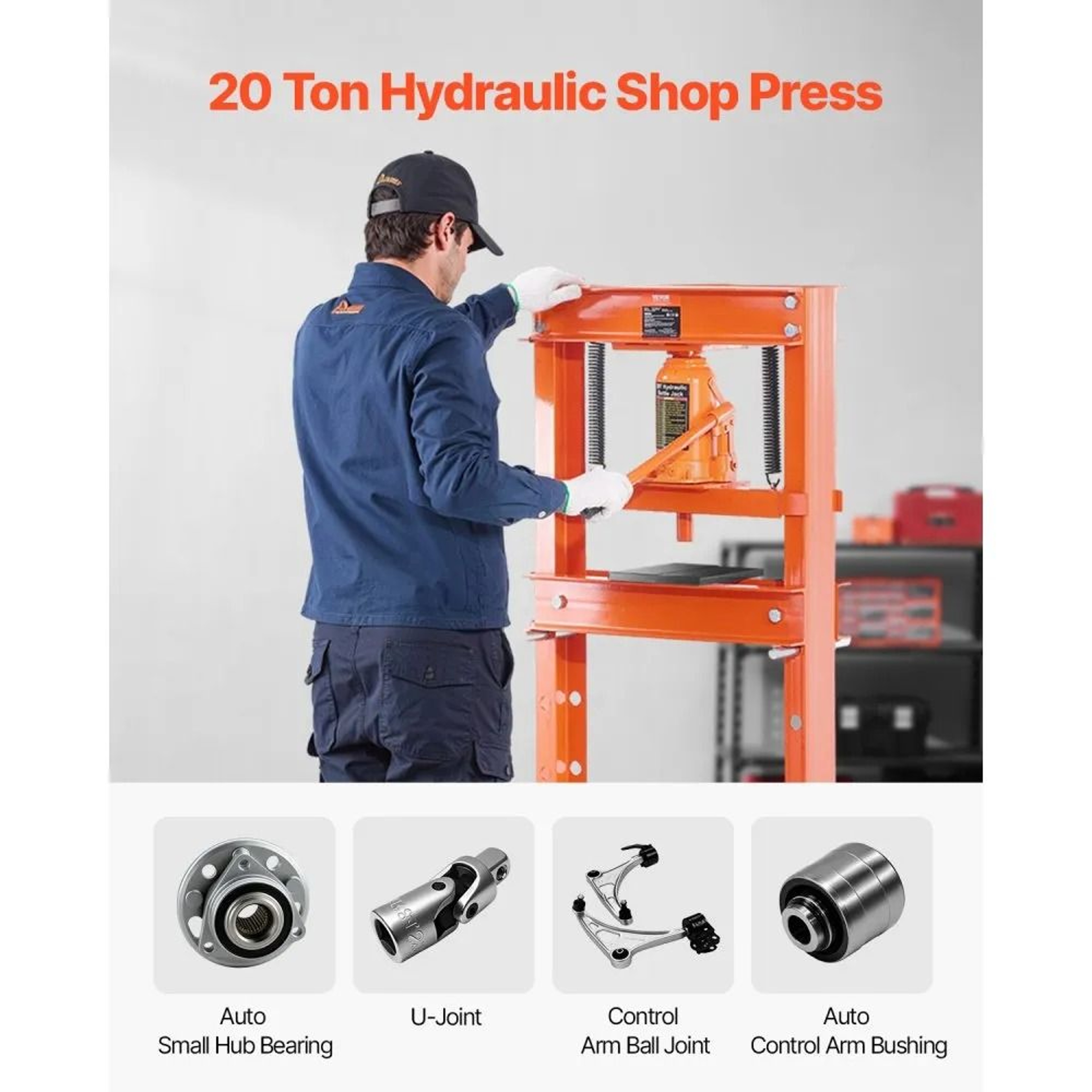

Handle demanding automotive repairs and metalworking projects with this 20 ton hydraulic shop press. Built with a heavy-duty steel H-frame and reinforced triangular supports, it provides a stable workstation for removing and installing bushings, ball joints, and U-joints. Its adjustable worktable and hydraulic pressure system also make it suitable for bending, straightening, and stamping metal components in garages and workshops.

Key Features

• 20 Ton Pressing Capacity: Delivers powerful hydraulic pressure for automotive component installation and removal, metal straightening, bending, and stamping tasks.

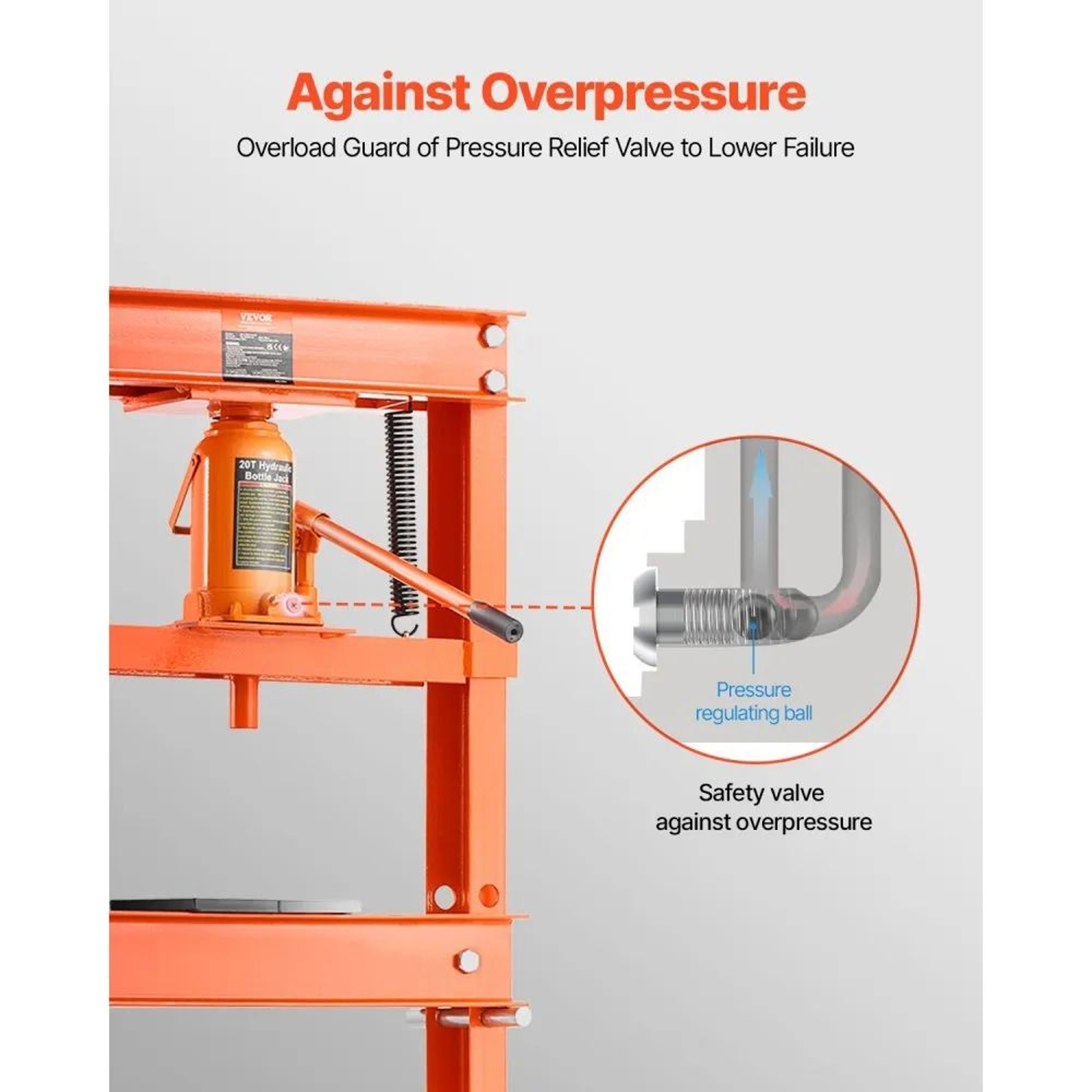

• Pressure Relief Safety Valve: Features a built-in regulator valve designed to prevent further lowering when pressure exceeds the rated capacity, helping reduce the risk of overloading and equipment damage.

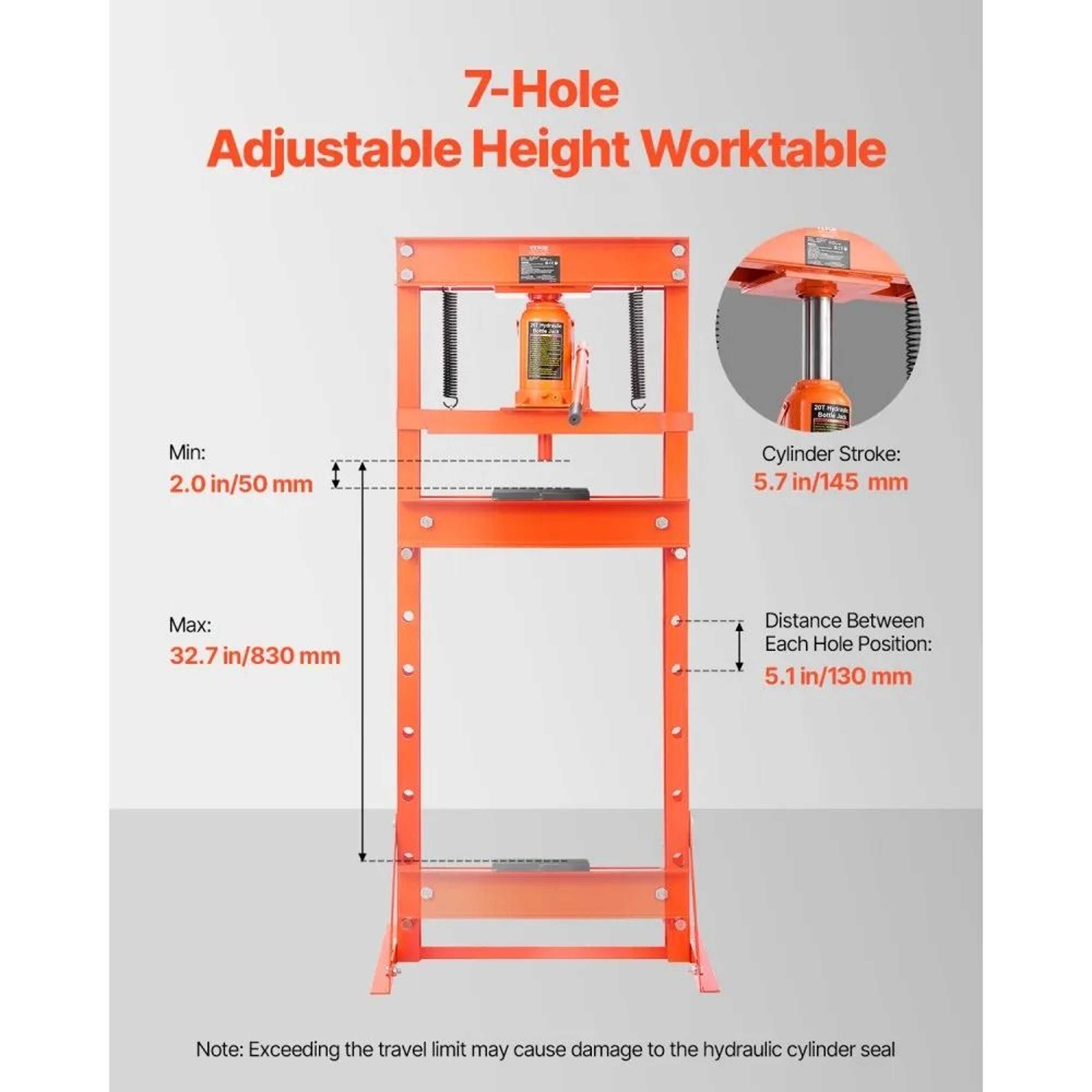

• 7 Adjustable Height Positions: The quick-adjust pin system allows worktable height adjustments from 2.0 to 32.7 inches (50–830 mm), accommodating different component sizes and working positions.

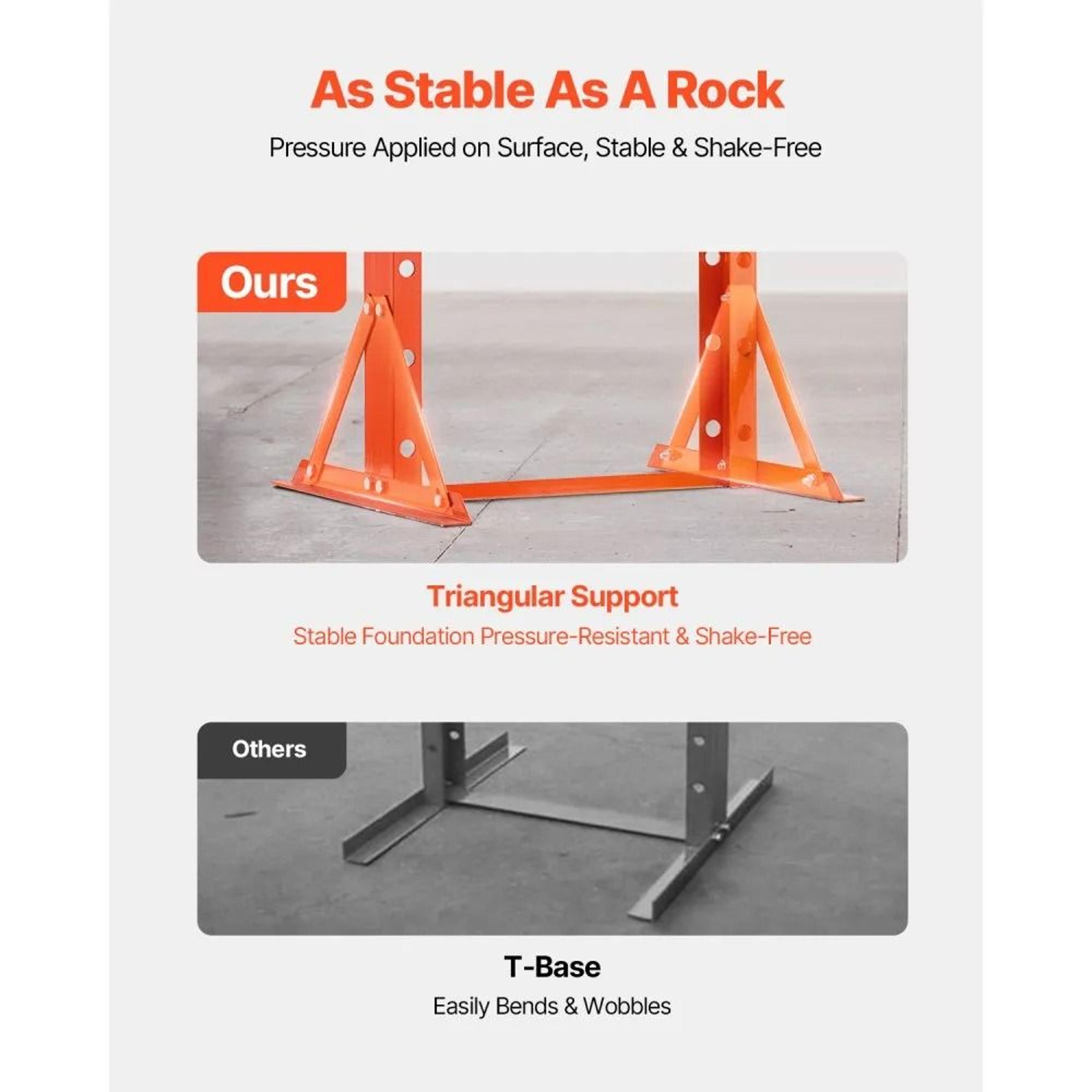

• Reinforced H-Frame Design: Triangular base supports work with the H-shaped frame to improve stability and minimize wobbling during pressing operations.

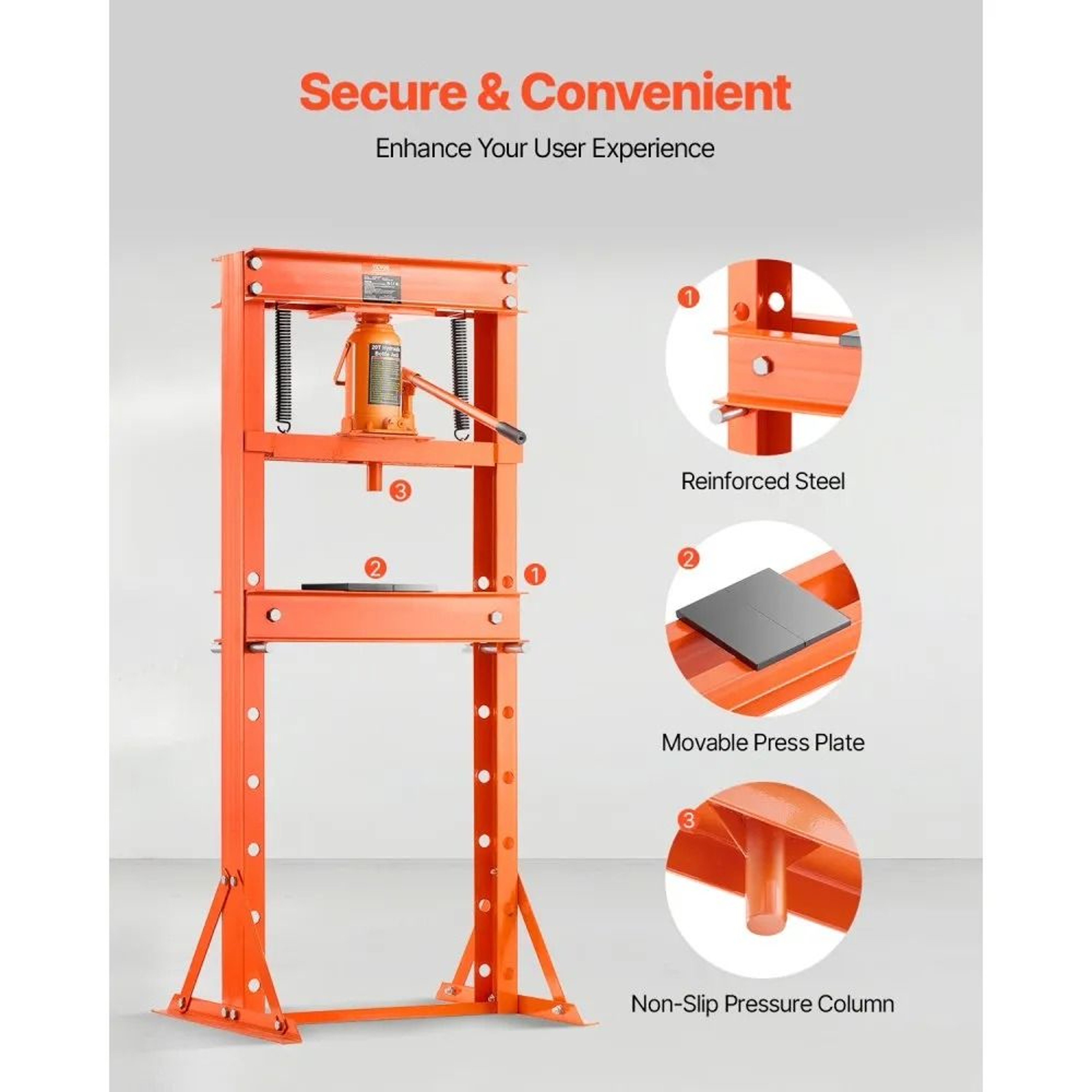

• Heavy-Duty Steel Construction: Thickened steel framing provides structural strength, while the large-diameter pressure column helps minimize slipping during use.

Specifications

• Product Type: Hydraulic H-frame shop press

• Material: Thickened steel

• Rated Load Capacity: 20 tons (20T)

• Dimensions: 26.9 × 23.4 × 58.9 inches (682 × 595 × 1496 mm)

• Cylinder Stroke: 5.7 inches (145 mm)

• Adjustable Worktable Height: 2.0–32.7 inches (50–830 mm)

• Height Settings: 7 positions

• Net Weight: 152.6 lbs (69.25 kg), including accessories

• Frame Design: H-shaped frame with triangular base reinforcement

• Safety Feature: Hydraulic pressure regulator valve

• Applications: Automotive bushing, ball joint, and U-joint installation or removal; metal bending, straightening, and stamping

Equip your garage or workshop with a versatile hydraulic press designed for stable operation, adjustable positioning, and demanding repair tasks.
