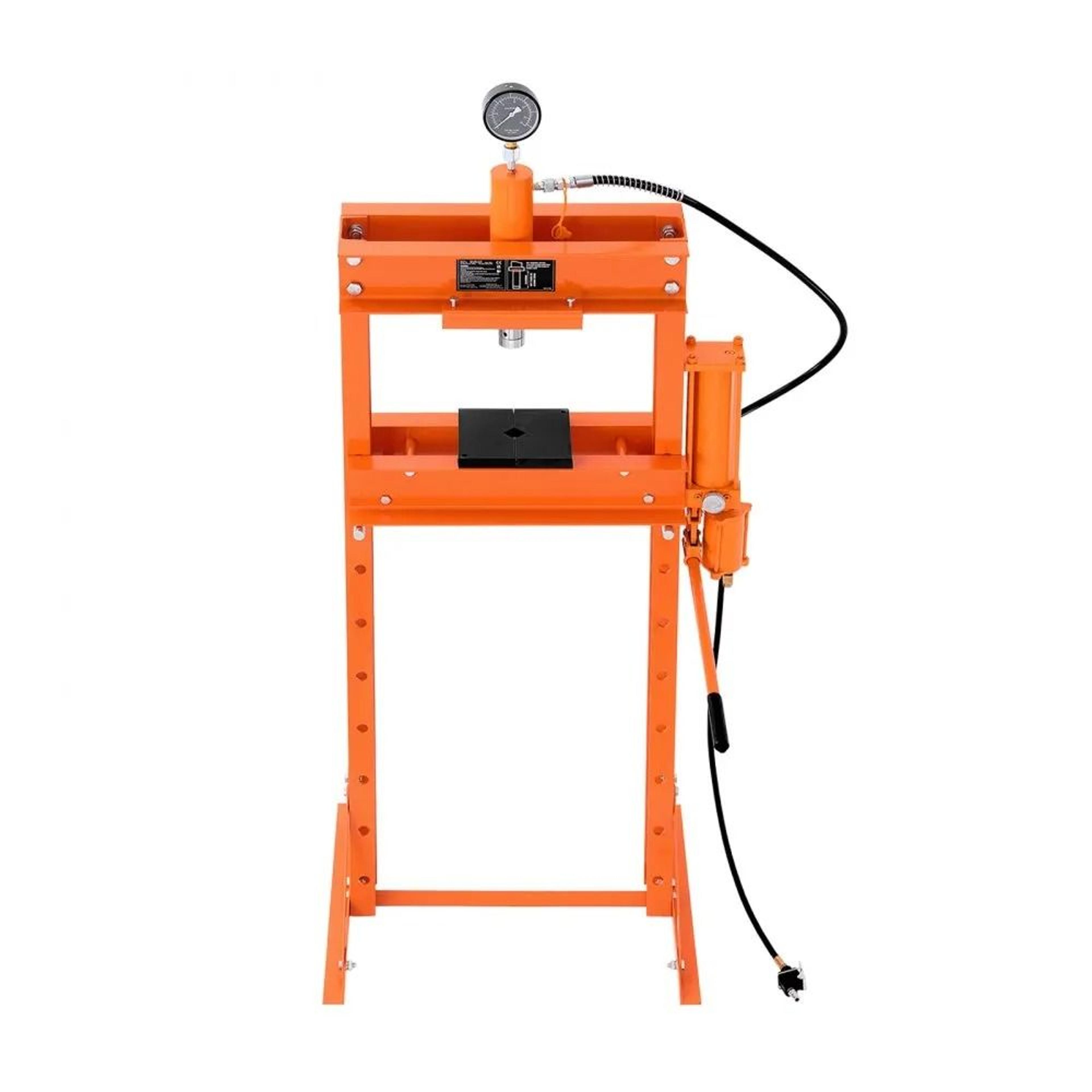

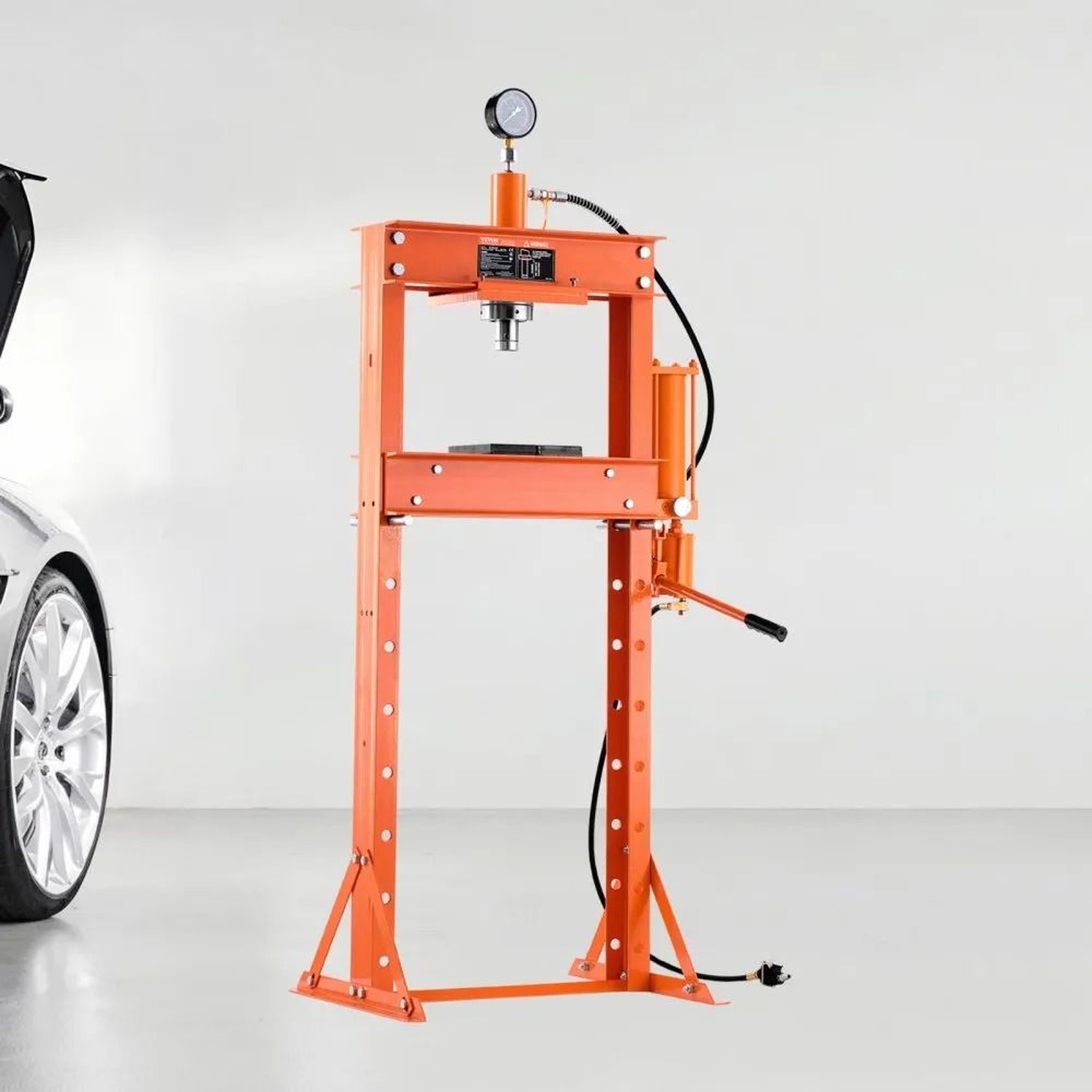

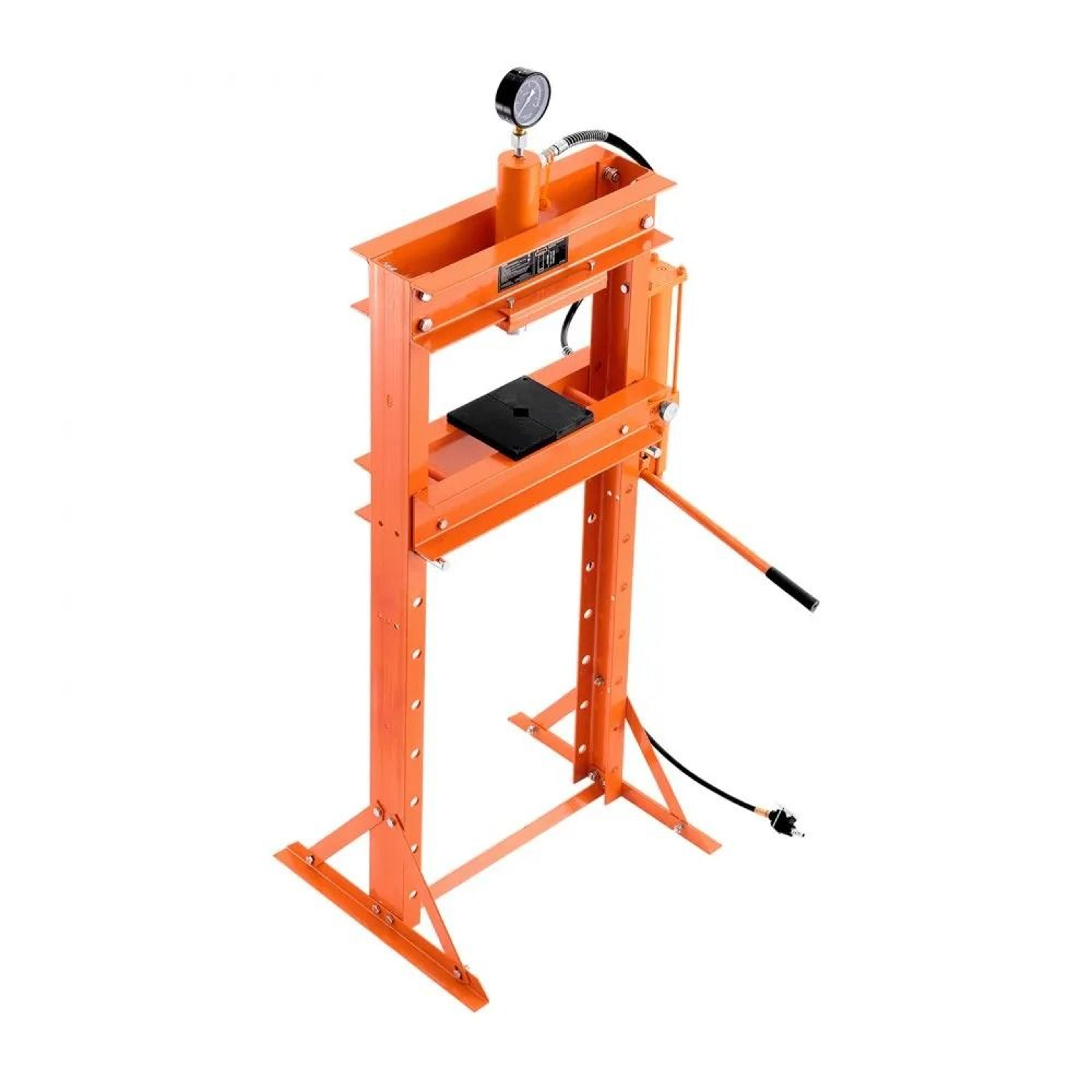

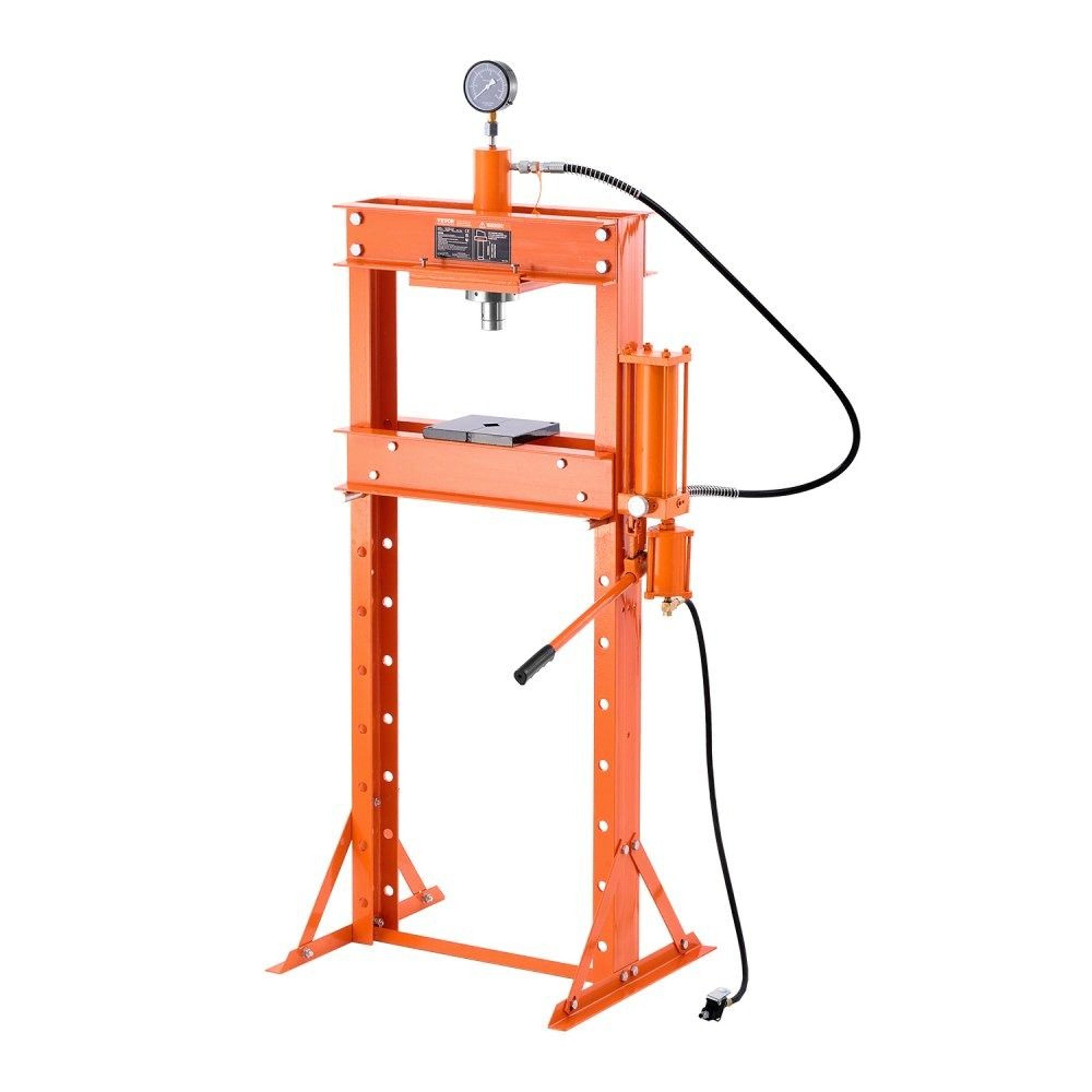

20 Ton Hydraulic Shop Press with Pneumatic Assist and Adjustable H-Frame

Handle demanding automotive repairs and metalworking tasks with this 20 ton hydraulic shop press. Featuring a heavy-duty steel H-frame, pneumatic assist pump, and adjustable worktable, it provides controlled pressing force for removing and installing bushings, ball joints, and U-joints. Designed for professional workshops and home garages, this floor-standing press also supports metal bending, straightening, and stamping.

Key Features

• 20 Ton Pressing Capacity: Delivers powerful hydraulic force for automotive component removal, installation, and metalworking applications.

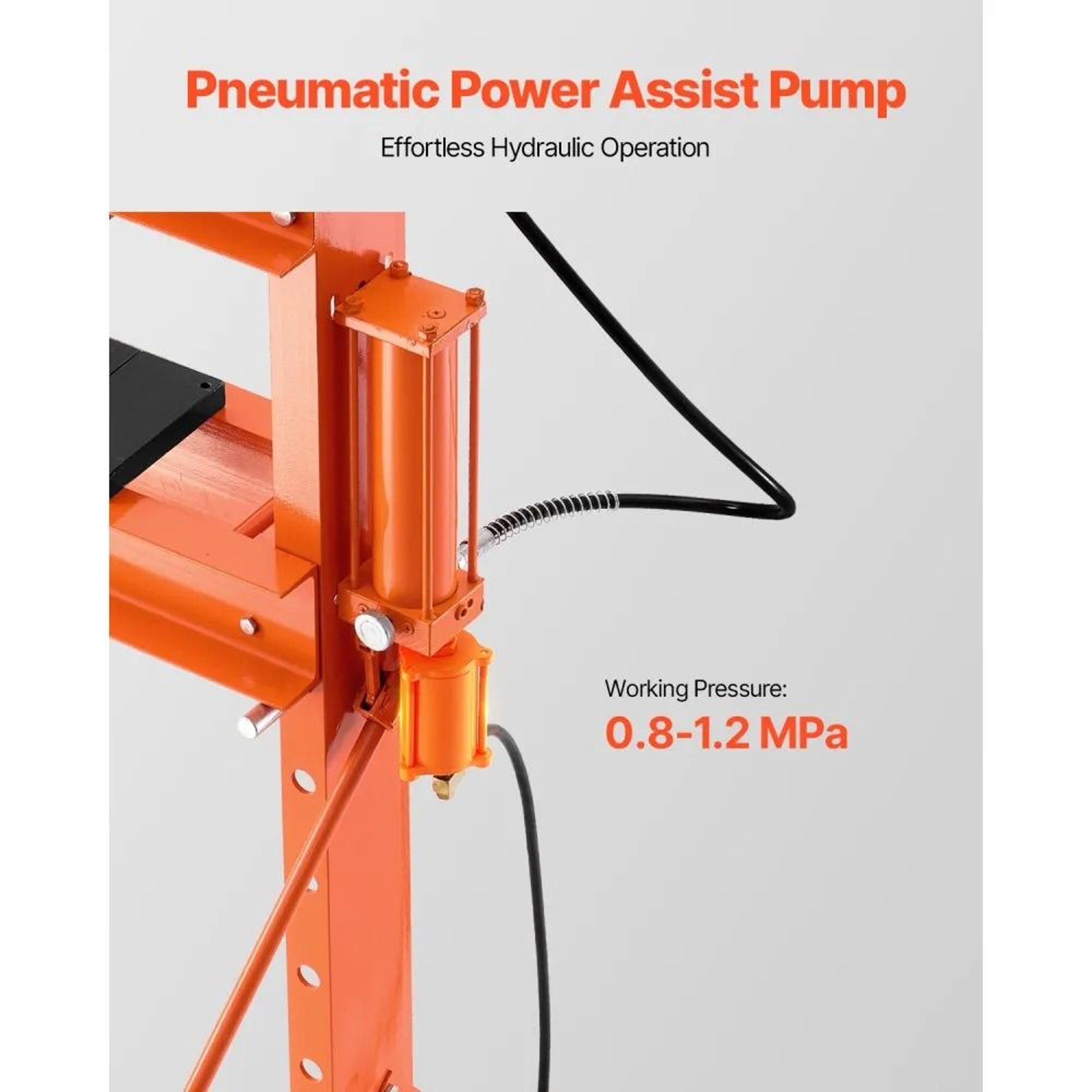

• Hydraulic and Pneumatic Operation: Features a pneumatic assist pump with a quick connector for attaching an air compressor, reducing manual effort during demanding pressing tasks.

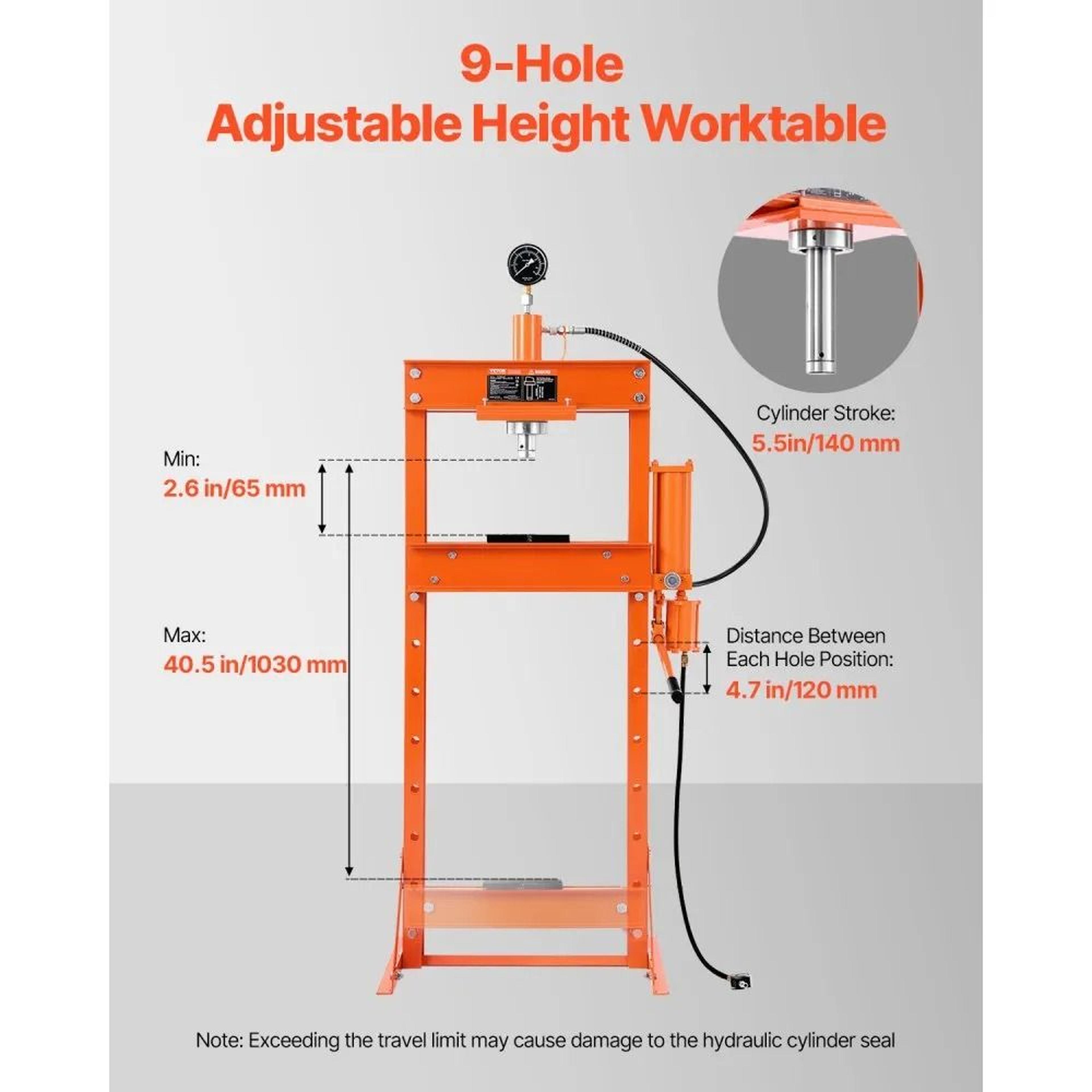

• 9 Adjustable Height Settings: The quick-adjust pin system allows you to position the worktable between 2.6 and 40.5 inches (65–1030 mm) to accommodate different workpieces.

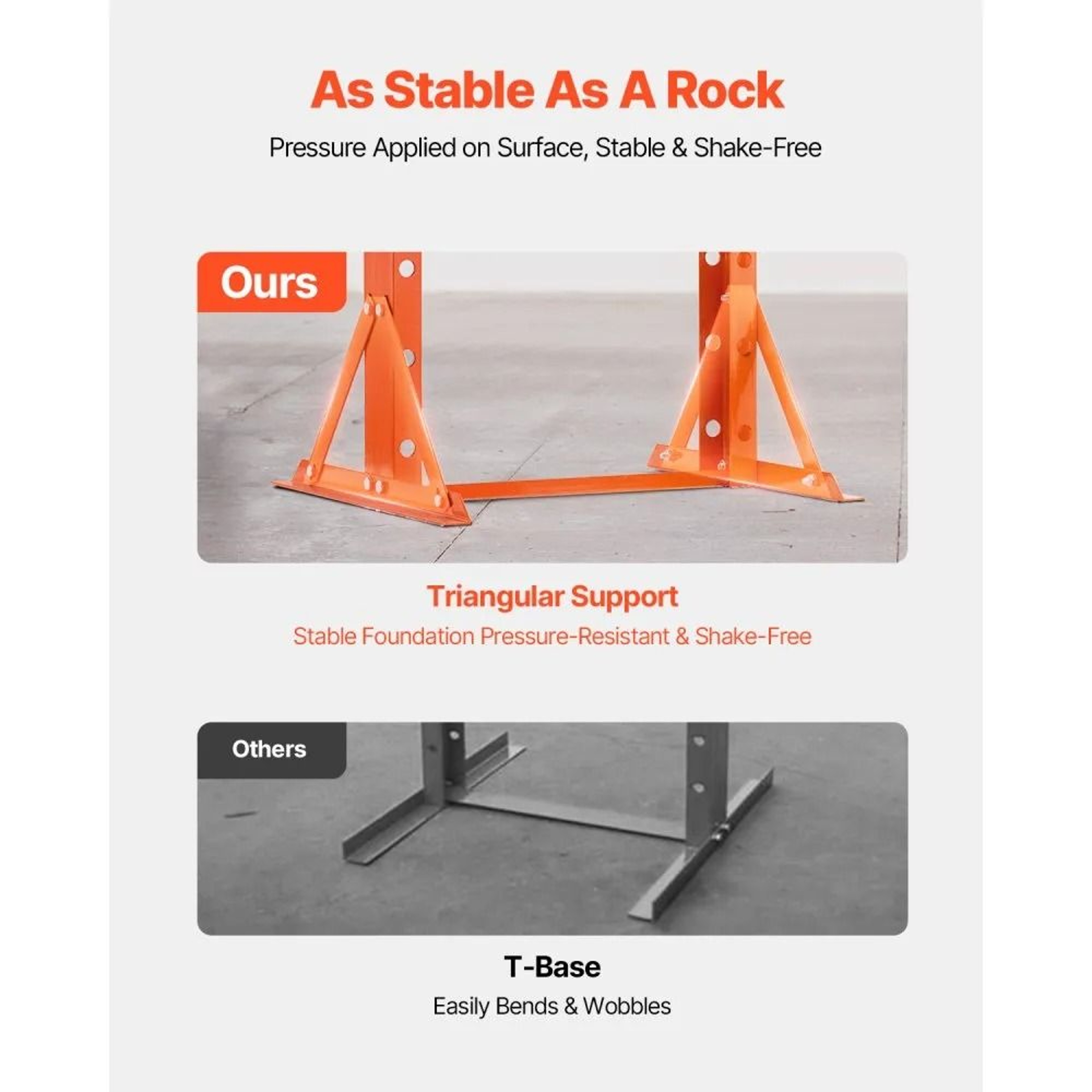

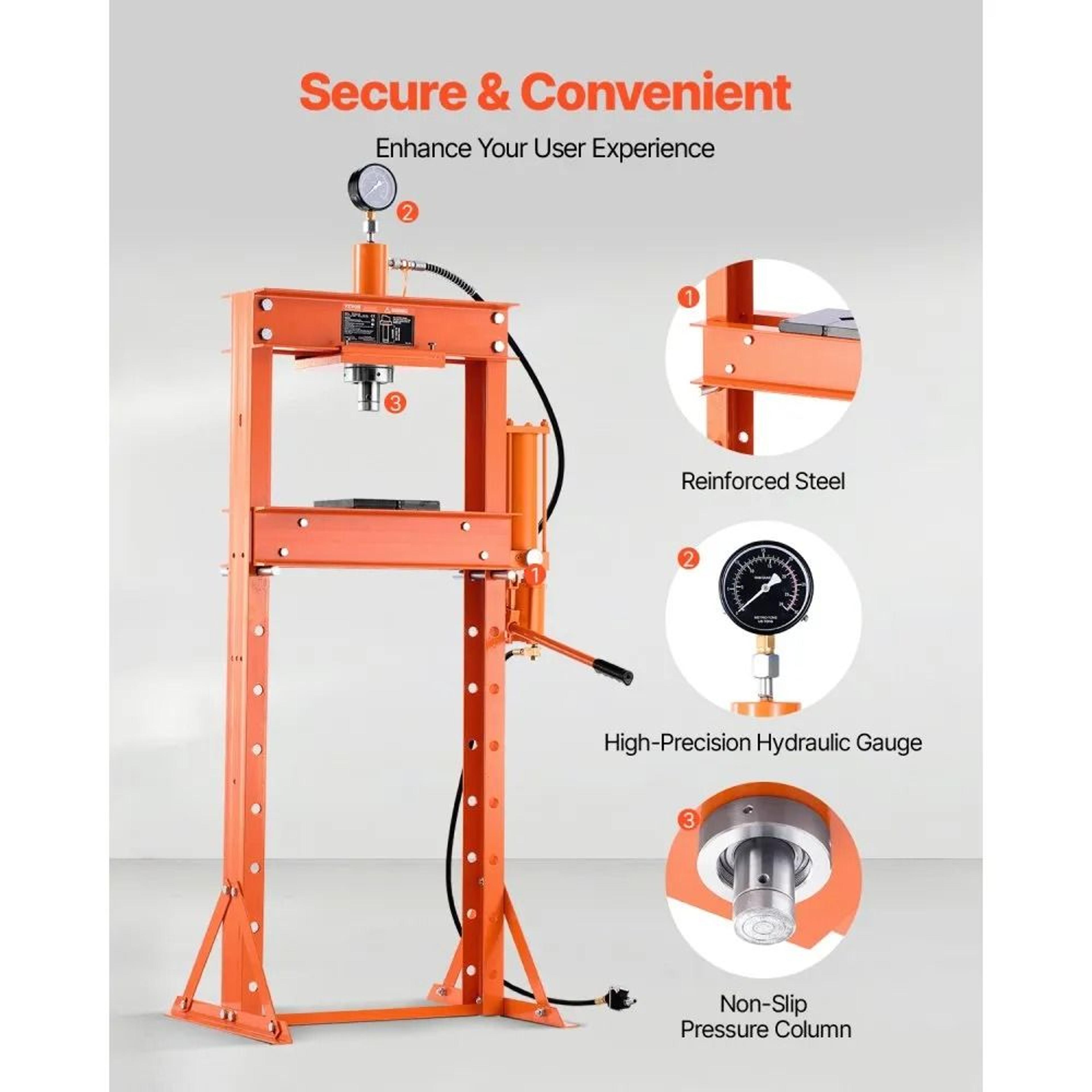

• Reinforced H-Frame Design: A triangular support brace strengthens the base and helps minimize wobbling, providing a stable working platform during pressing operations.

• Heavy-Duty Steel Construction: Thickened steel framing enhances structural durability, while the large-diameter pressure column helps reduce slipping during operation.

Specifications

• Product Type: Hydraulic and pneumatic shop press

• Model Number: ZX0901

• Rated Capacity: 20 tons (20T)

• Frame Material: Thickened steel

• Frame Design: H-frame with triangular base reinforcement

• Overall Dimensions: 30.2 × 23.6 × 69.8 inches (770 × 596 × 1770 mm)

• Adjustable Worktable Height: 2.6–40.5 inches (65–1030 mm)

• Height Settings: 9 positions

• Cylinder Stroke: 5.7 inches (145 mm)

• Hydraulic Pump Operating Pressure: 0.8–1.2 MPa

• Hydraulic Oil Specification: 15#

• Pneumatic Connection: Quick connector for an air compressor

• Applications: Bushing removal and installation, ball joint and U-joint servicing, metal bending, straightening, and stamping

Equip your garage or workshop with a versatile 20 ton hydraulic press designed for stable operation and efficient automotive and metalworking tasks.
