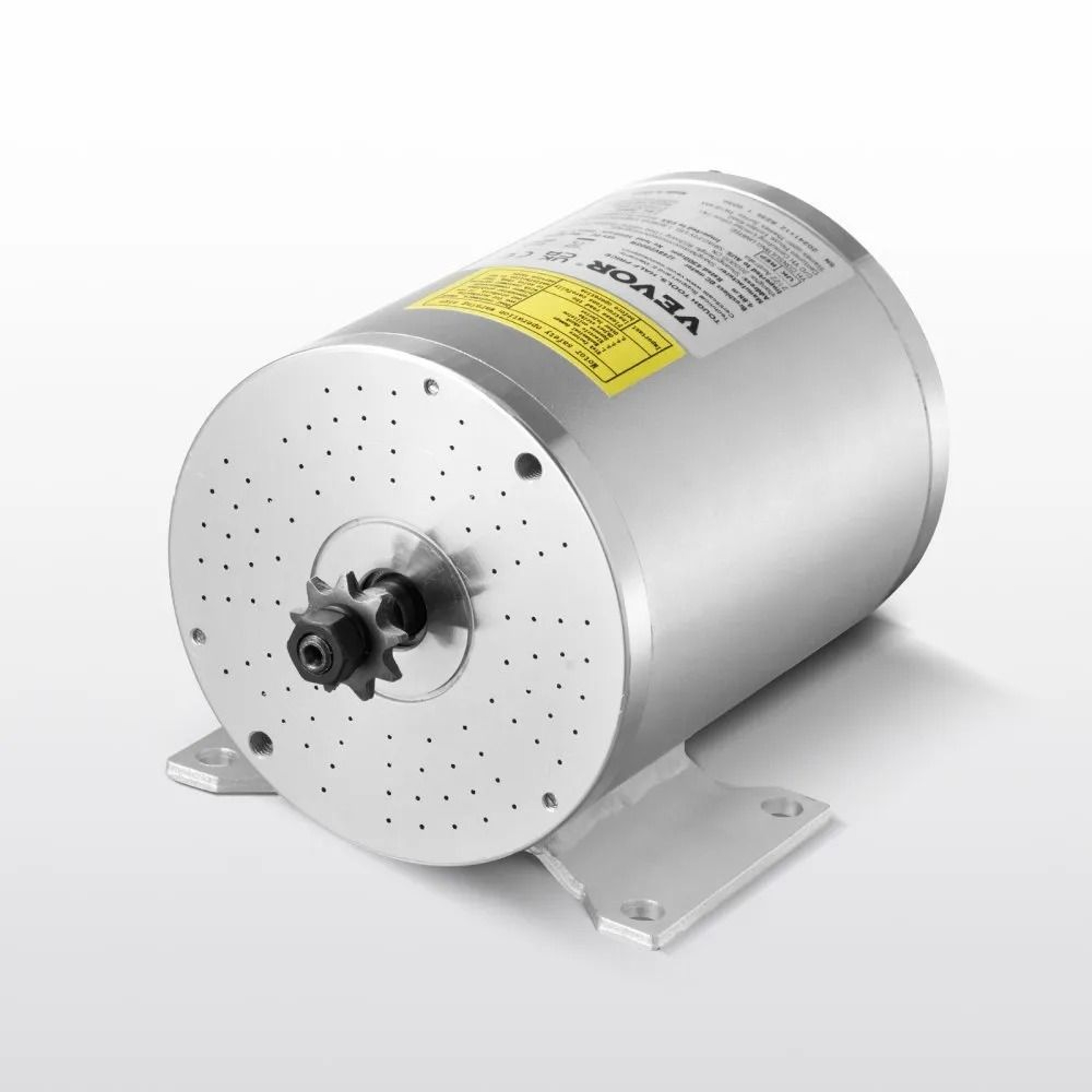

2000W Brushless DC Motor Kit 48V 4300 RPM with Speed Controller and Throttle Grip

Power your DIY electric vehicle projects with this 2000W Brushless DC Motor Kit, featuring a 48V motor, upgraded speed controller, and throttle grip. Designed for go-karts, electric bikes, scooters, and motorcycles, this motor delivers 4300 RPM rated speed, 4.8 N·m torque, and efficient performance. Its copper core construction, dual-direction rotation, and intelligent soft-start technology provide reliable operation and convenient control.

Key Features

• Powerful 2000W Brushless Motor: Delivers 2000W rated power with at least 85% conversion efficiency, helping reduce energy loss while providing dependable performance for electric vehicle applications.

• High-Speed Performance: Operates at 4300 RPM rated speed and 5600 RPM no-load speed. The source reports speeds of up to 35.4 MPH at rated operation and 46 MPH without load when using a 16-inch wheel.

• Durable Copper Core Construction: Features a 100% copper core motor designed for heat and cold resistance, with an operating noise level of 70 dB.

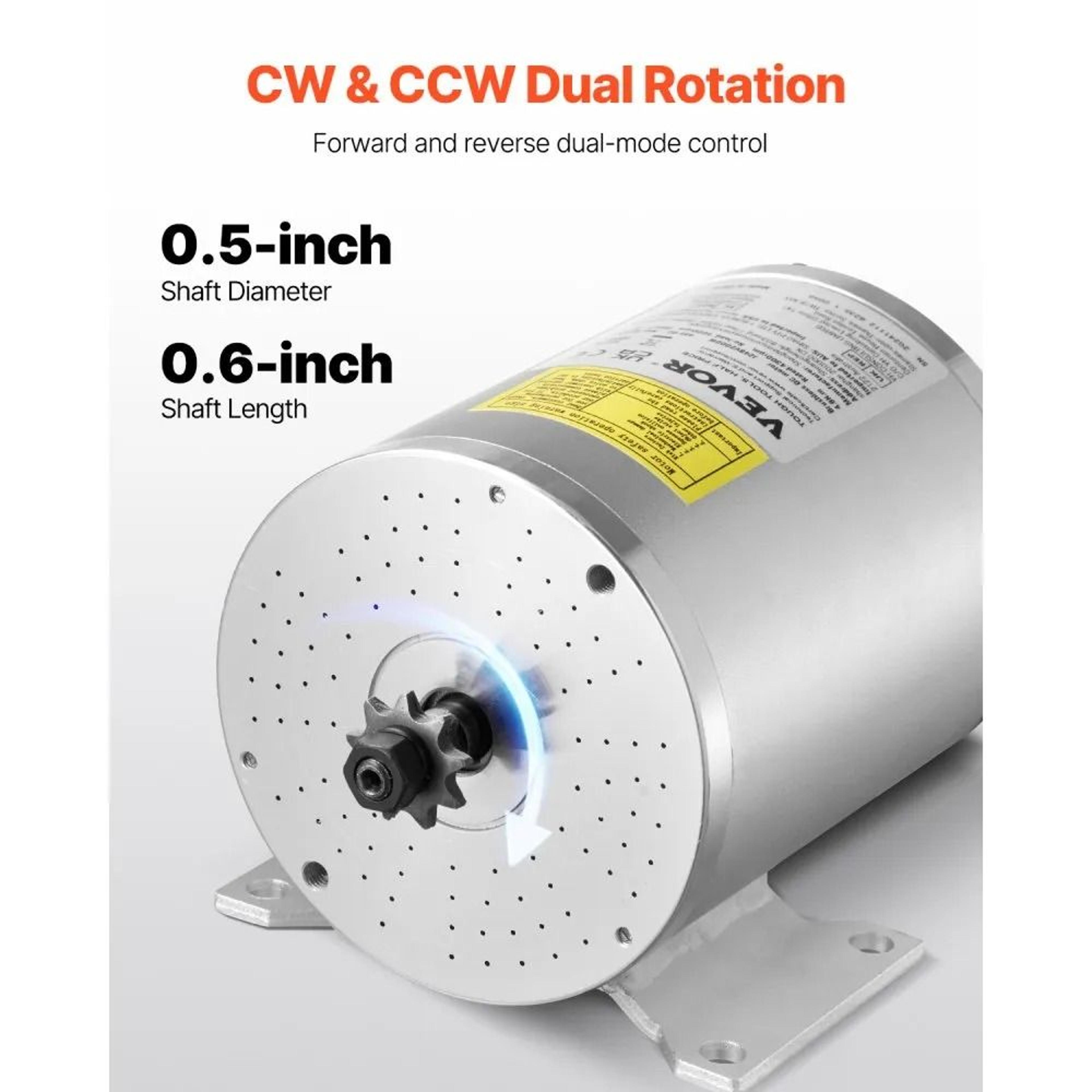

• Forward and Reverse Rotation: Supports clockwise (CW) and counterclockwise (CCW) operation, allowing directional control for various DIY vehicle configurations.

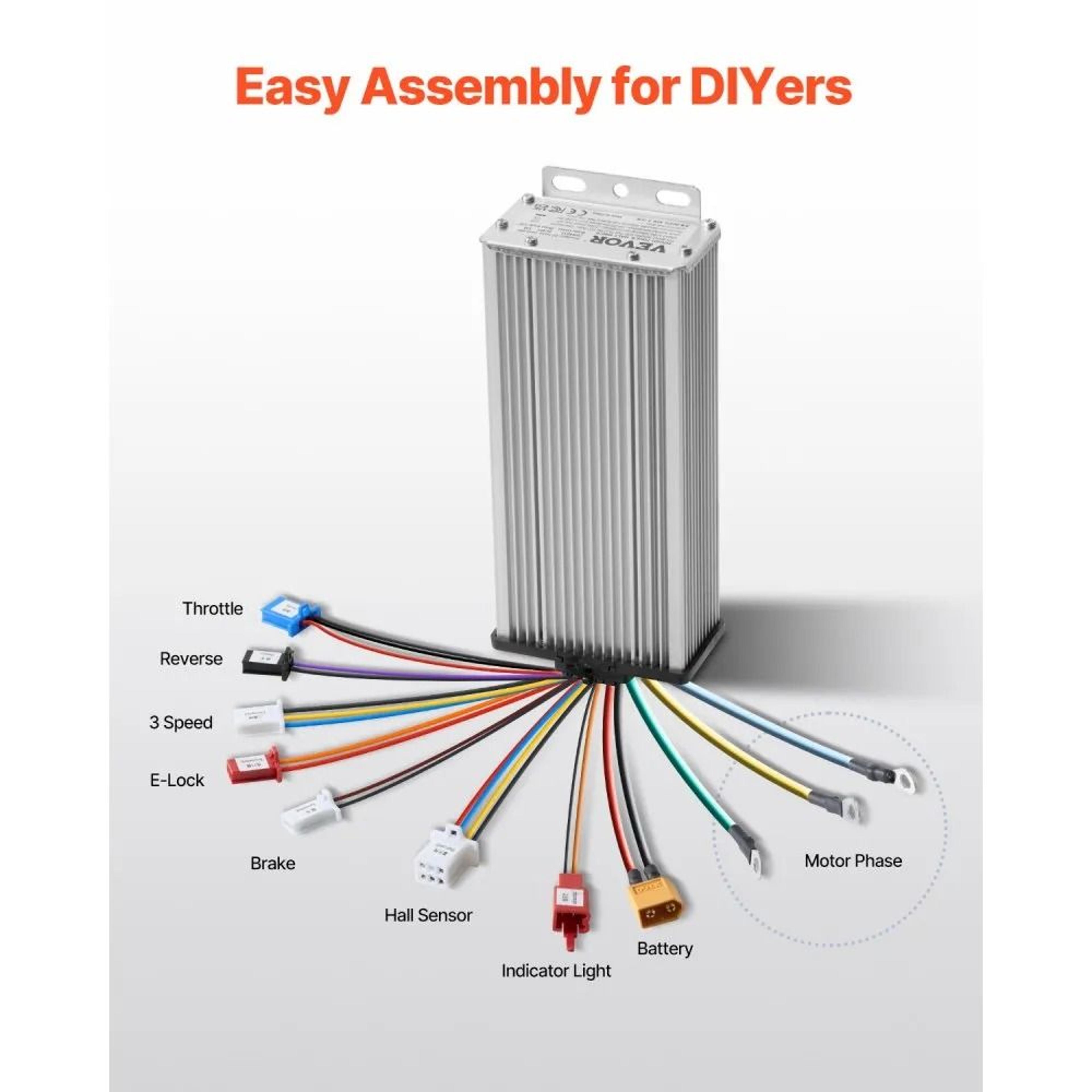

• Upgraded Controller with Protection Features: Includes overload, undervoltage, and short-circuit protection, along with speed adjustment, braking, reverse operation, and intelligent soft-start functionality for gradual acceleration.

Specifications

• Product Type: Brushless DC motor kit

• Motor Voltage: 48V

• Rated Power: 2000W

• Rated Torque: 4.8 N·m

• Rated Rotation Speed: 4300 RPM

• No-Load Rotation Speed: 5600 RPM

• Conversion Efficiency: ≥85%

• Rotation Direction: Clockwise and counterclockwise (CW/CCW)

• Motor Core: 100% copper

• Noise Level: 70 dB

• Reported Rated-Speed Travel Speed: Up to 35.4 MPH with a 16-inch wheel

• Reported No-Load Travel Speed: Up to 46 MPH with a 16-inch wheel

• Controller Features: Speed control, braking, reverse, soft start, overload protection, undervoltage protection, and short-circuit protection

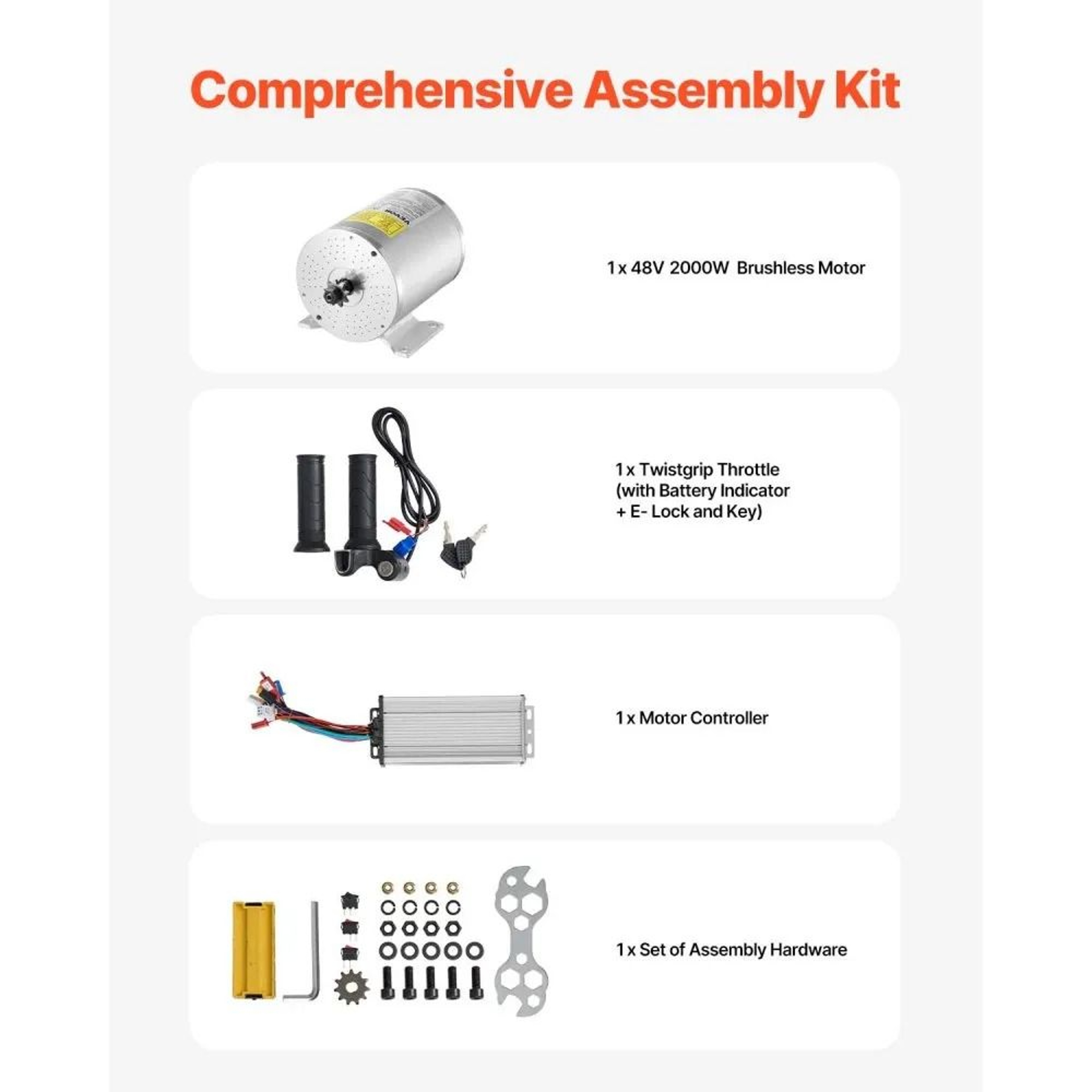

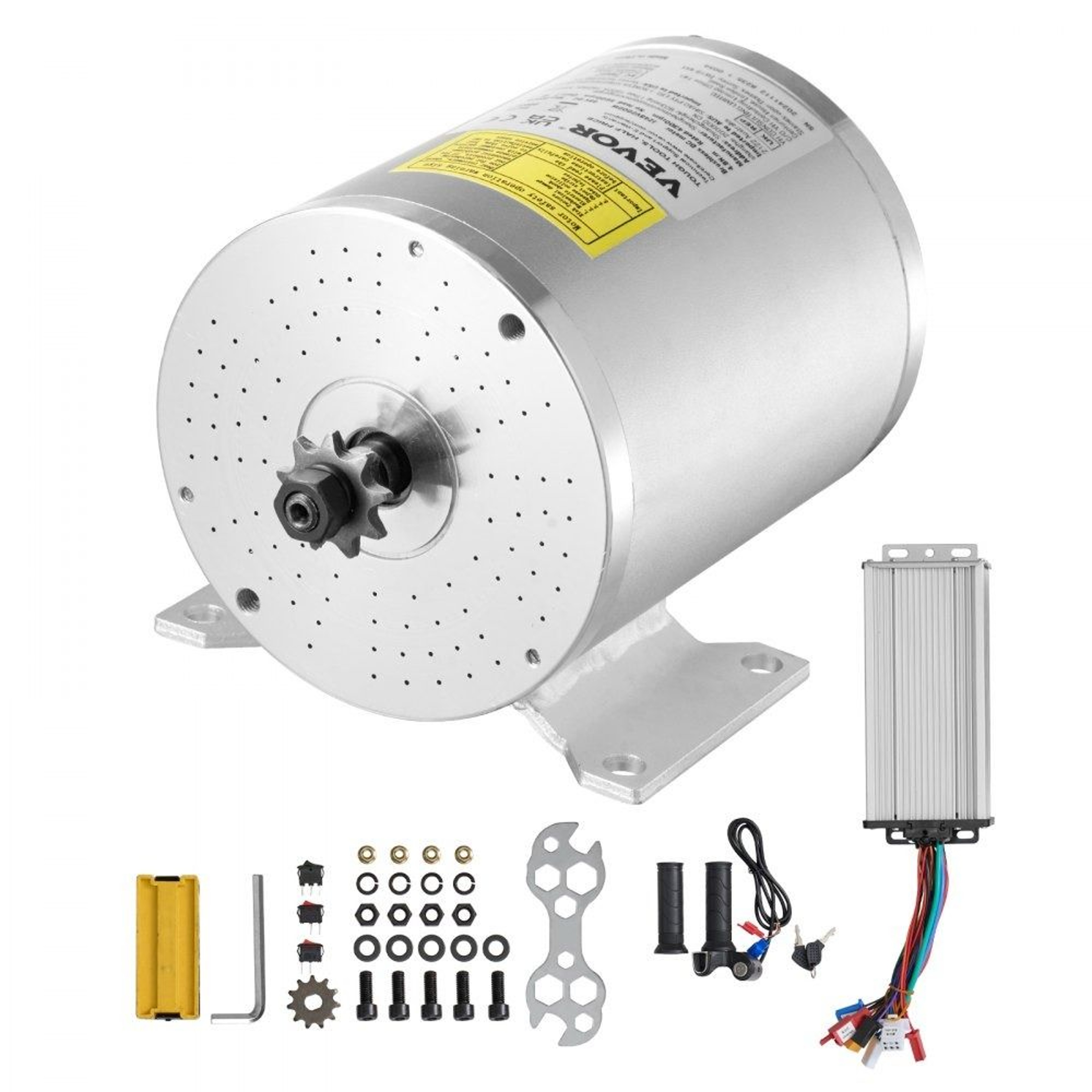

• Kit Components: Brushless DC motor, upgraded speed controller, and throttle grip

• Applications: Go-karts, electric bikes, motorcycles, scooters, and DIY electric vehicle projects

Upgrade your electric vehicle project with this 2000W brushless motor kit, combining efficient power delivery, adjustable speed control, and versatile forward and reverse operation.
