20W Laser Engraver and Cutting Machine with Precision Spot Compression

Bring precision and versatility to your creative projects with this 20W laser engraver and cutting machine, designed for detailed engraving and cutting on a variety of materials. Featuring compressed laser technology, high-speed movement, and a spacious working area, this desktop laser engraving machine is ideal for DIY crafts, personalized gifts, and small business projects.

Key Features

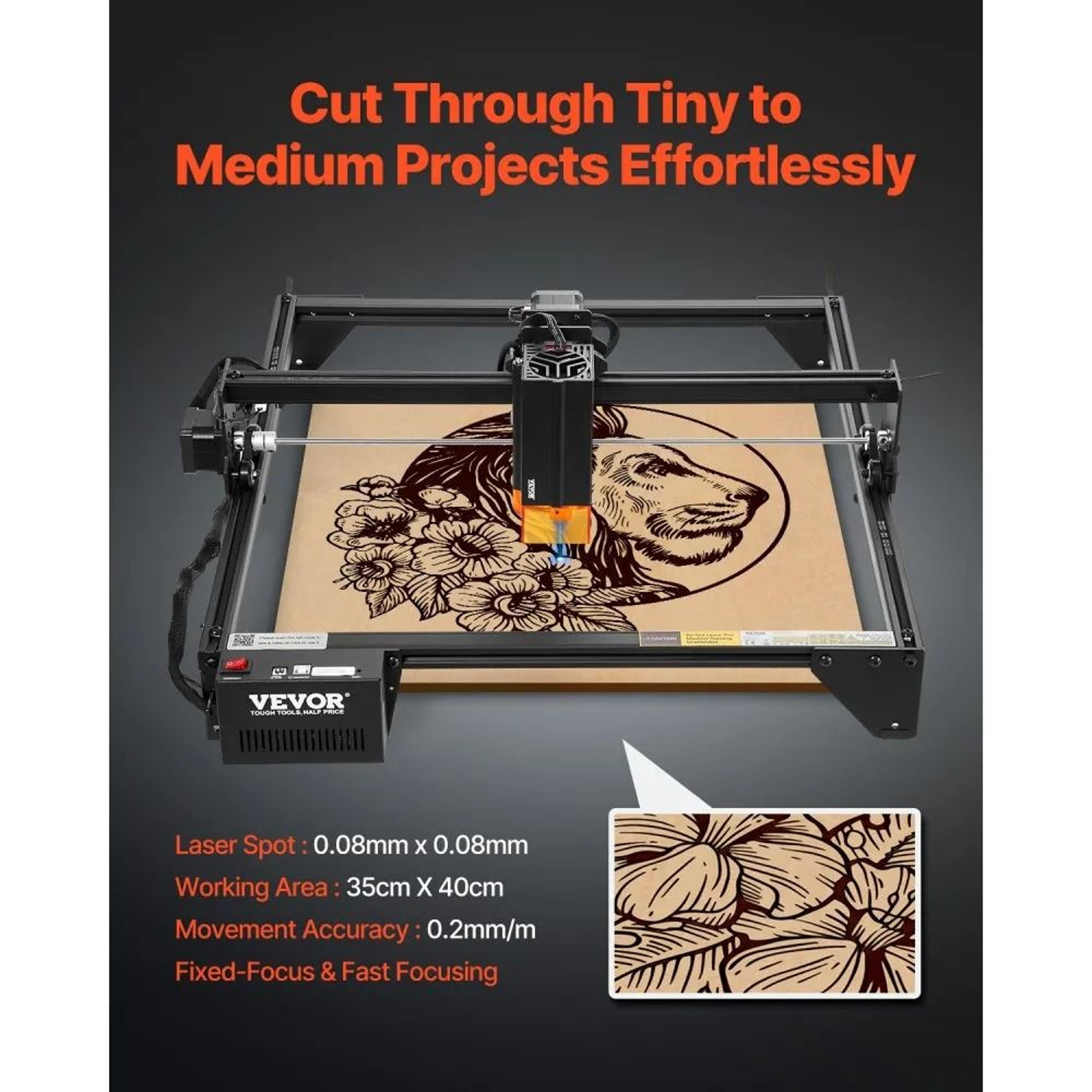

• Precision Laser Engraving: Features a concentrated 0.08 × 0.08 mm laser spot for detailed designs, fine lines, and accurate cutting on compatible materials.

• High-Speed Performance: Reaches movement speeds up to 10,000 mm/min with a stepper motor and synchronous belt drive, supporting efficient engraving and cutting.

• Versatile Material Compatibility: Works with wood, certain metals, opaque acrylic, and black-coated glass. Supports wood cutting up to 0.2 inches (5 mm) thick.

• Air Assist Support: Compatible with an air assist pump to improve cutting efficiency, reduce darkened edges, and create cleaner finishes. The supplied specifications indicate an air pump is included.

• Convenient Operation: Connects to a computer via USB and supports LightBurn and LaserGRBL software. Features cable management and a protective filter designed to block 97% of harmful laser light.

Specifications

• Product Type: Laser engraving and cutting machine

• Main Material: Aluminum alloy with spray-painted finish

• Laser Power: 20W or higher

• Laser Class: Class IV

• Laser Wavelength: 455 ± 5 nm blue light laser

• Laser Spot Size: 0.0031 × 0.0031 inches (0.08 × 0.08 mm)

• Effective Working Area: 14.9 × 15.7 inches (38 × 40 cm)

• Maximum Movement Speed: 10,000 mm/min

• Maximum Wood Cutting Thickness: 0.2 inches (5 mm)

• Laser Head Lifespan: Over 10,000 hours at 80% power

• Connection Type: USB

• Compatible Software: LightBurn and LaserGRBL

• Supported Operating Systems: iOS, Windows, and Linux, as listed

• Air Assist: Supported; air pump listed as included

• Eye Protection Filter: Filters 97% of harmful laser light

• Compatible Materials: Wood, certain metals, opaque acrylic, and black-coated glass

Create detailed engravings, customized decorations, and precision-cut designs with this versatile laser engraving machine for personal and small business projects.
