24-Inch Heavy-Duty Locking Drawer Slides 500 lb Capacity Full Extension Pair

Upgrade your storage with these 24-inch heavy-duty locking drawer slides, designed to support substantial loads while providing smooth, reliable drawer movement. Built from high-hardness steel with a galvanized finish, these full extension drawer slides feature a single locking mechanism and double-row ball bearings. Ideal for cabinets, industrial drawers, RVs, trucks, shelving, and vending machines, they combine sturdy construction with convenient access to stored items.

Key Features

• Heavy-Duty Steel Construction: Supports loads up to 500 lbs, with a galvanized finish that resists rust and wear for long-lasting performance.

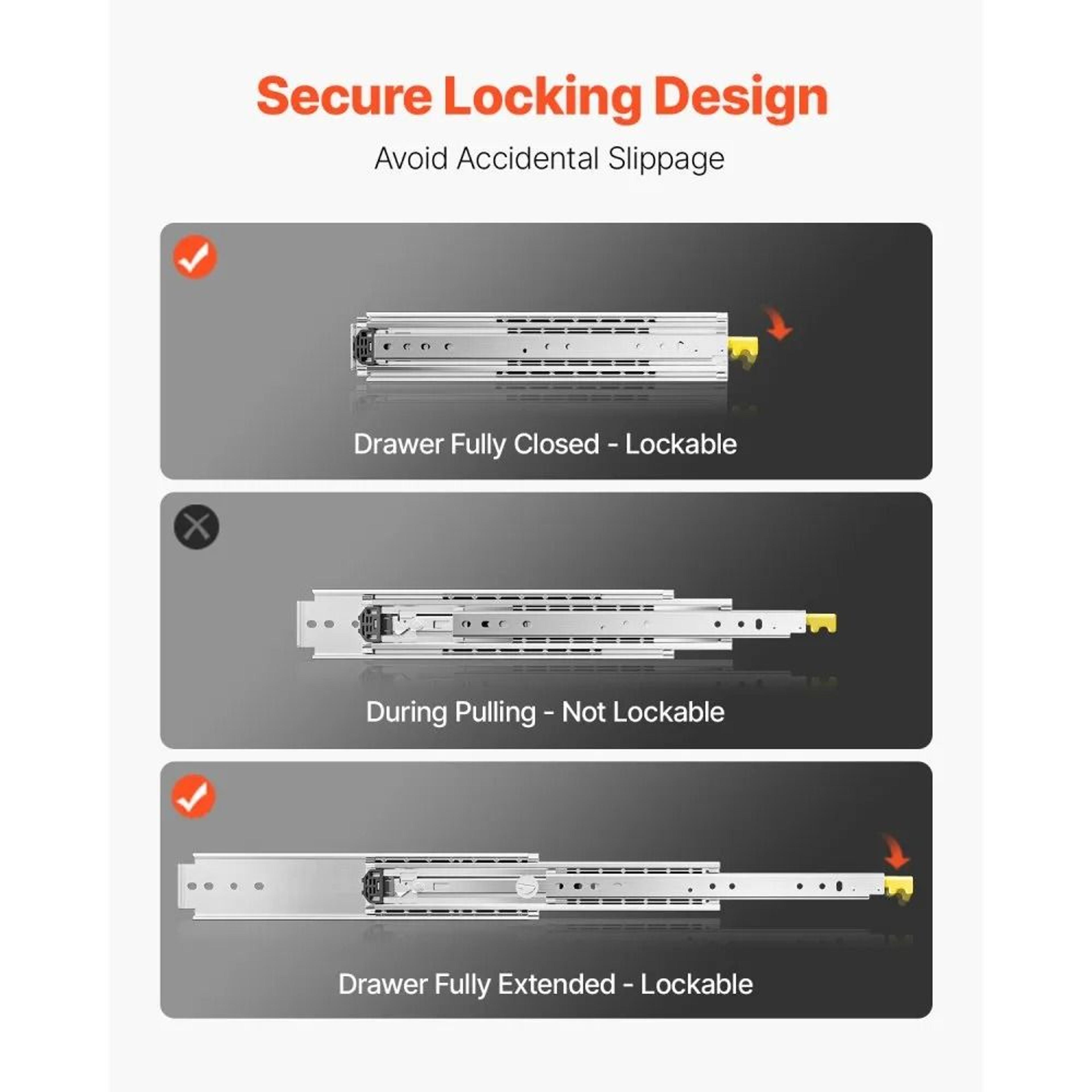

• Single Locking Mechanism: Secures drawers in place with a simple press, helping prevent unwanted movement during travel or on bumpy surfaces.

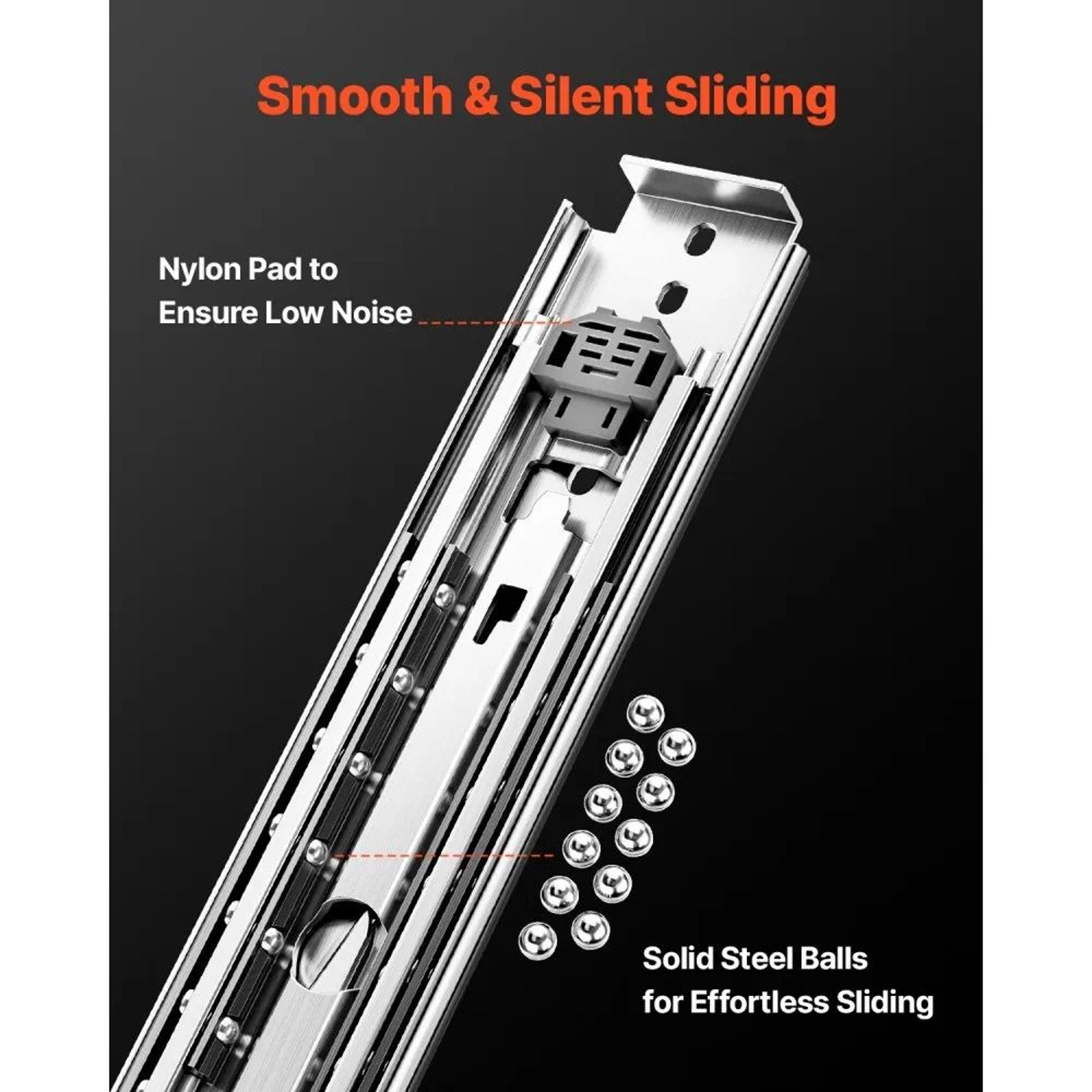

• Smooth Ball Bearing Operation: Double-row ball bearings allow effortless opening and closing, while nylon cushioning helps reduce noise and drawer bouncing.

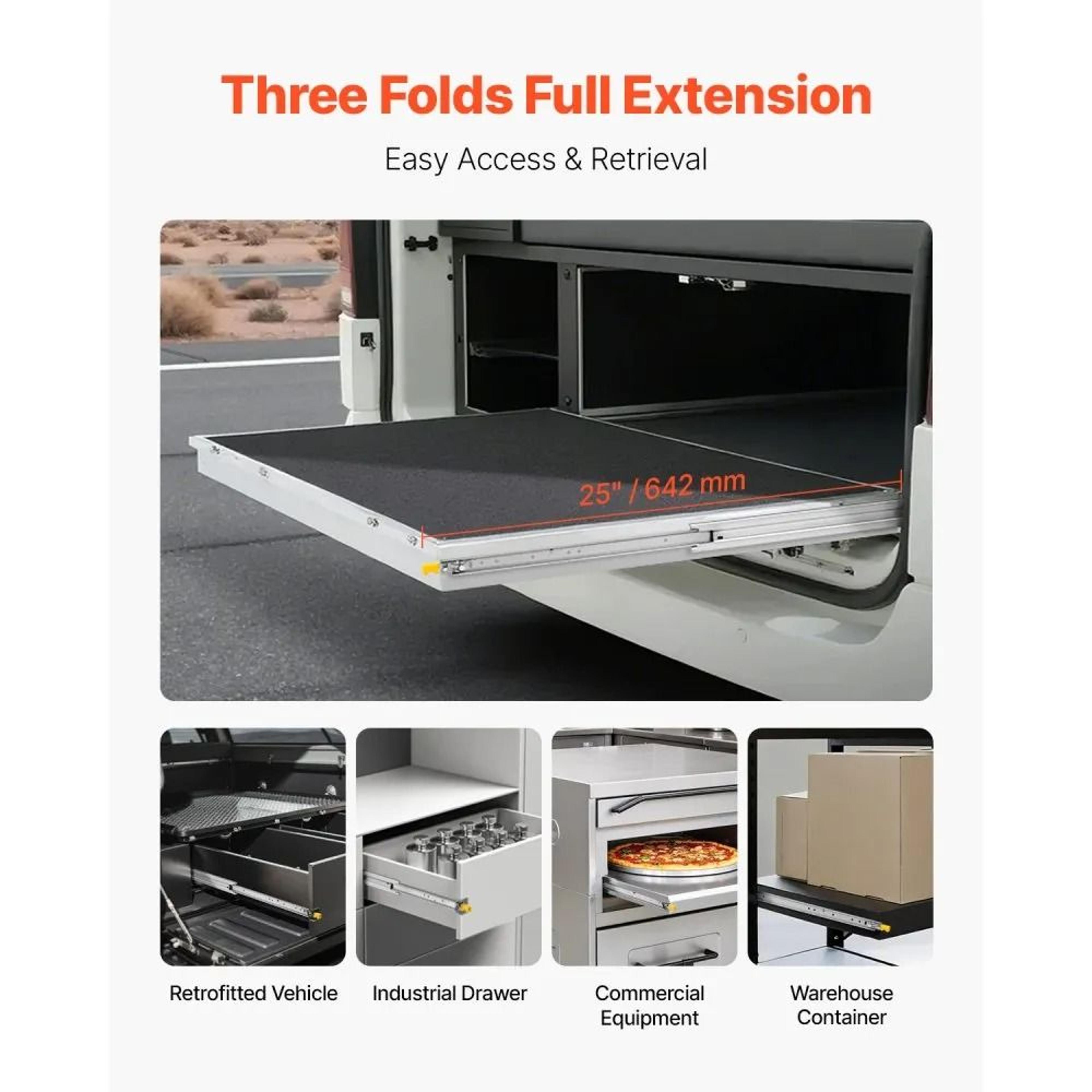

• 3-Fold Full Extension: Extends up to 24 inches, providing convenient access to the entire drawer and making stored items easier to reach.

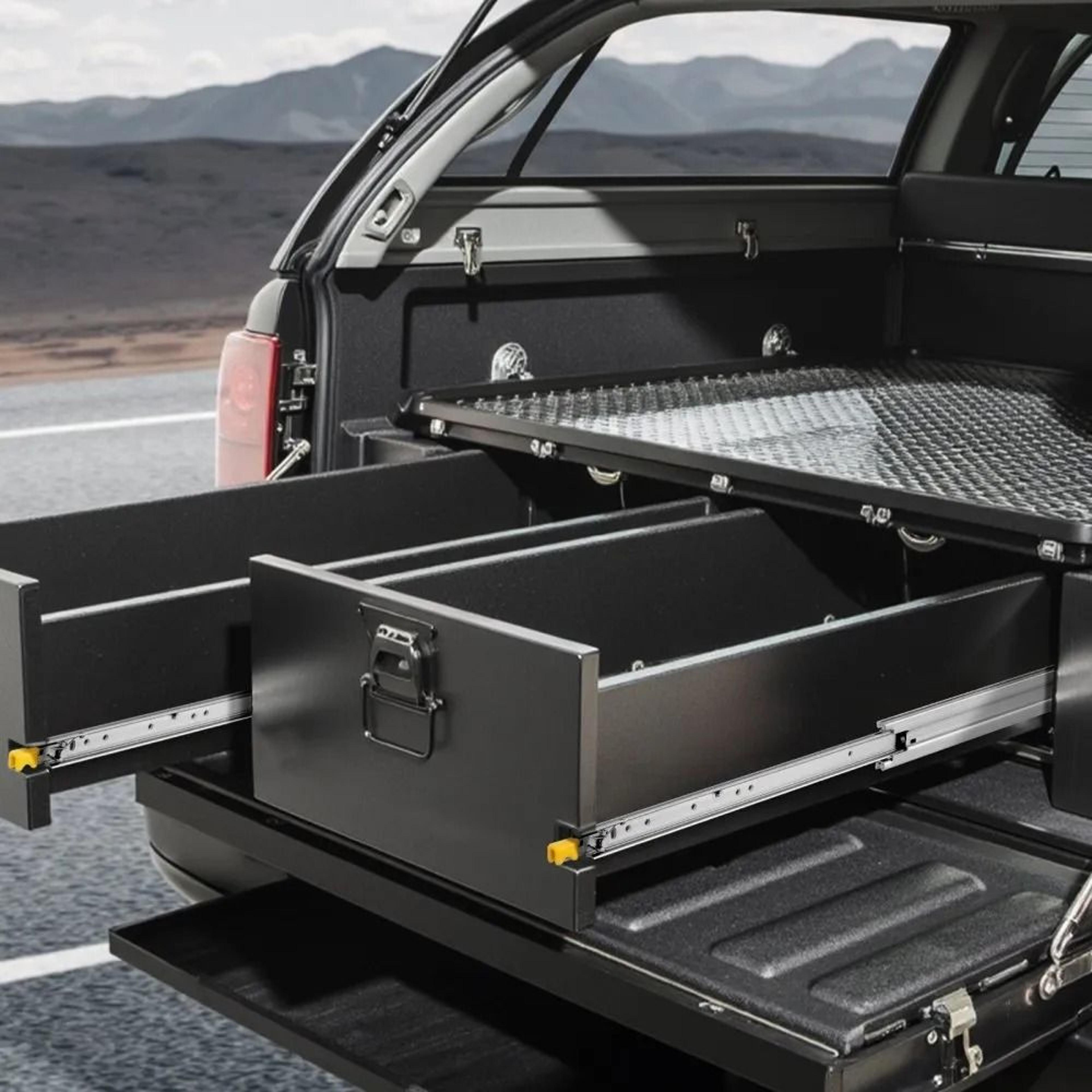

• Versatile Side-Mount Design: Suitable for cabinets, shelving, industrial storage, RVs, trucks, and vending machines where sturdy drawer support is needed.

Specifications

• Material: High-hardness steel

• Finish: Galvanized

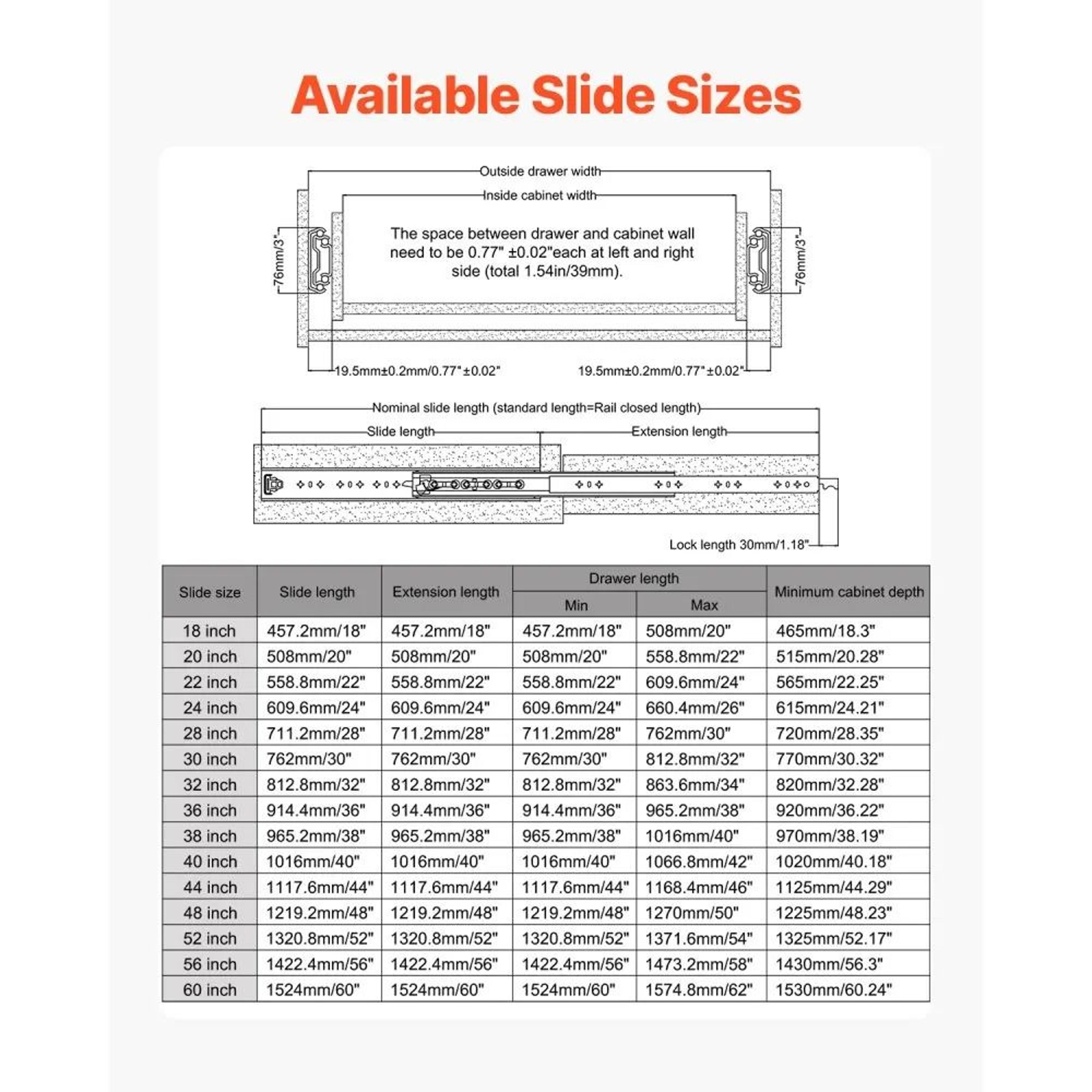

• Slide Length: 24 inches (610 mm)

• Slide Width: 3 inches (76 mm)

• Slide Thickness: 0.77 inches (19.5 mm)

• Extension Length: 24 inches (610 mm)

• Load Capacity: 500 lbs (226.8 kg)

• Load Capacity When Fully Extended: 376 lbs (170.55 kg)

• Suitable Drawer Length: 24.5 inches (622 mm)

• Extension Type: 3-fold full extension

• Mounting Type: Side mount

• Locking Mechanism: Single lock

• Bearing System: Double-row ball bearings

• Net Weight: 13.23 lbs (6 kg)

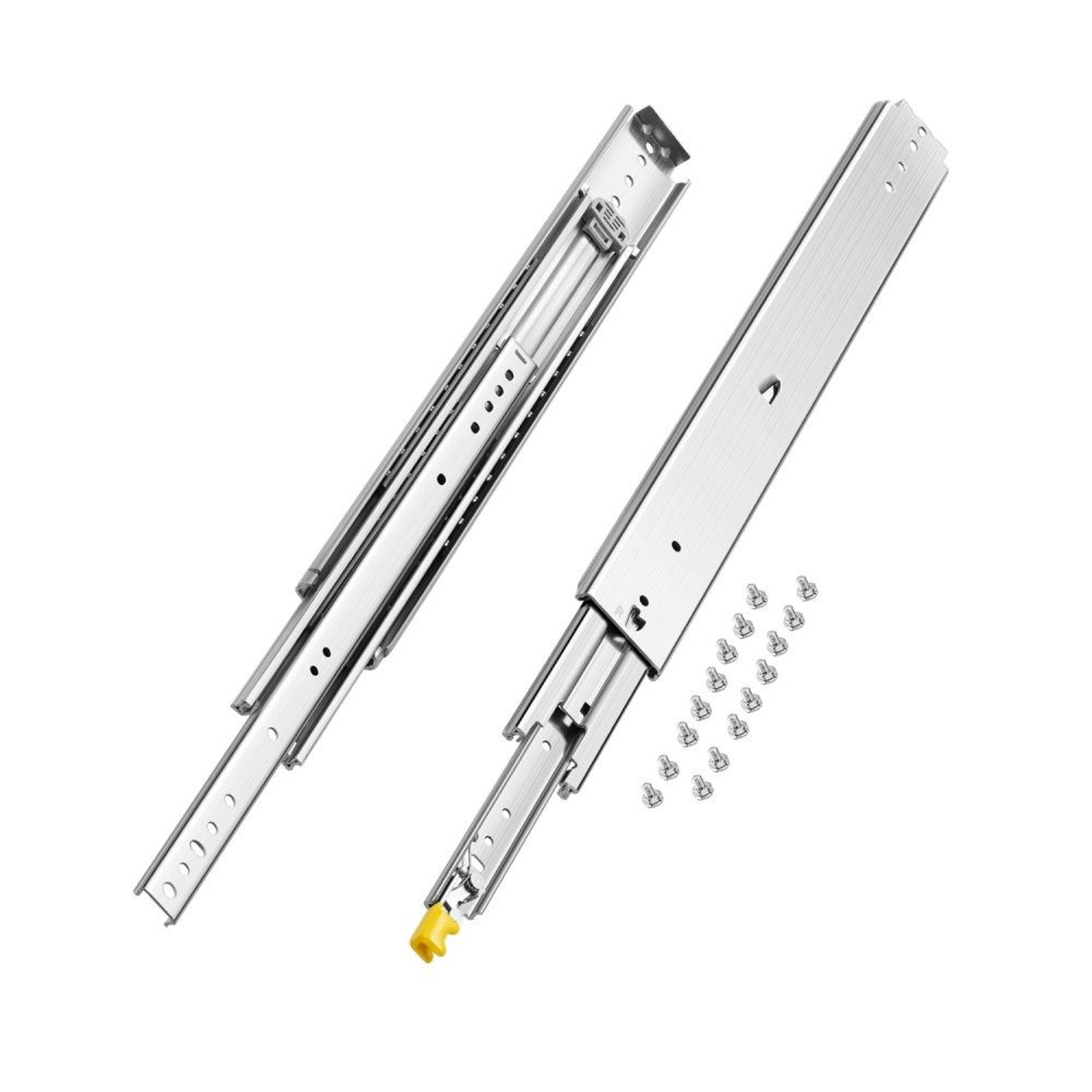

• Package Includes: 1 pair of locking drawer slides

These heavy-duty drawer slides offer secure locking, smooth movement, and full drawer access for demanding storage applications.
