240V Smart Dryer and EV Power Splitter with LCD Display and NEMA Outlets

Make sharing a 240V circuit between your dryer and electric vehicle more convenient with this smart dryer and EV power splitter. Featuring automatic power switching, a large 3.4-inch LCD screen, and dual NEMA outlets, it provides a practical solution for Level 2 EV charging without rewiring your home. Its built-in protection features and LED status indicator help you monitor power usage and operating conditions.

Key Features

• Smart Power Distribution: Shares an existing 240V dryer circuit between two connected devices, automatically switching power based on outlet priority.

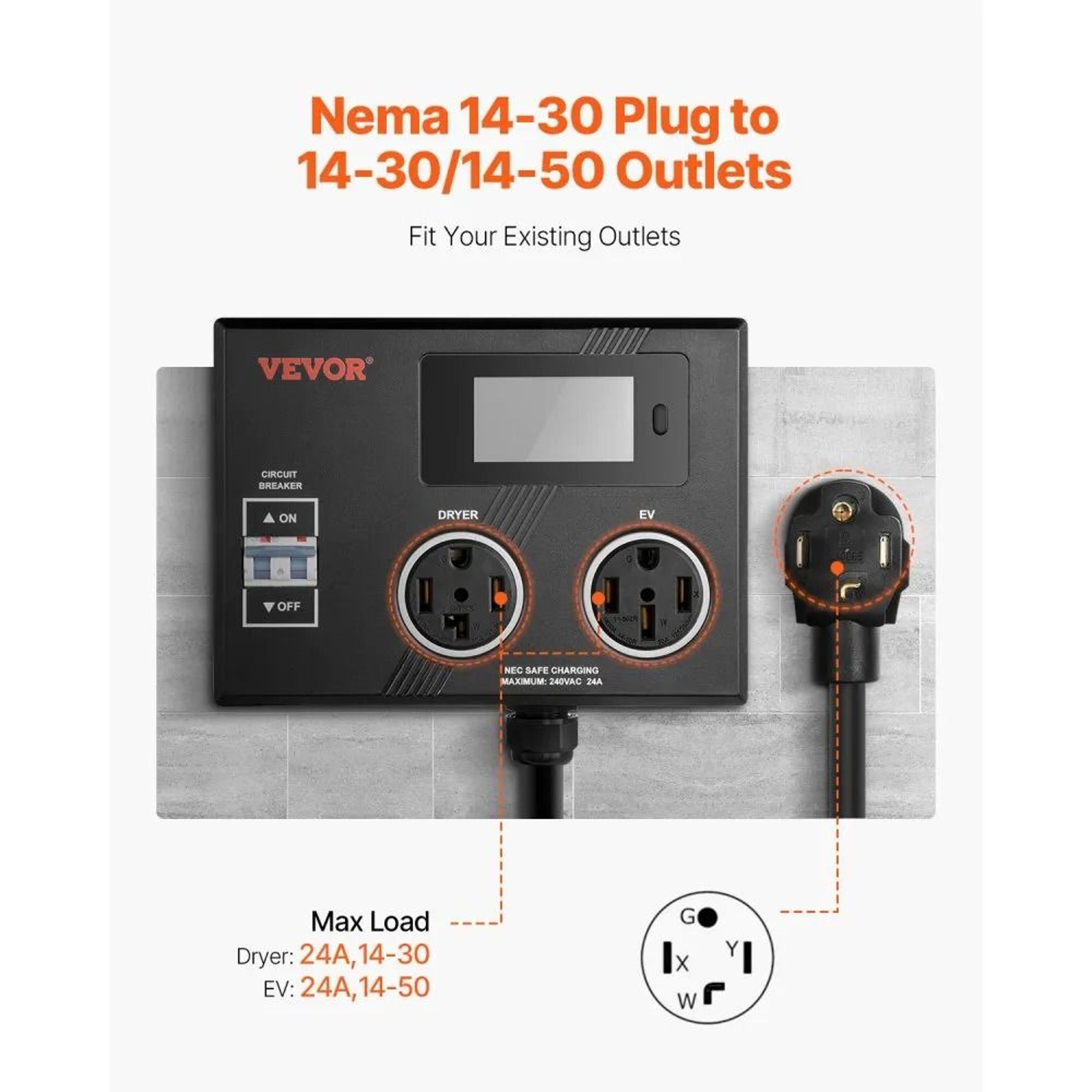

• Dual NEMA Outlets: Includes one NEMA 14-30 outlet and one NEMA 14-50 outlet with a NEMA 14-30 plug. The left outlet receives priority, and power automatically transfers to the right outlet when the left is no longer operating.

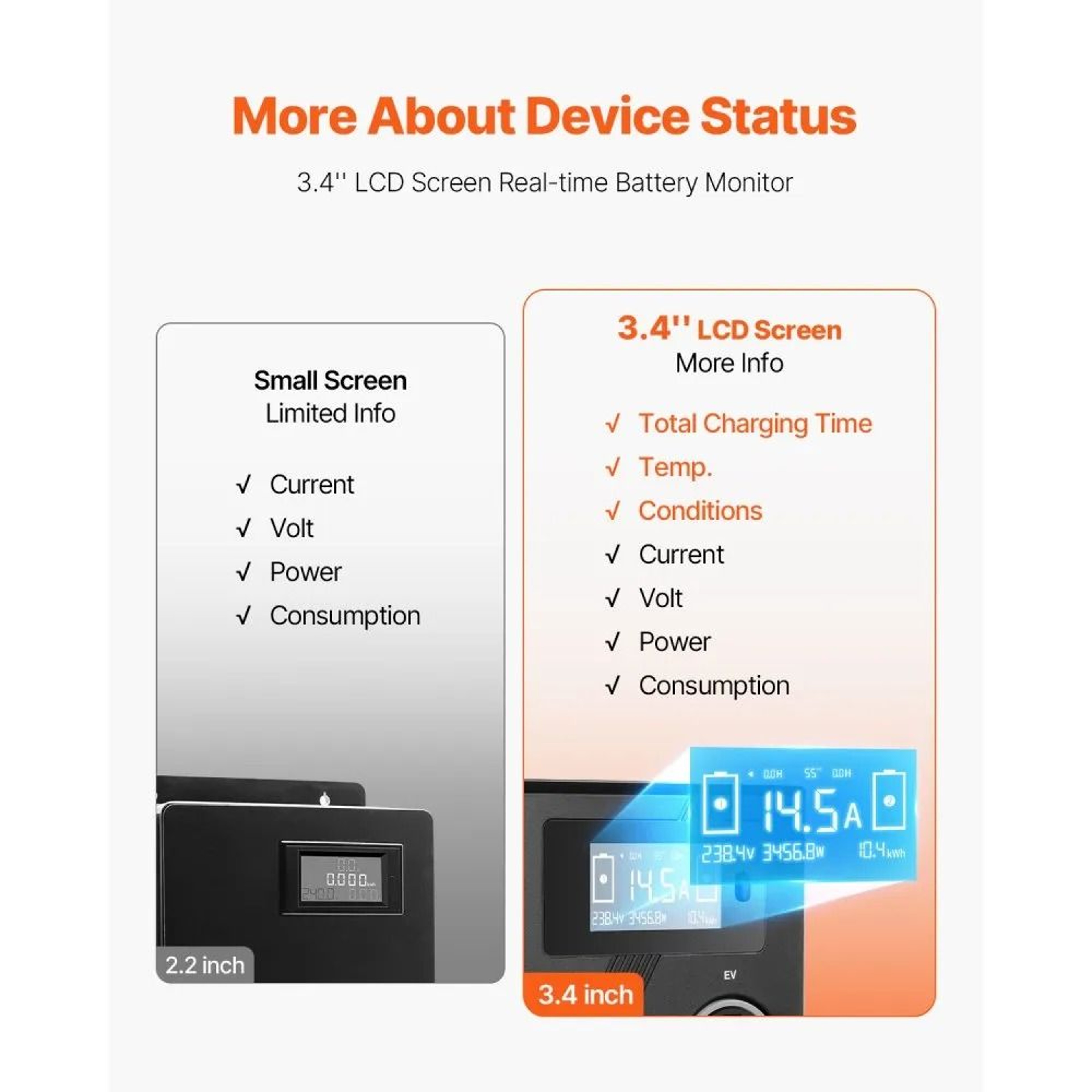

• 3.4-Inch LCD Display: Monitor voltage, current, power, charging time, temperature, and operating conditions on a large, easy-to-read screen.

• Built-In Circuit Protection: Features a circuit breaker that shuts down the device during overloads or short circuits. The PC V0 flame-retardant housing helps reduce flame spread.

• 3-Color LED Indicator: A visible LED ring provides convenient status monitoring from a distance.

Specifications

• Product Type: Smart dryer and EV power splitter

• Input Voltage: AC 240V

• Frequency: 60Hz

• Maximum Operating Current: 24A

• Input Plug: NEMA 14-30

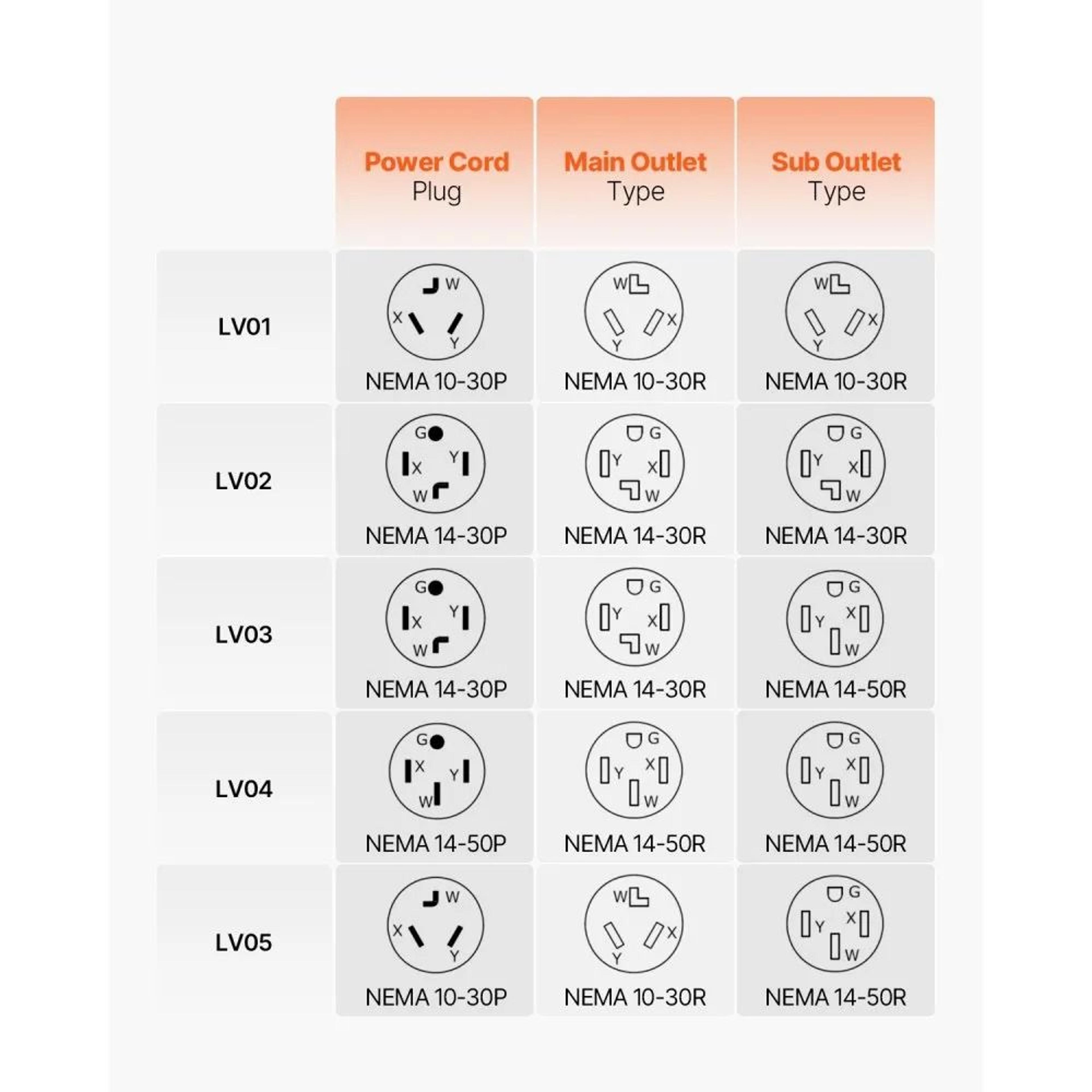

• Output Outlets: 1 NEMA 14-30 and 1 NEMA 14-50

• Power Distribution: Automatic switching with left-outlet priority

• Display: 3.4-inch LCD screen

• Status Indicator: 3-color LED ring

• Housing Material: PC V0 flame-retardant material

• Protection: Built-in circuit breaker for overload and short-circuit protection

• Operating Temperature: -13°F to 122°F (-25°C to 50°C)

• Weight: 6.61 lbs (3 kg)

Simplify your home EV charging setup with automatic power sharing, convenient monitoring, and built-in circuit protection.
