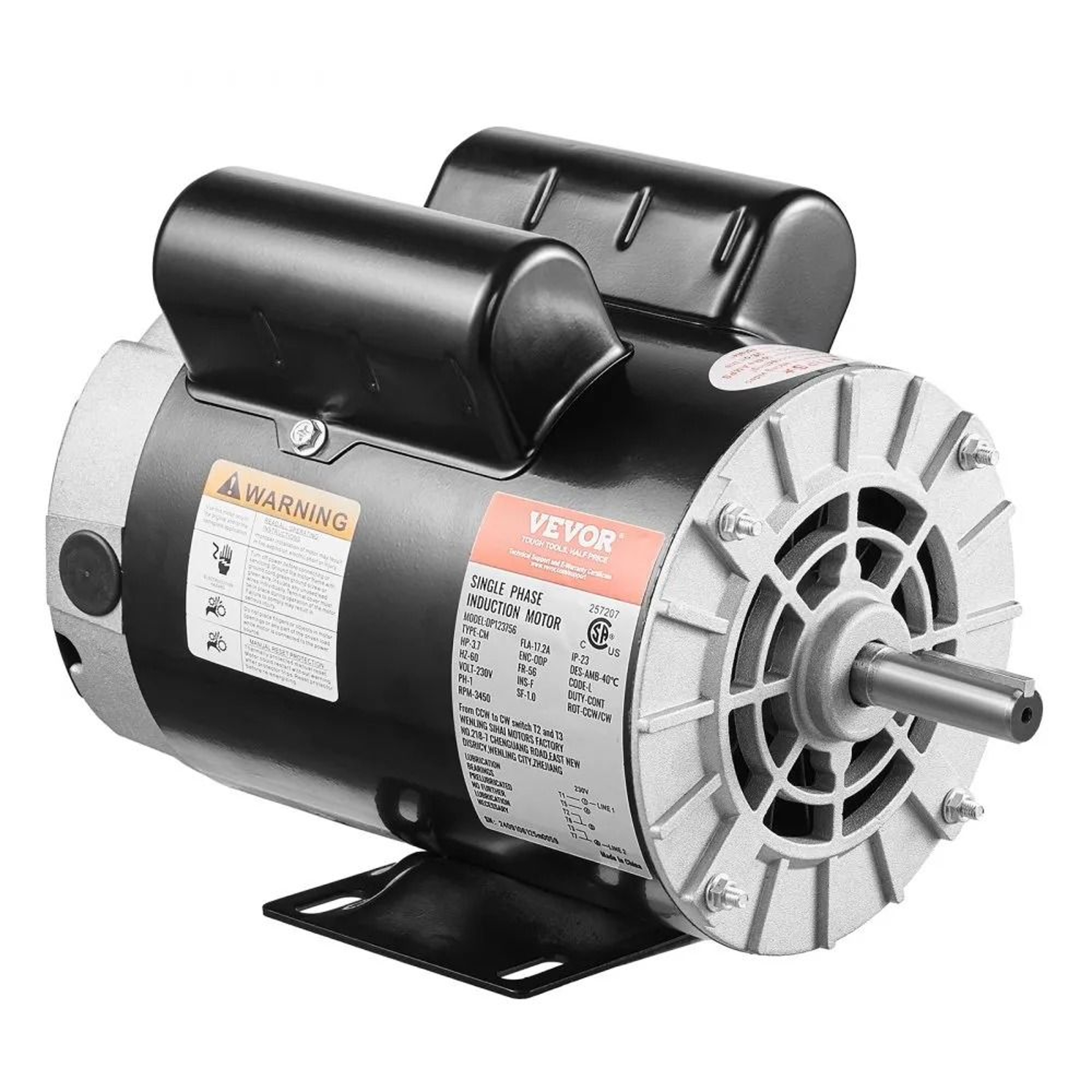

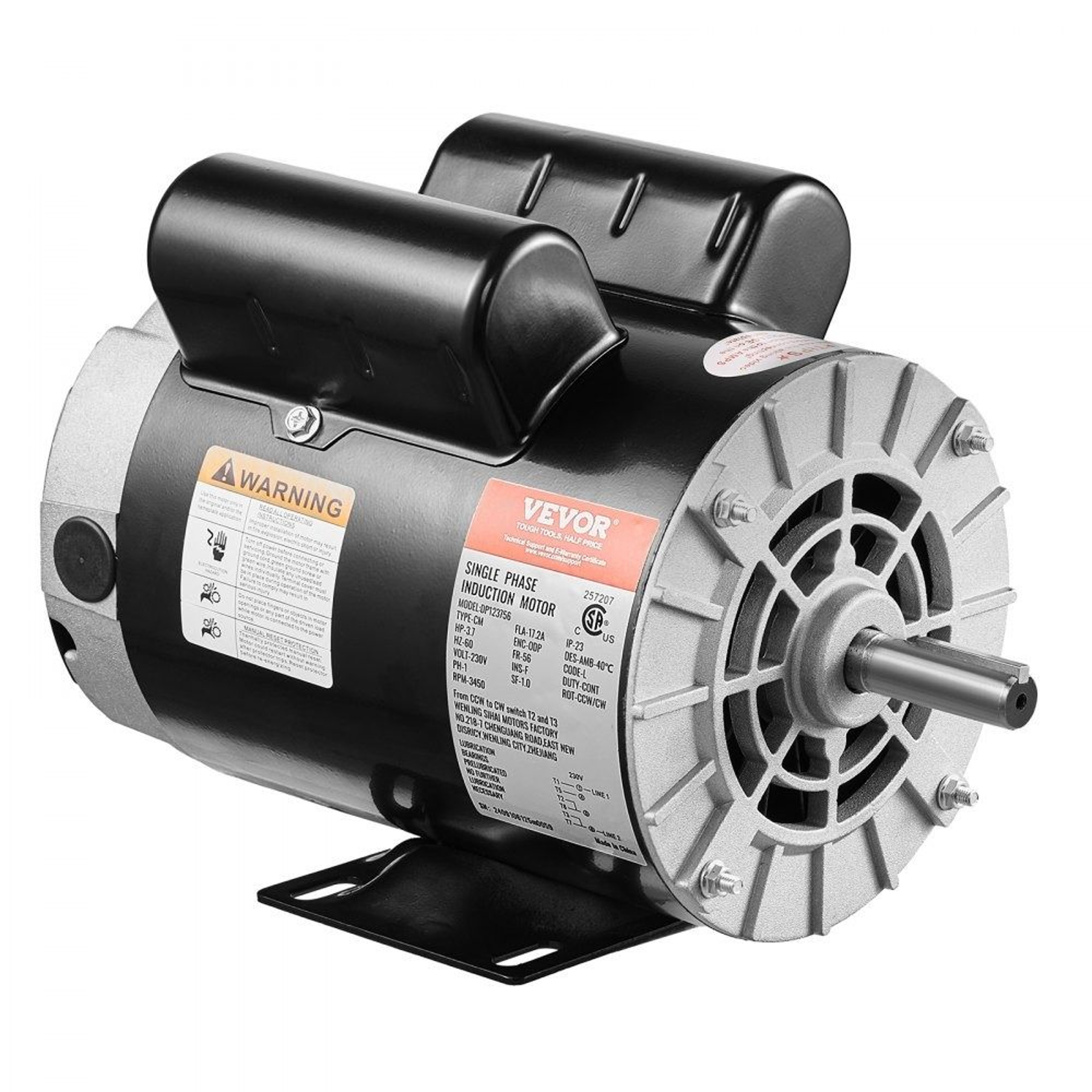

3.7HP Air Compressor Motor 3450RPM 230V Single Phase 56 Frame Reversible Electric Motor

This heavy-duty 3.7HP air compressor motor is engineered to deliver reliable power and efficient performance for high-demand equipment. Built with a sturdy high-quality steel frame, this single phase electric motor operates at 3450 RPM to handle tough mechanical tasks. It features an open drip-proof enclosure designed to protect internal components when operated in clean, dry environments. The reversible motor provides flexible dual-rotation directional wiring, making it a dependable 56 frame motor replacement for your workspace.

Key Features

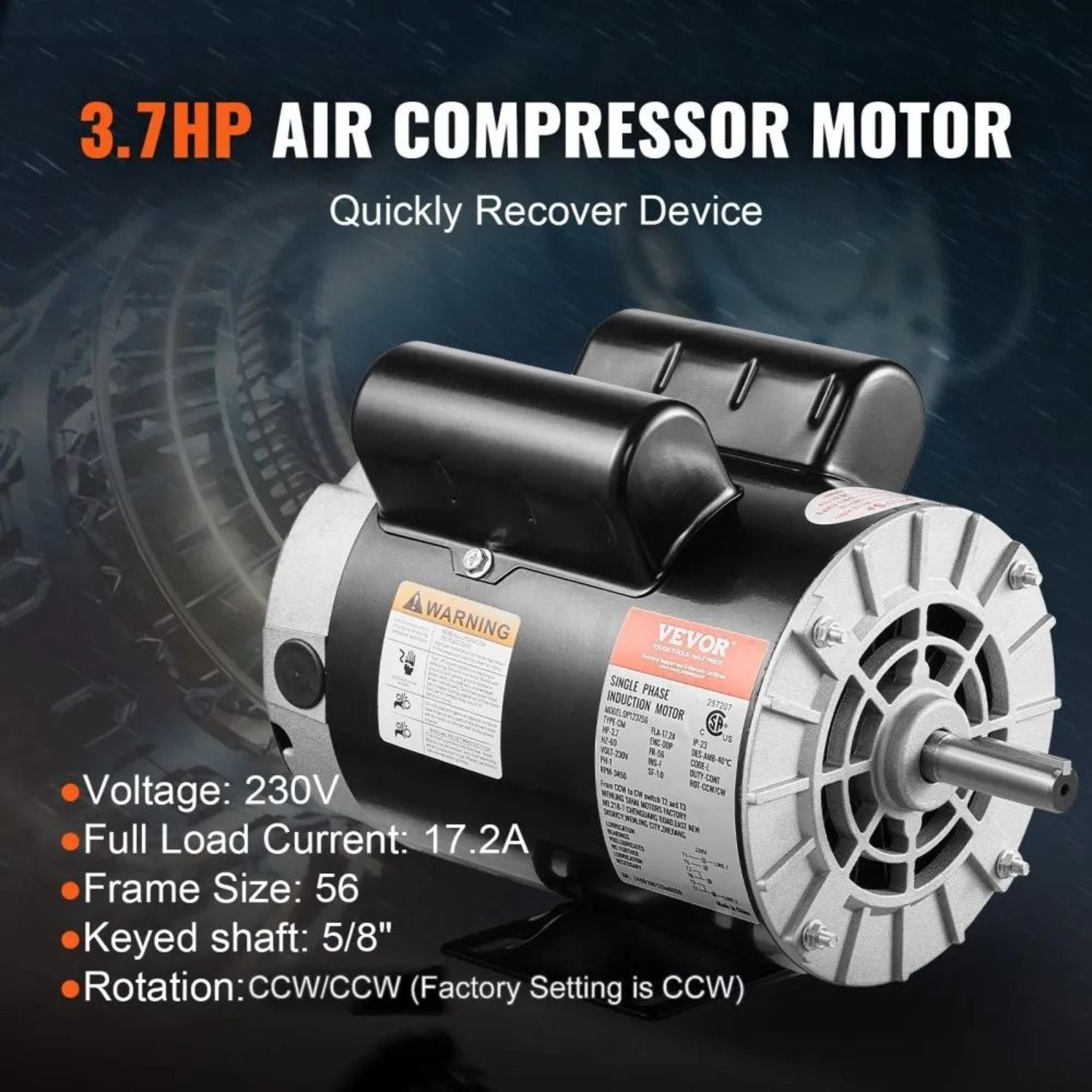

• 3.7HP Output: Delivers robust 3450 RPM rotational speed running at 230V and 17.2 full load amps.

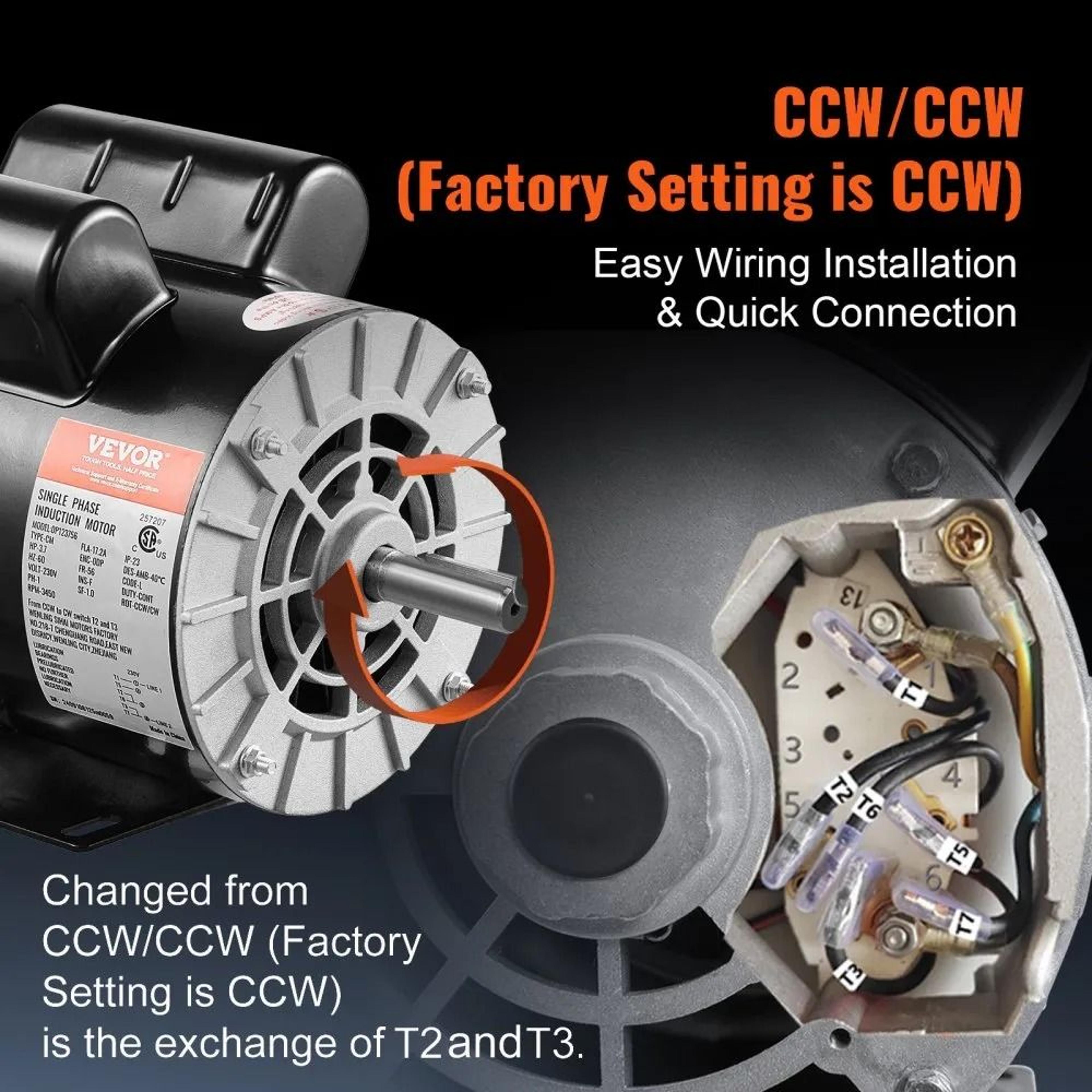

• Dual Rotation Direction: Reversible design supports counterclockwise and clockwise wiring, pre-set to CCW from the factory.

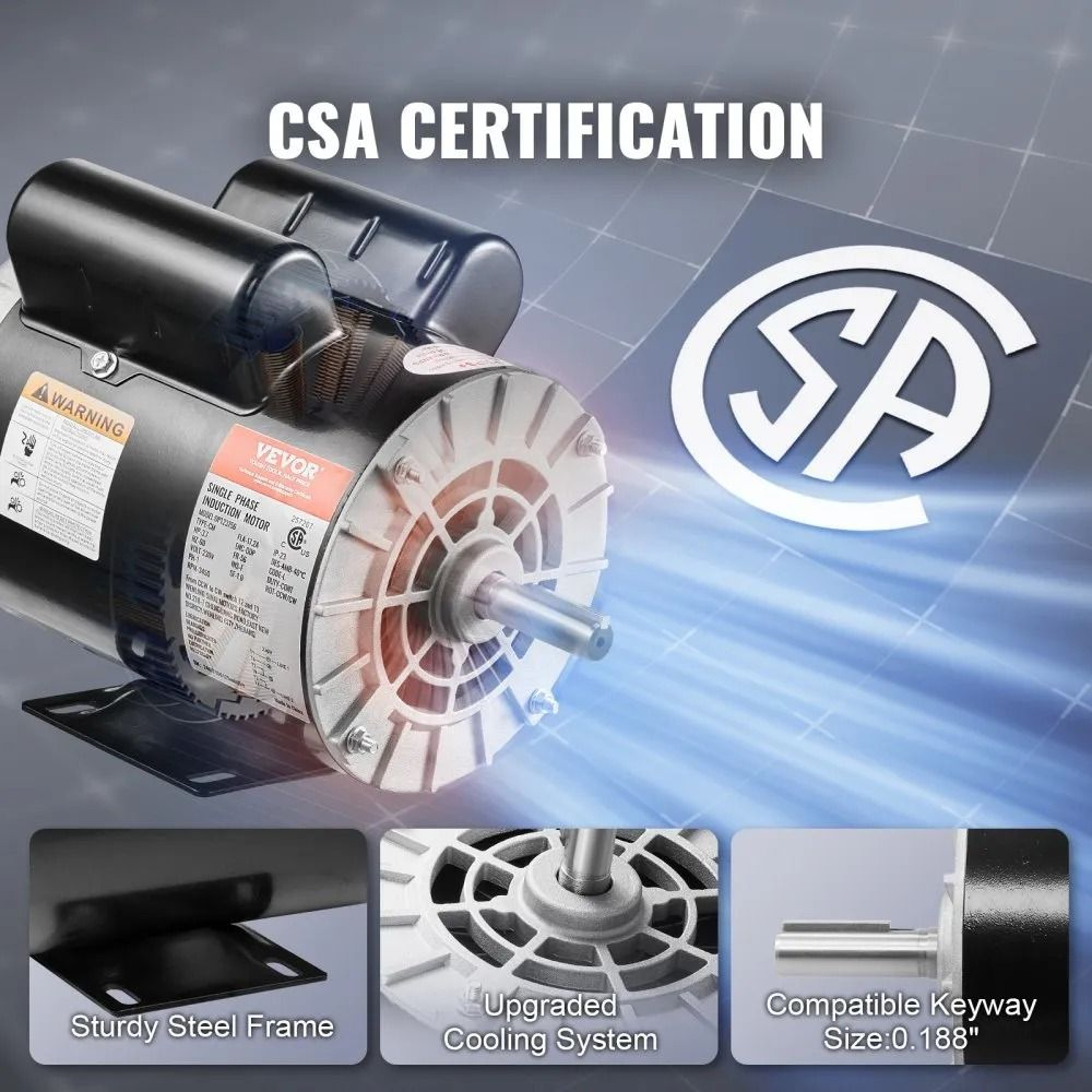

• Open Drip-Proof Steel Frame: Durable steel structure protects the engine and helps ensure a longer service life in dry settings.

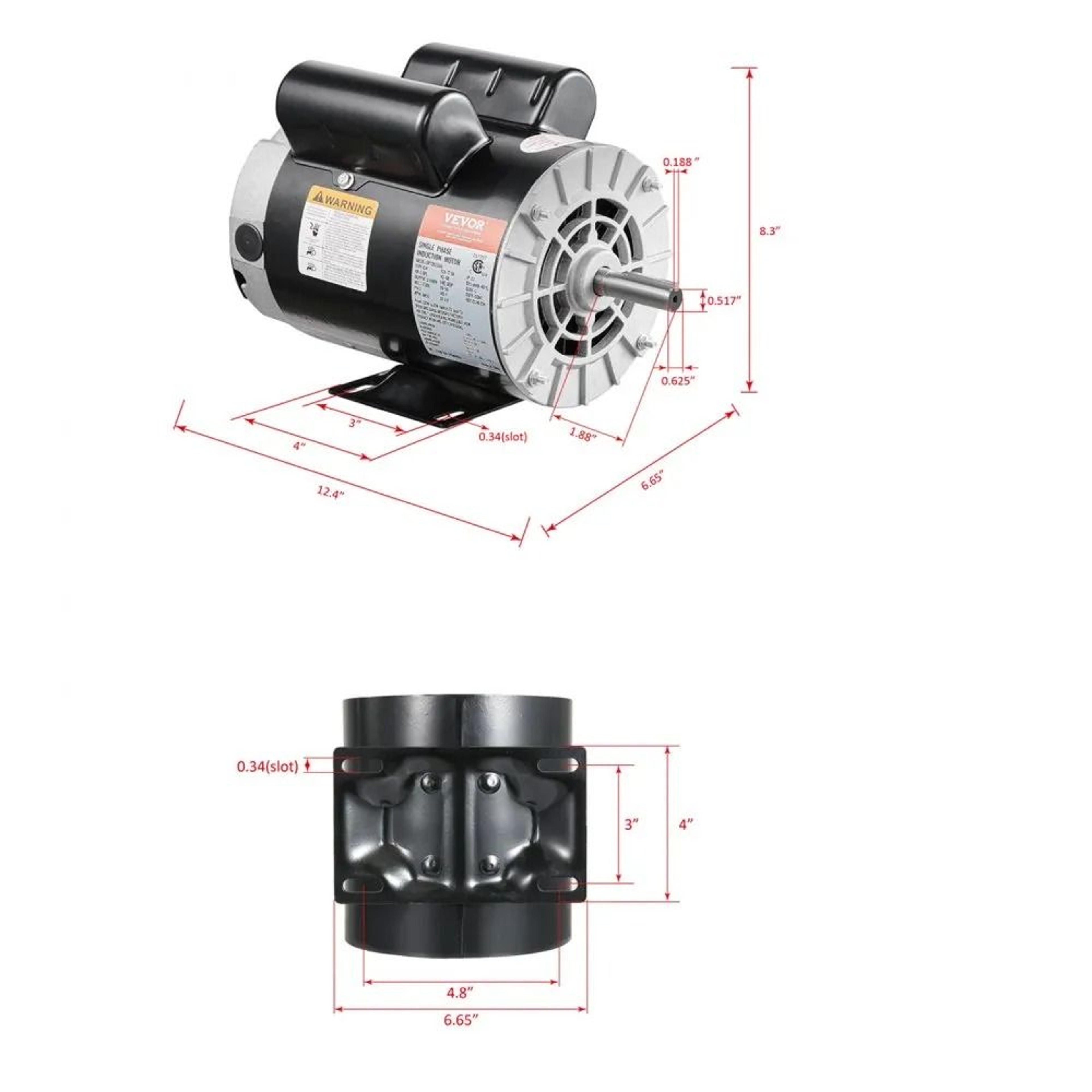

• Standardized 56 Frame Shaft: Features a 5/8-inch keyed shaft with a 1.88-inch shaft length and 0.188-inch keyway size for reliable compatibility.

• Fast Heat Dissipation: Designed for rapid thermal relief during extended usage.

Specifications

• Voltage: 230V (60Hz)

• Current: 17.2A

• Rotation Speed: 3450 RPM

• Frame Size: 56 Frame

• Shaft Diameter: 5/8 in Keyed Shaft

• Shaft Length: 1.88 in

• Keyway Size: 0.188 in

• Enclosure: Open Drip-Proof (ODP)

• Material: Steel

• Weight: 34.3 lb (15.55 kg)

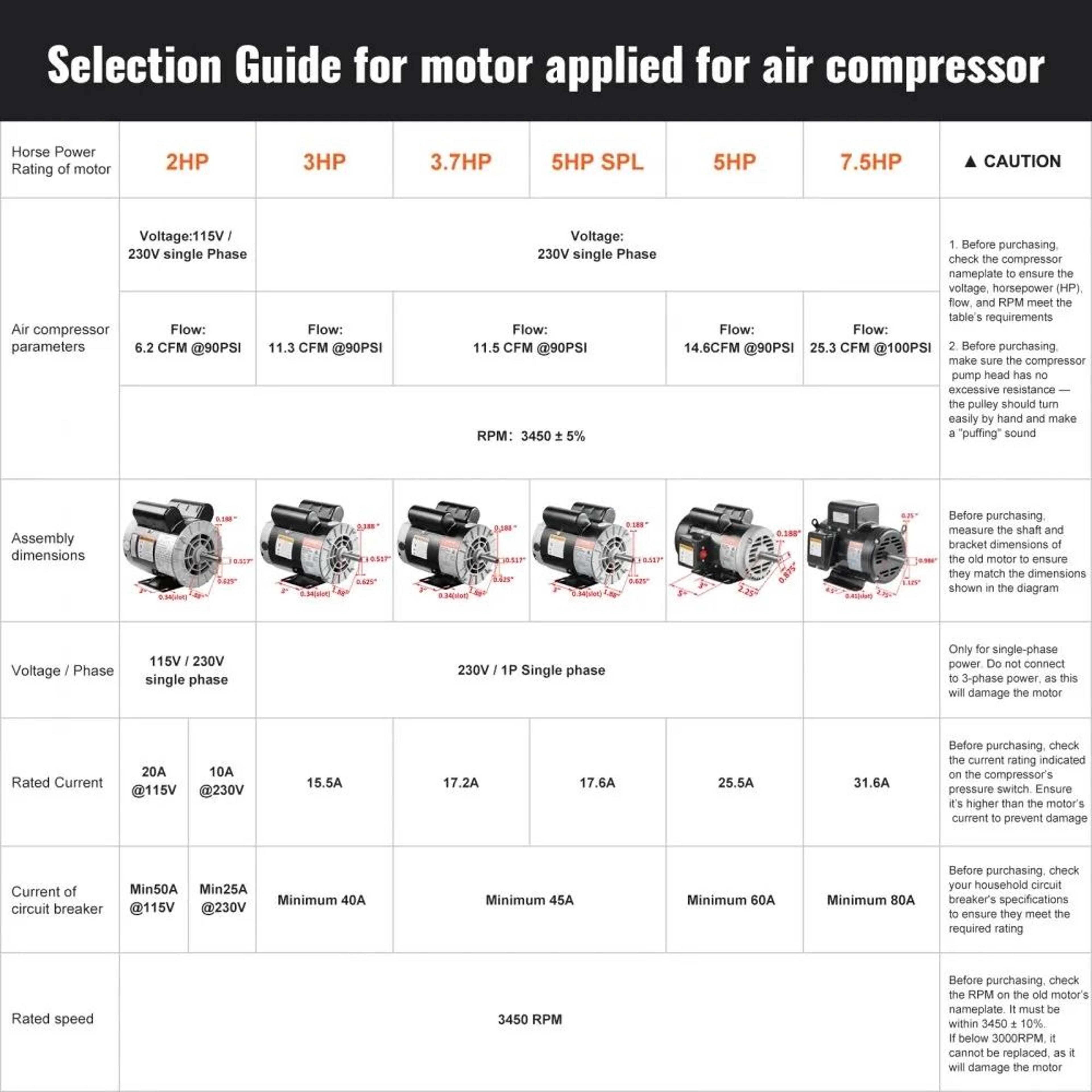

• Main Components: Single phase motor (requires a customer-supplied 45 amp circuit breaker)

Why Choose Our 3.7HP Air Compressor Motor 3450RPM 230V Single Phase 56 Frame Reversible Electric Motor

This motor combines solid steel construction with quick heat dissipation for dependable, long-term operation. Its reversible rotation setup simplifies installation, allowing seamless wiring adjustments to fit your exact setup.

Perfect For

Ideal for trade professionals and workshop operators needing a durable replacement power source for compatible air compressor systems in clean and dry indoor environments.

Reliable Power for Your Equipment

Upgrade your workshop hardware with a strong, high-performance motor designed for dependable long-term service. Order today to keep your heavy-duty tools operating smoothly.
