4-Wire Push-In Electrical Wire Connectors

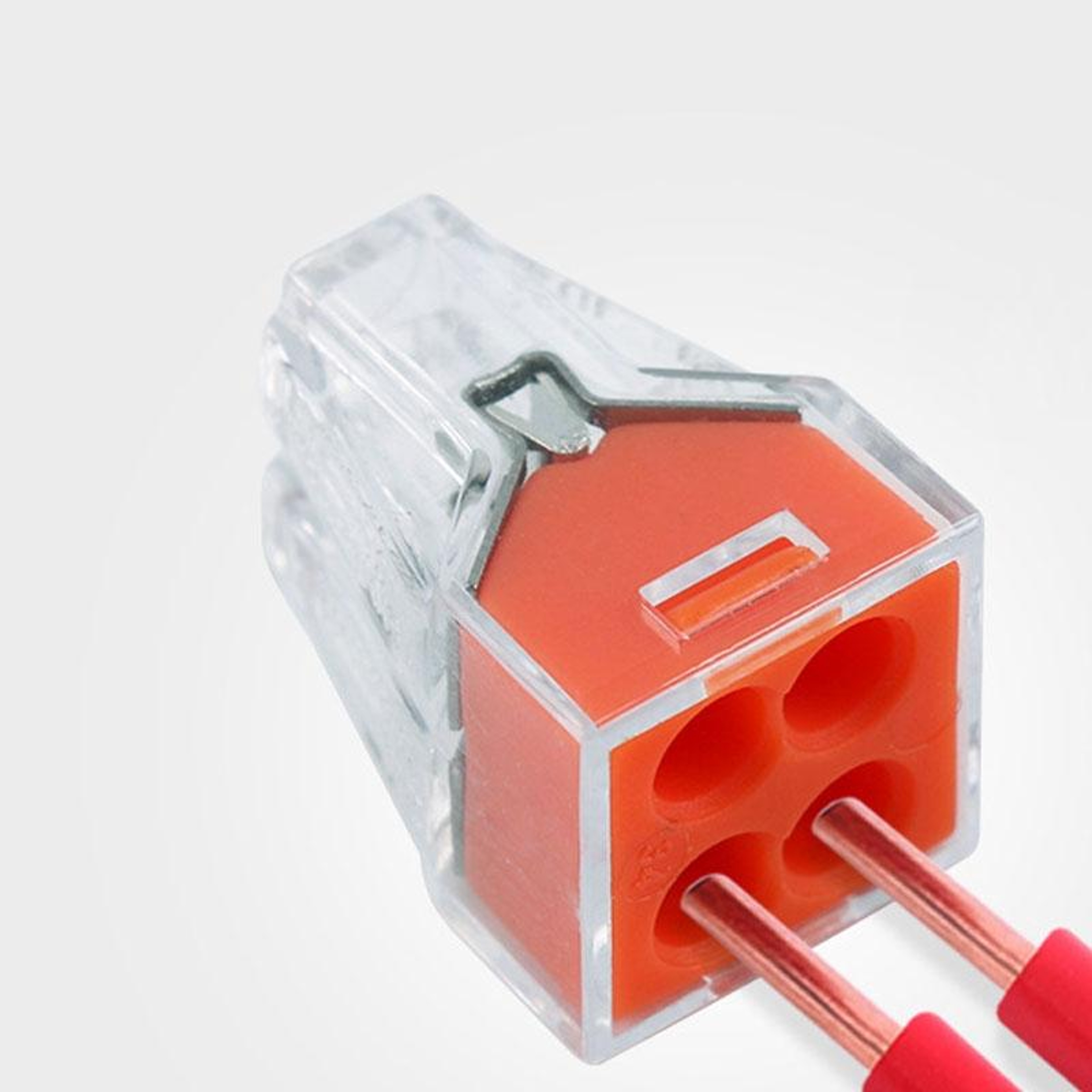

Connect electrical wires with the VSE-104 4-wire push-in connectors, designed for use with single-strand solid wires measuring 0.75–2.5 mm. Each connector features copper contacts, a plug-in terminal design, and a compact housing made from PC and PA66 insulating materials. This 10-piece set provides a practical solution for compatible electrical wire connections.

Key Features

• 4-Wire Connection: Features four connection points for accommodating compatible solid electrical wires.

• Push-In Terminal Design: The 773-104 plug-in interface provides a convenient connection method for supported wire sizes.

• Copper Contacts: Copper contact material provides an electrically conductive connection surface.

• Electrical Ratings: Rated for 400V, 24A, and 4kW for use within the specified electrical limits.

• Compact Construction: The small connector body is suitable for applications where connection space is limited.



Specifications

• Product Type: Push-in electrical wire connector terminal

• Model: VSE-104

• Number of Cores: 4

• Interface Type: Plug-in 773-104

• Contact Material: Copper

• Insulator Material: PC and PA66

• Dimensions: 0.77 × 0.74 × 0.52 inches (19.5 × 18.8 × 13.1 mm)

• Rated Voltage: 400V

• Rated Current: 24A

• Rated Power: 4kW

• Compatible Wire Size: 0.75–2.5 mm single-strand solid wire

• Production Process: Injection molding

• Application: Electrical wire connections

• Quantity: 10 connectors



The VSE-104 push-in wire connectors combine compact dimensions, copper contacts, and four connection points for practical wiring applications using compatible solid wires.
