42-Inch Structured Media Enclosure with Vented Hinged Door and Key Lock

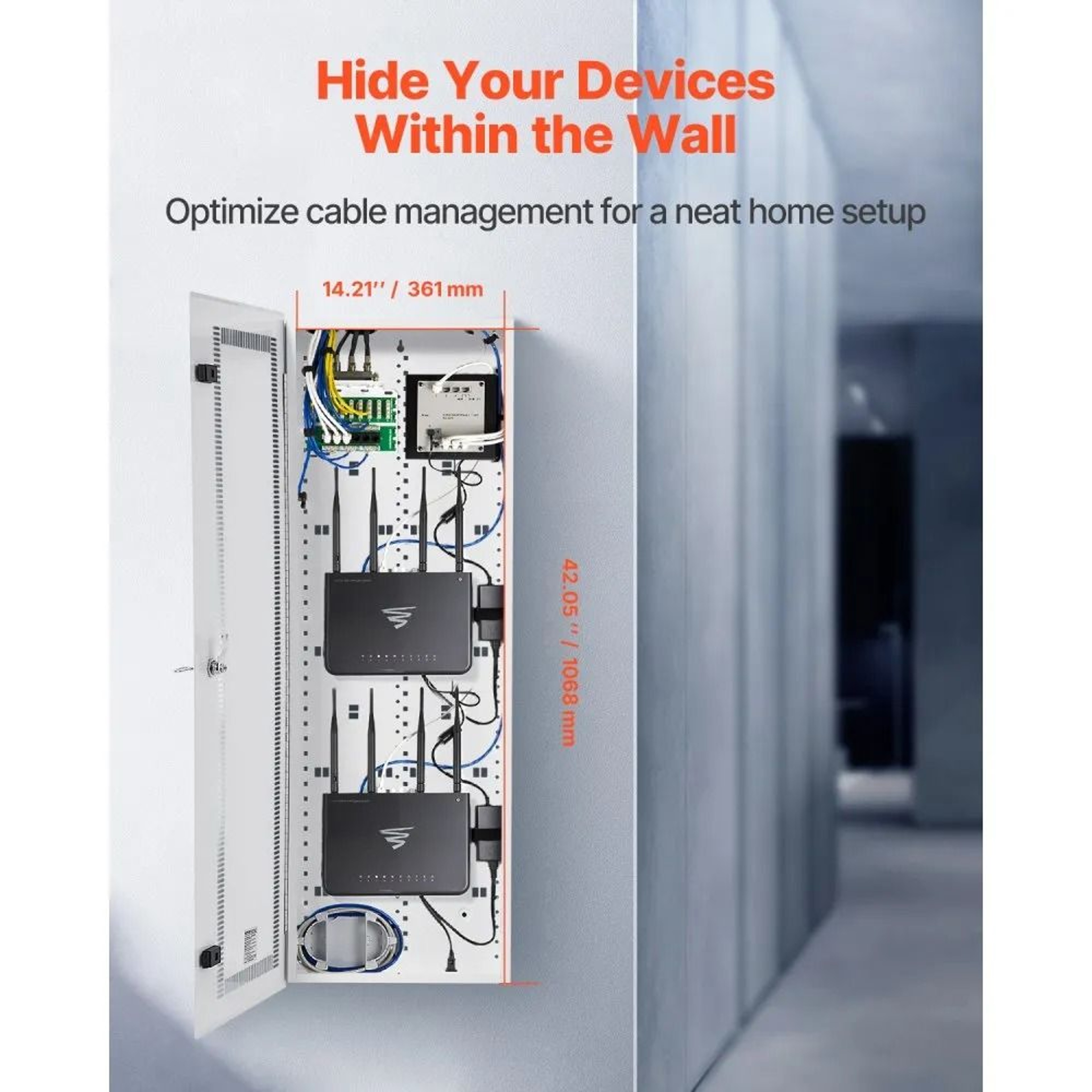

Organize your home entertainment and networking equipment with this 42-inch structured media enclosure, designed for recessed in-wall installation and efficient cable management. Built from durable cold-rolled steel, this media cabinet accommodates routers, network switches, streaming devices, soundbars, and AV receivers. Its vented hinged door, integrated cable knockouts, and locking mechanism provide convenient access while keeping equipment neatly concealed.

Key Features

• Spacious 42-Inch Design: Provides dedicated storage for networking and entertainment equipment, helping reduce visible clutter and maintain an organized setup.

• Flexible Cable Management: Features three 2.36-inch (60 mm), four 1.97-inch (50 mm), and six 1.57-inch (40 mm) cable knockouts, plus two reserved knockouts for outlet boxes.

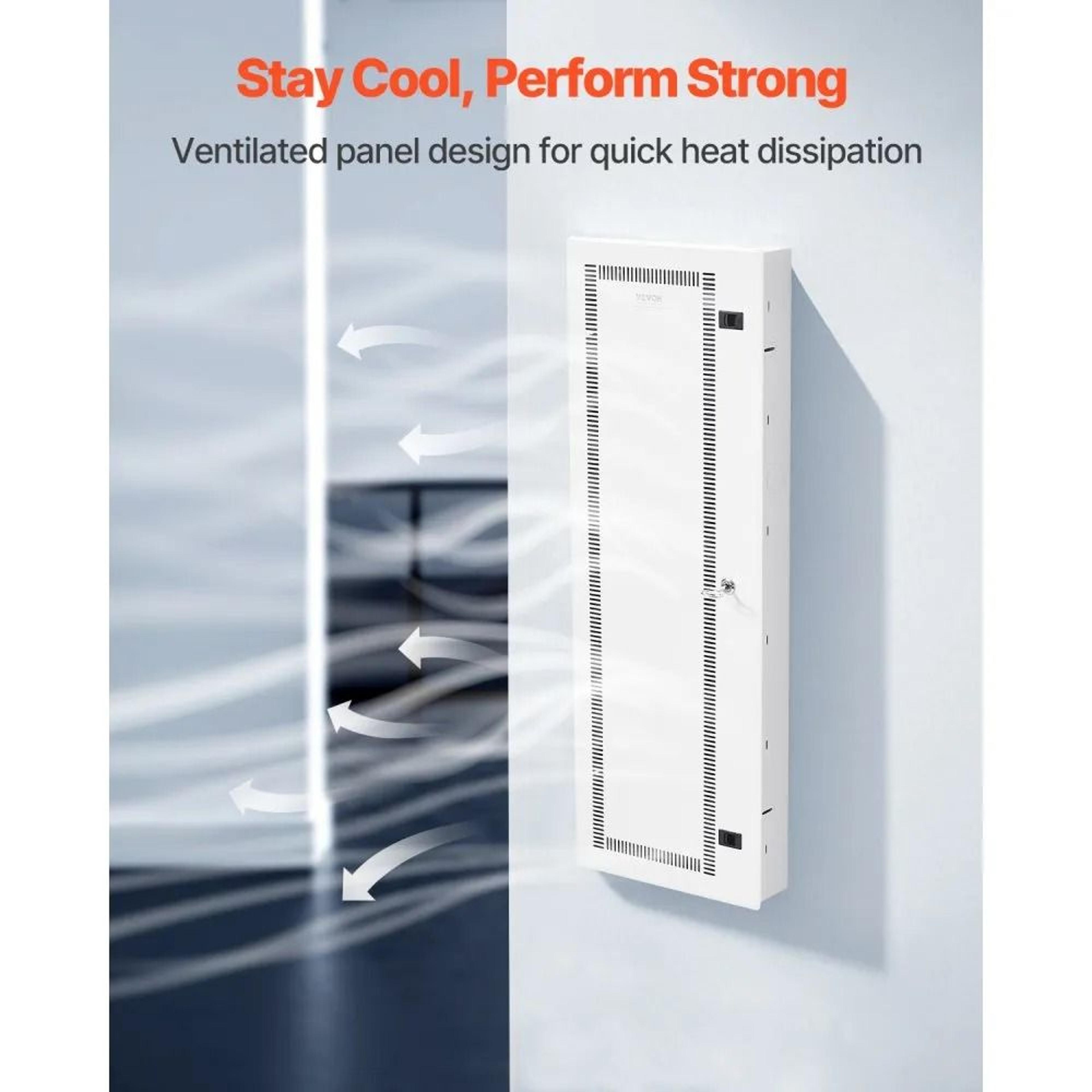

• Durable Steel Construction: Cold-rolled steel provides a sturdy enclosure for electronic equipment while supporting heat dissipation.

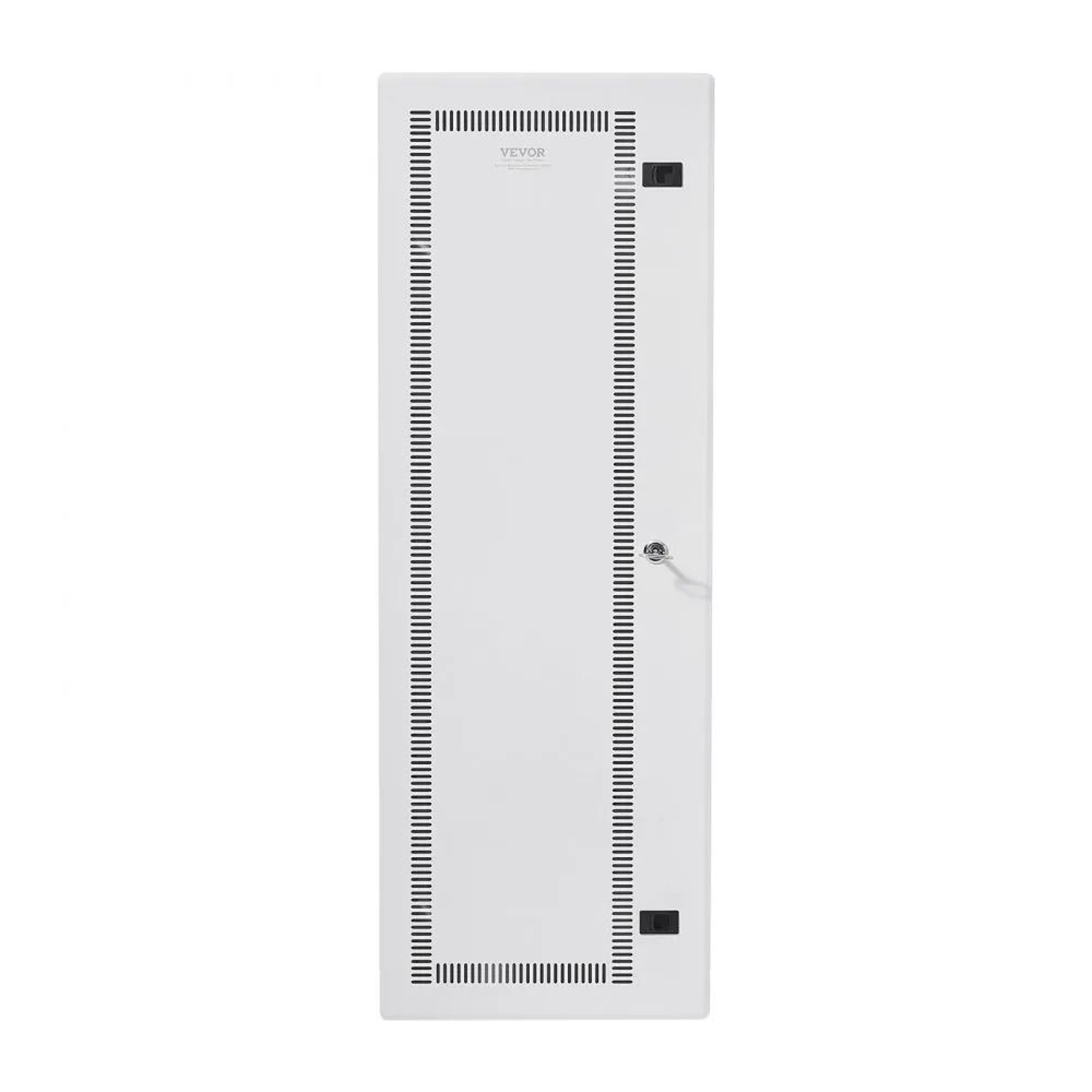

• Vented Hinged Door with Lock: Opens up to 120 degrees for convenient equipment access. The key lock helps prevent unauthorized access and accidental tampering, while the door conceals uneven wall cut edges.

• Recessed Wall Installation: Designed for 16-inch stud spacing and suitable for both new construction and renovation projects, creating a clean, integrated appearance.

Specifications

• Product Type: Recessed structured media enclosure

• Material: Cold-rolled steel

• Product Height: 42 inches

• Product Dimensions: 42.91 × 15.08 × 3.7 inches (1090 × 383 × 94 mm)

• Cutout Dimensions: 42.13 × 14.29 × 3.66 inches (1070 × 363 × 93 mm)

• Weight: 19.69 lbs (8.94 kg)

• Stud Spacing: 16 inches

• Door Opening Angle: Up to 120 degrees

• Door Features: Vented hinged design with key lock

• Cable Knockouts: 13 cable knockouts and 2 reserved outlet box knockouts

• Installation: Recessed in-wall mounting

Create a cleaner, more organized entertainment or networking setup with this durable 42-inch structured wiring cabinet.
