48-Inch Heavy Duty Locking Drawer Slides with Full Extension and 500 lb Capacity

Upgrade your storage setup with these 48-inch heavy-duty locking drawer slides, designed for smooth movement, secure positioning, and reliable support. Made from high-hardness steel with a galvanized finish, these full-extension ball bearing drawer slides are ideal for cabinets, industrial drawers, RVs, trucks, shelving, and vending machines. The three-fold design provides convenient access to the entire drawer.

Key Features

• Heavy-Duty Steel Construction: High-hardness steel supports loads up to 500 lbs, while the galvanized finish helps resist rust and wear for long-term use.

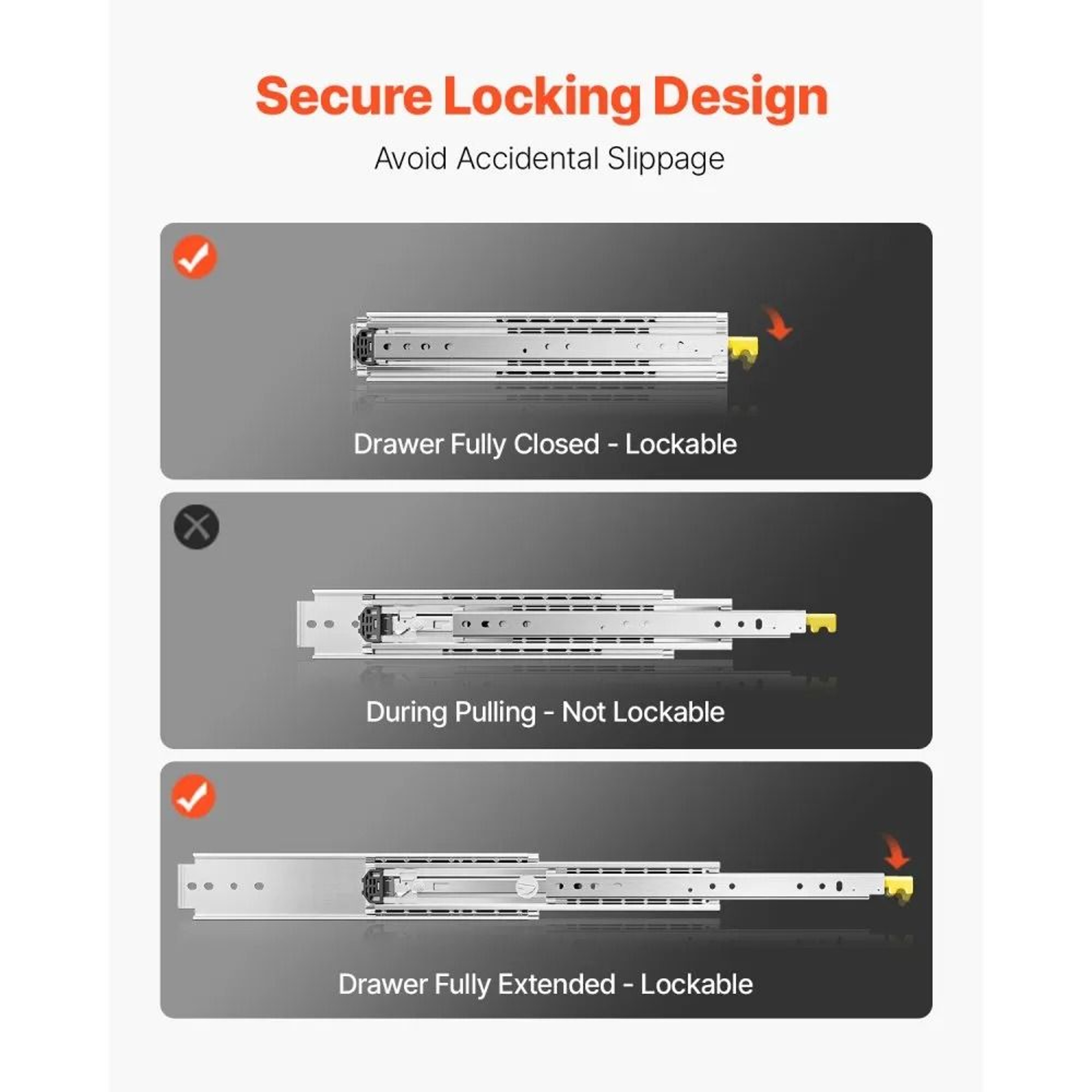

• Single Locking Mechanism: A press-operated locking system helps keep drawers securely positioned, especially during movement or bumpy rides.

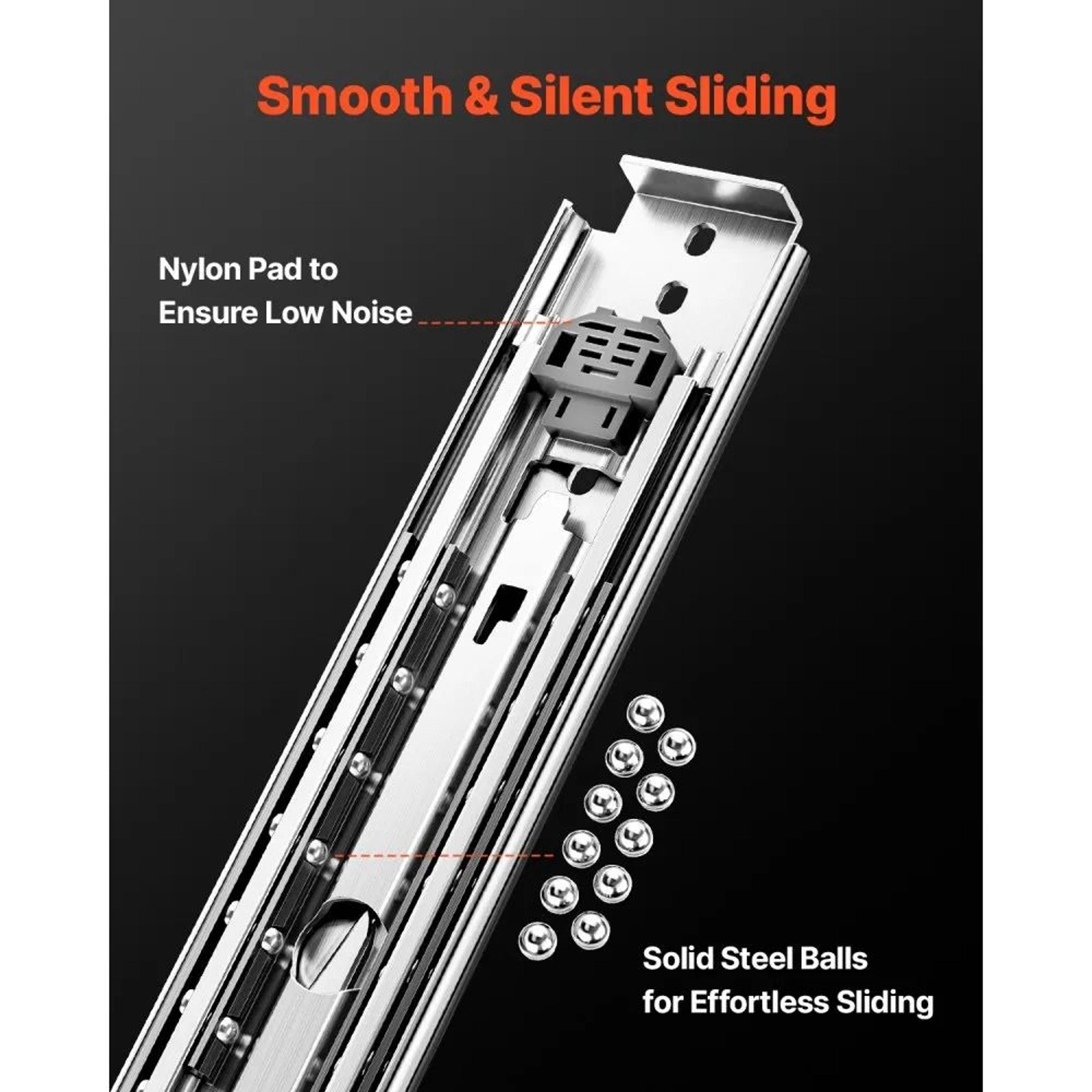

• Smooth and Quiet Sliding: Double-row ball bearings allow drawers to open and close smoothly, while nylon cushioning reduces noise and bouncing.

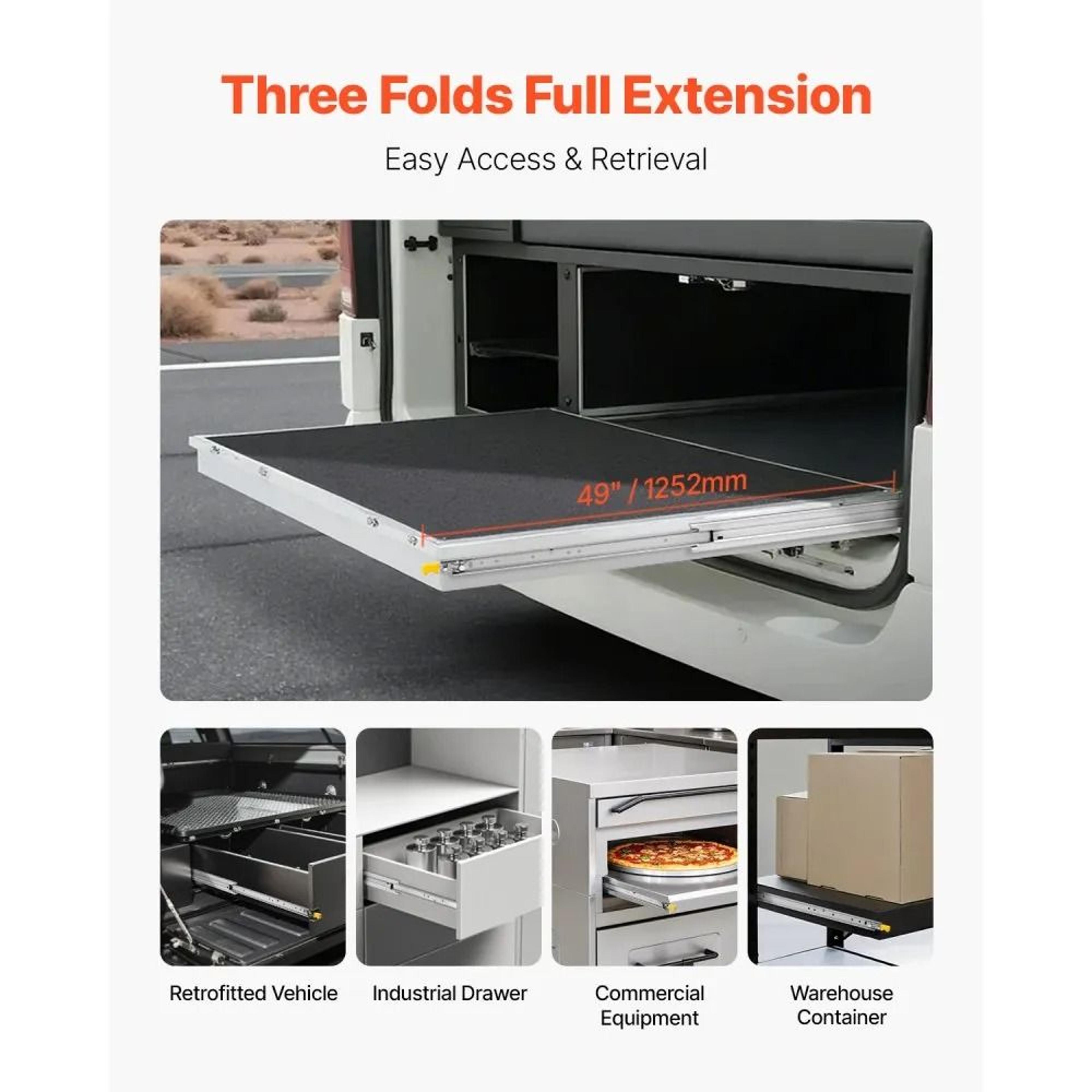

• Full Extension Design: Three-fold telescoping rails extend up to 48 inches, providing easier access to items stored toward the back of deep drawers.

• Versatile Applications: Suitable for industrial storage, cabinets, shelving, RV drawers, truck compartments, and vending machines.

Specifications

• Material: High-hardness steel

• Finish: Galvanized

• Slide Type: Side-mount, three-fold full extension

• Locking System: Single lock

• Bearing Type: Double-row ball bearing

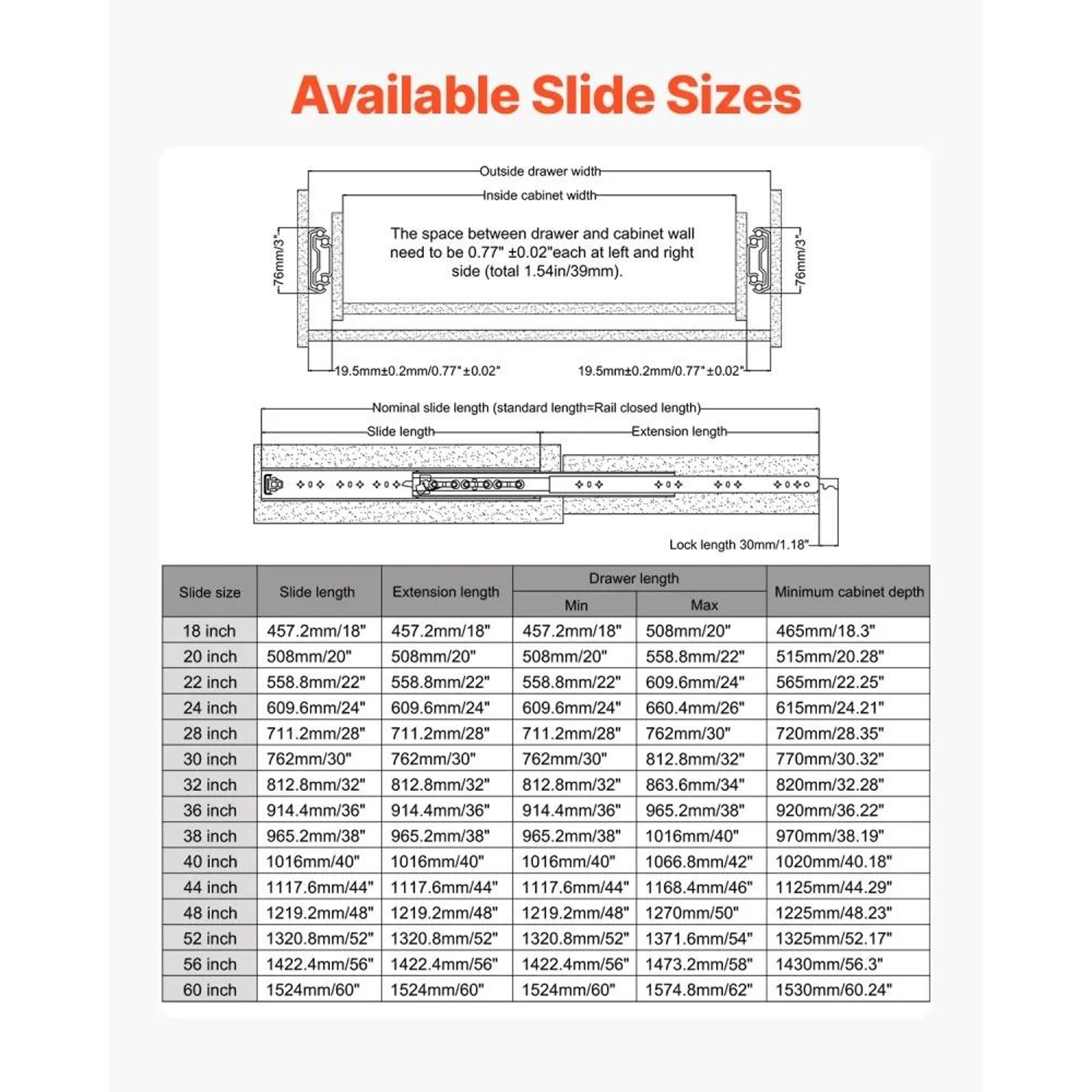

• Slide Dimensions: 49.3 × 3 × 0.77 inches (1252 × 76 × 19.5 mm)

• Suitable Drawer Length: 48.5 inches (1231 mm)

• Extension Length: 48 inches (1221 mm)

• Maximum Load Capacity: 500 lbs (226.8 kg)

• Load Capacity When Fully Extended: 243 lbs (110.22 kg)

• Net Weight: 26.68 lbs (12.1 kg)

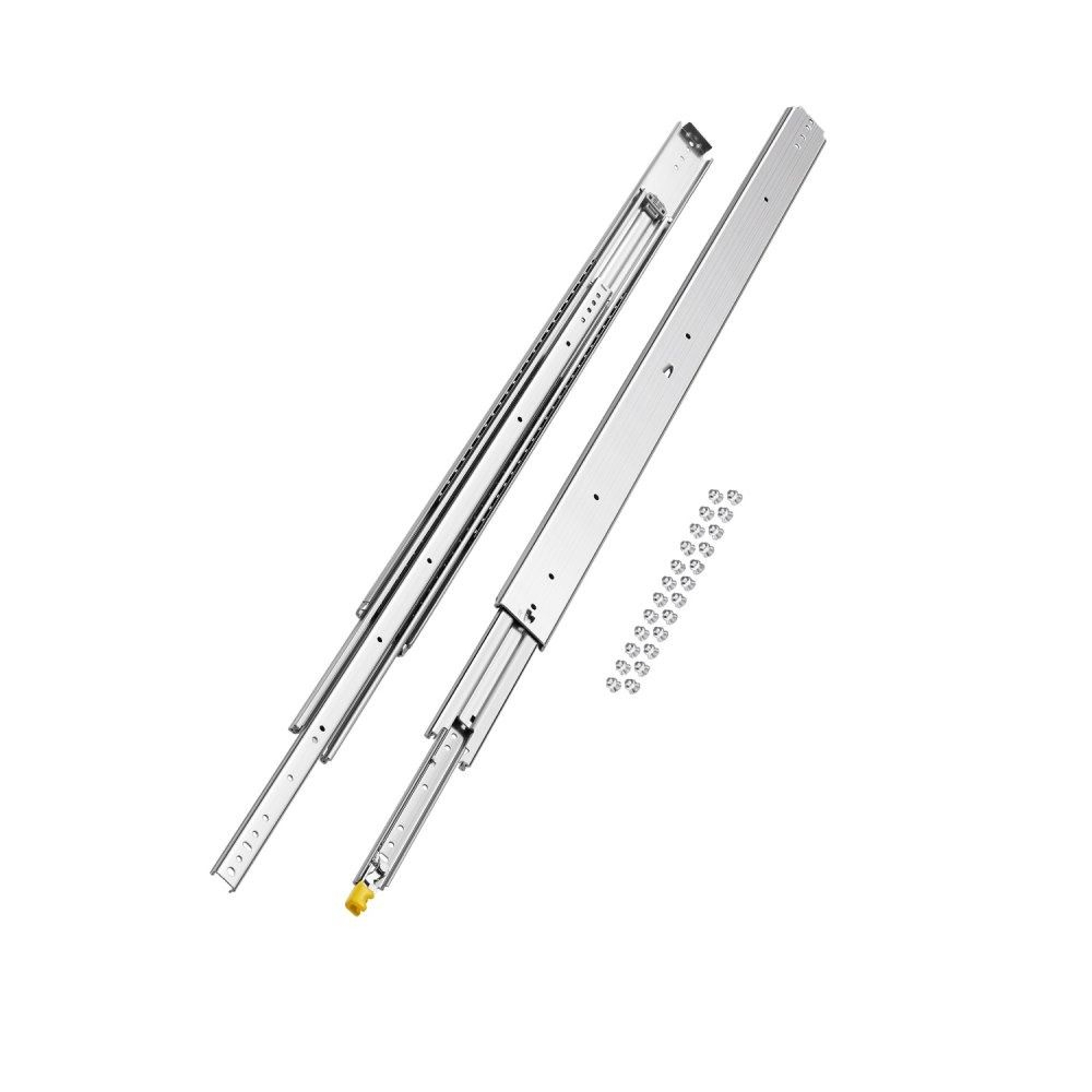

• Package Includes: 1 pair of locking drawer slides

These heavy-duty full-extension drawer slides combine dependable load support, smooth operation, and convenient locking for demanding storage applications.
