Electric Lifting Column System with 260 lbs Capacity and Adjustable Height

Upgrade your workspace with this electric lifting column system, designed for smooth, controlled height adjustments and reliable lifting performance. Built with high-strength aluminum alloy and thickened steel plates, this motorized lift table supports up to 260 lbs with dual columns and offers an adjustable height range of 14.2–31.1 inches. Its versatile design is ideal for customized coffee tables, photography stands, laboratory equipment, and adjustable work surfaces.

Key Features

• Heavy-Duty Lifting Capacity: Supports up to 260 lbs with dual columns or 176 lbs with a single column, providing dependable lifting for various applications.

• Smooth Motorized Adjustment: A high-performance motor delivers quiet, stable lifting and lowering at a no-load speed of approximately 0.3 inches per second (8 mm/s).

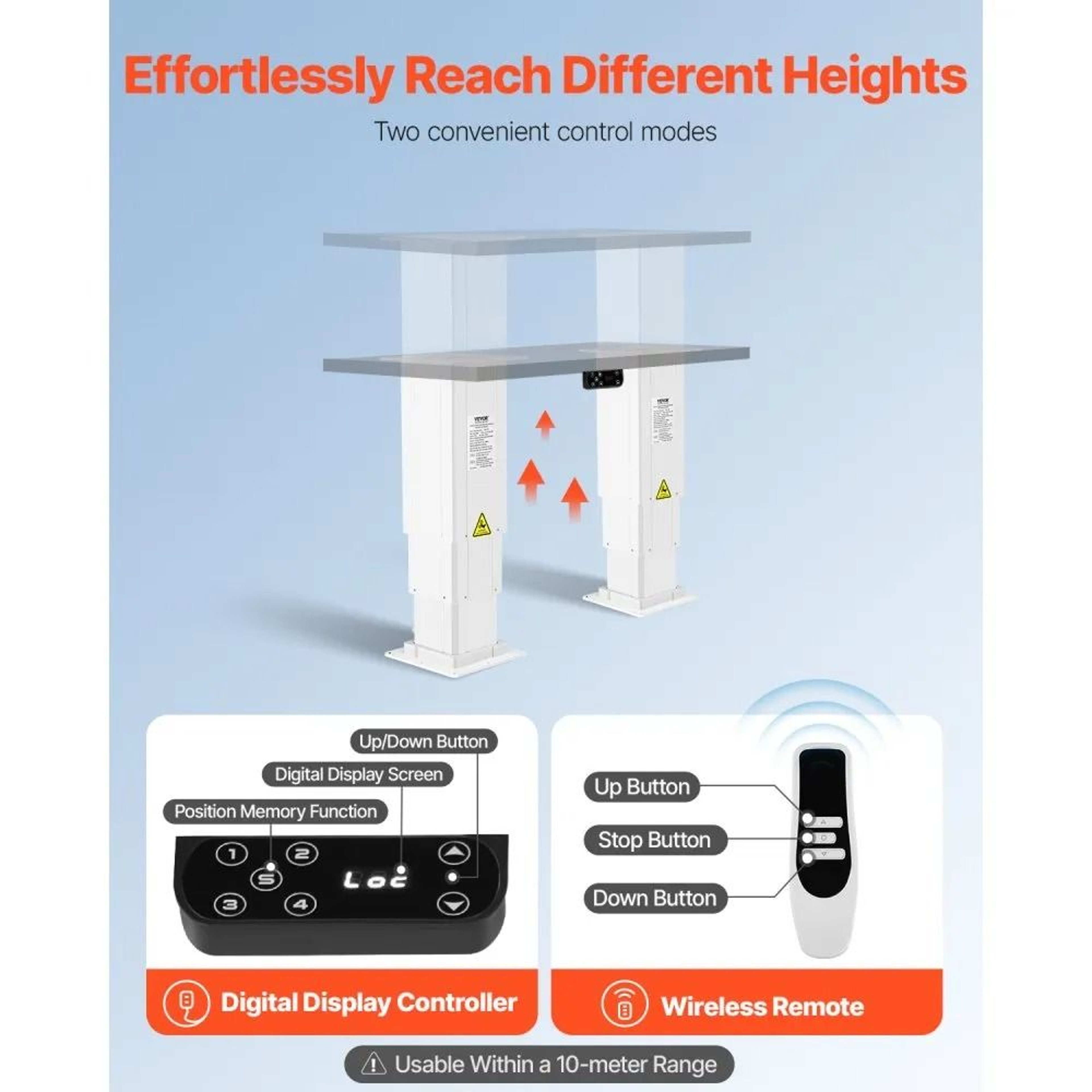

• Dual Control Options: Adjust the height using a wired controller with four programmable height presets or a wireless remote with an operating range of up to 32.8 feet (10 meters).

• Synchronized Height Control: The dual-column Hall synchronization system keeps both lifting columns aligned during movement, helping prevent uneven lifting and tilting.

• Automatic Safety Protection: Built-in overload and obstruction protection automatically stops operation when excessive weight or resistance is detected, helping protect the motor and lifting mechanism.

Specifications

• Material: High-strength aluminum alloy and thickened steel plates

• Color: Silver

• Lifting Mechanism: Electric motorized three-stage telescopic column

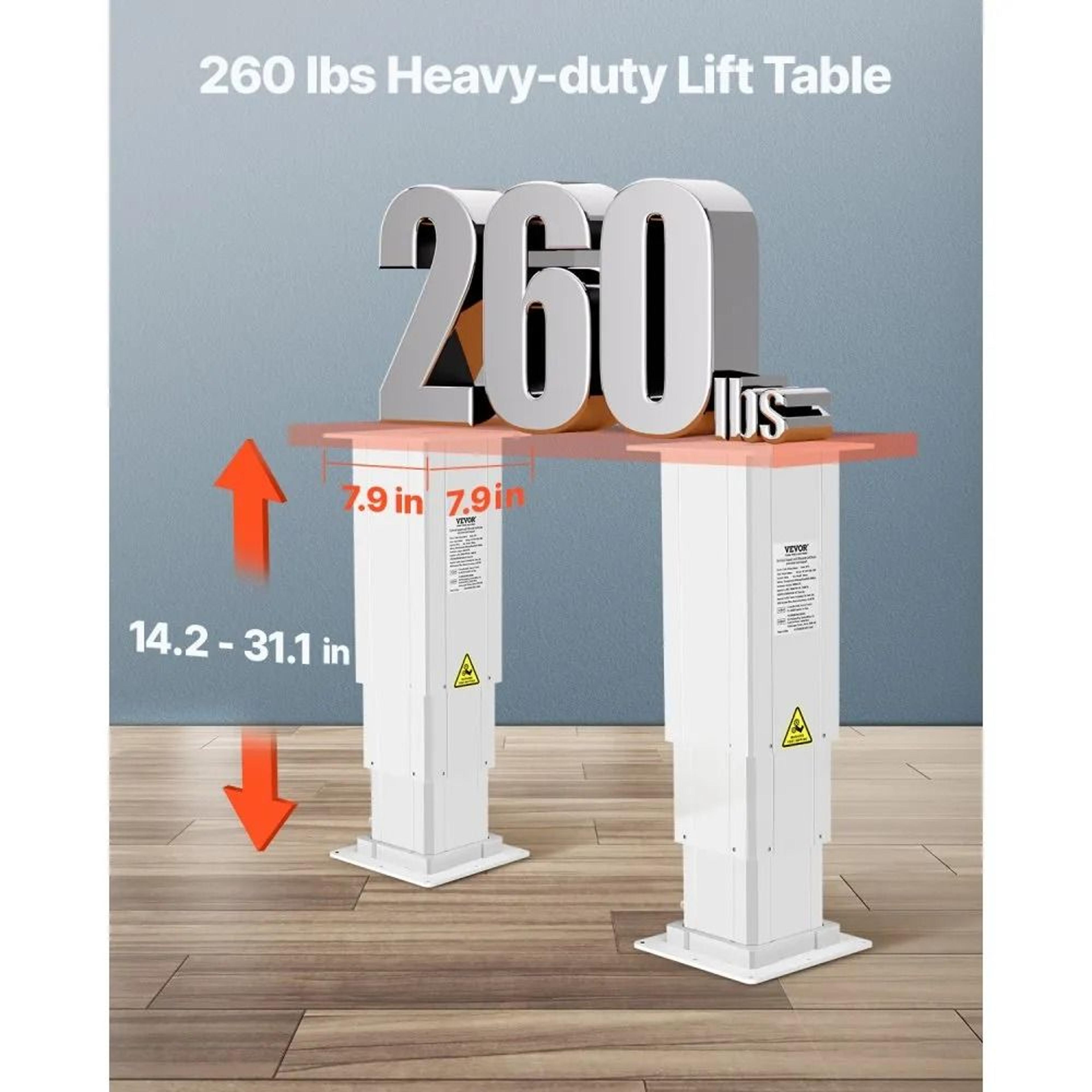

• Dual-Column Load Capacity: 260 lbs (120 kg)

• Single-Column Load Capacity: 176 lbs

• Adjustable Height: 14.2–31.1 inches (360–790 mm)

• Single-Column Tabletop Dimensions: 7.9 × 7.9 inches (200 × 200 mm)

• Single-Column Widths: 5.7 / 5.3 / 4.8 inches (144 / 134 / 122.5 mm), from top to bottom

• No-Load Lifting Speed: 0.3 inches/second (8 mm/s)

• Wireless Remote Range: Up to 32.8 feet (10 meters)

• Wired Controller: Four programmable height memory settings

• Safety Features: Automatic overload and obstruction shutdown

Create a customizable lifting solution with precise height adjustments, synchronized movement, and convenient electric controls for home, studio, or laboratory applications.
