Heavy Duty Locking Drawer Slides High lb Capacity Full Extension Ball Bearing Rails

Upgrade your storage system with these heavy-duty locking drawer slides, designed for smooth operation, secure positioning, and reliable support. Built from high-hardness steel with a galvanized finish, these full-extension drawer slides support loads up to 500 lbs and feature a double-lock mechanism for added stability. Ideal for cabinets, industrial drawers, RVs, trucks, shelving, and vending machines.

Key Features

• 500 lb Load Capacity: Heavy-duty steel construction supports up to 500 lbs when retracted and 343 lbs when fully extended, making these slides suitable for demanding storage applications.

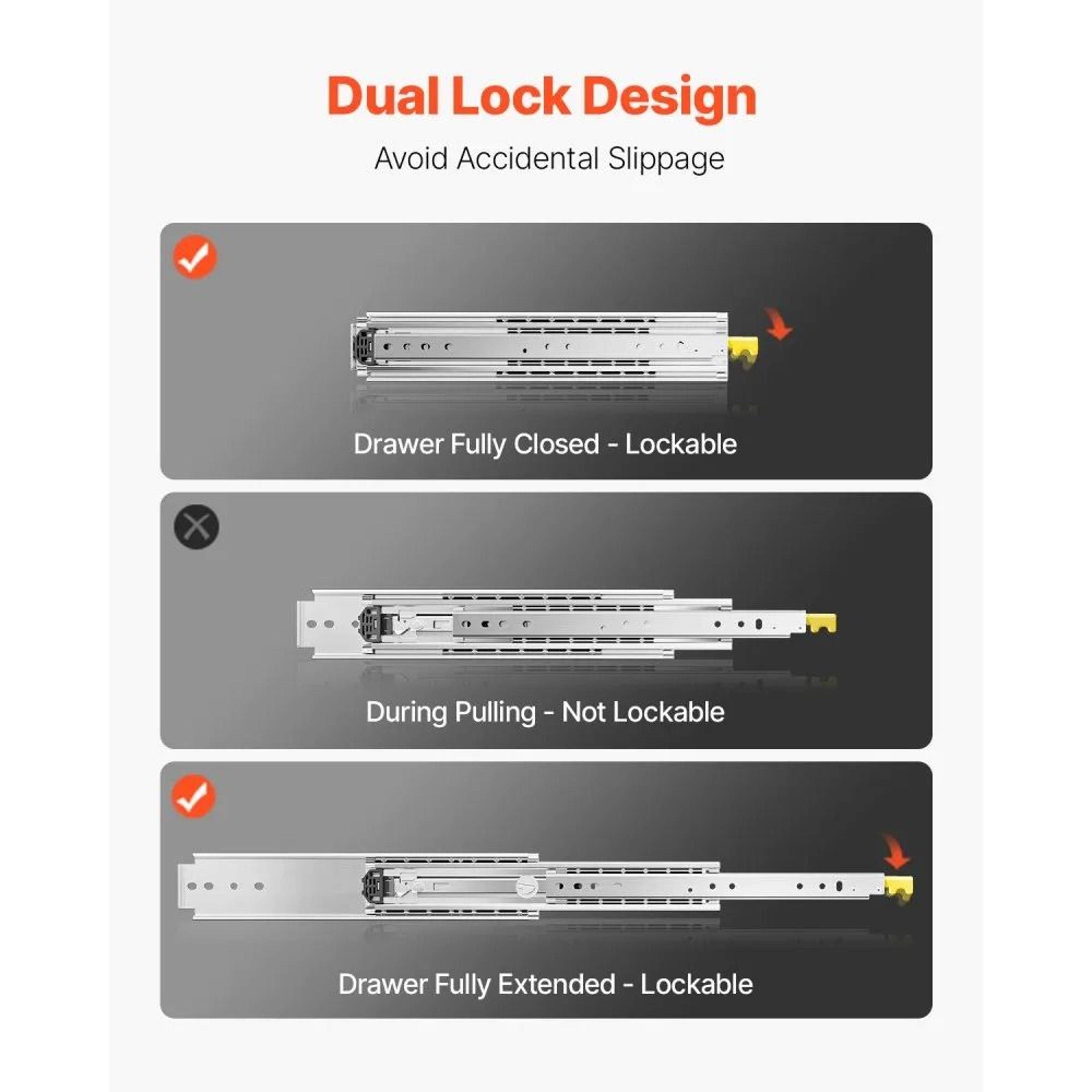

• Double-Lock Security: Dual locking mechanisms help keep drawers securely positioned, reducing unwanted movement during travel or on bumpy roads.

• Smooth & Quiet Sliding: Double-row ball bearings provide smooth opening and closing, while nylon cushioning helps minimize noise and bouncing.

• Full Extension Design: Three-section telescoping rails allow drawers to extend fully, providing convenient access to stored items.

• Galvanized Steel Construction: The wear-resistant and rust-resistant finish supports durability in frequently used storage systems.

Specifications

• Material: High-hardness steel

• Finish: Galvanized

• Load Capacity: 500 lbs (226.8 kg)

• Fully Extended Load Capacity: 343 lbs (155.58 kg)

• Slide Type: Side-mount with double-lock mechanism

• Extension Type: 3-fold full extension

• Bearing System: Double-row ball bearings

• Available Sizes: 18, 20, 22, 28, 30, 32, 36, 38, 40, 44, 48, 52, 56, and 60 inches

• Reference Slide Dimensions: 31.2 x 3 x 0.77 inches (793 x 76 x 19.5 mm)

• Reference Extension Length: 30 inches (762 mm)

• Reference Suitable Drawer Length: 30.5 inches (774 mm)

• Reference Net Weight: 16.76 lbs (7.6 kg)

• Package Includes: 1 pair of locking drawer slides

Whether upgrading workshop storage, industrial cabinets, or RV drawers, these full-extension locking drawer slides combine heavy-duty support with smooth operation and secure positioning.
