Heavy Duty Locking Drawer Slides with and Full Extension

Upgrade your storage with these heavy-duty locking drawer slides, designed for smooth movement and dependable support in cabinets, industrial drawers, RVs, trucks, and shelving. Built from high-hardness steel with a galvanized finish, these side-mount drawer slides offer wear and rust resistance. The double-lock mechanism and full-extension design provide added stability and convenient access to stored items.

Key Features

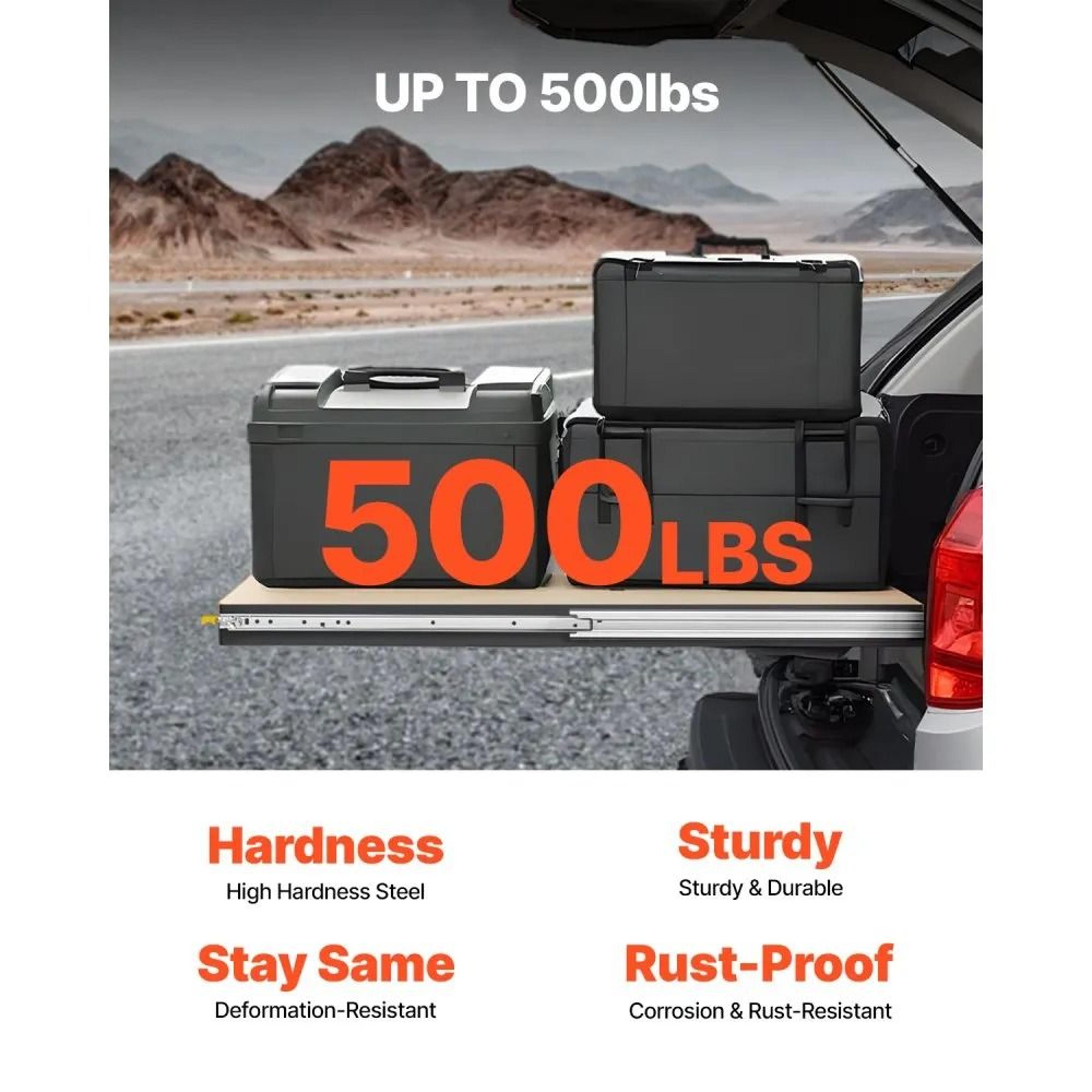

• 500 lb Heavy-Duty Capacity: Strong steel construction supports loads up to 500 lbs, with a rated capacity of 266 lbs when fully extended.

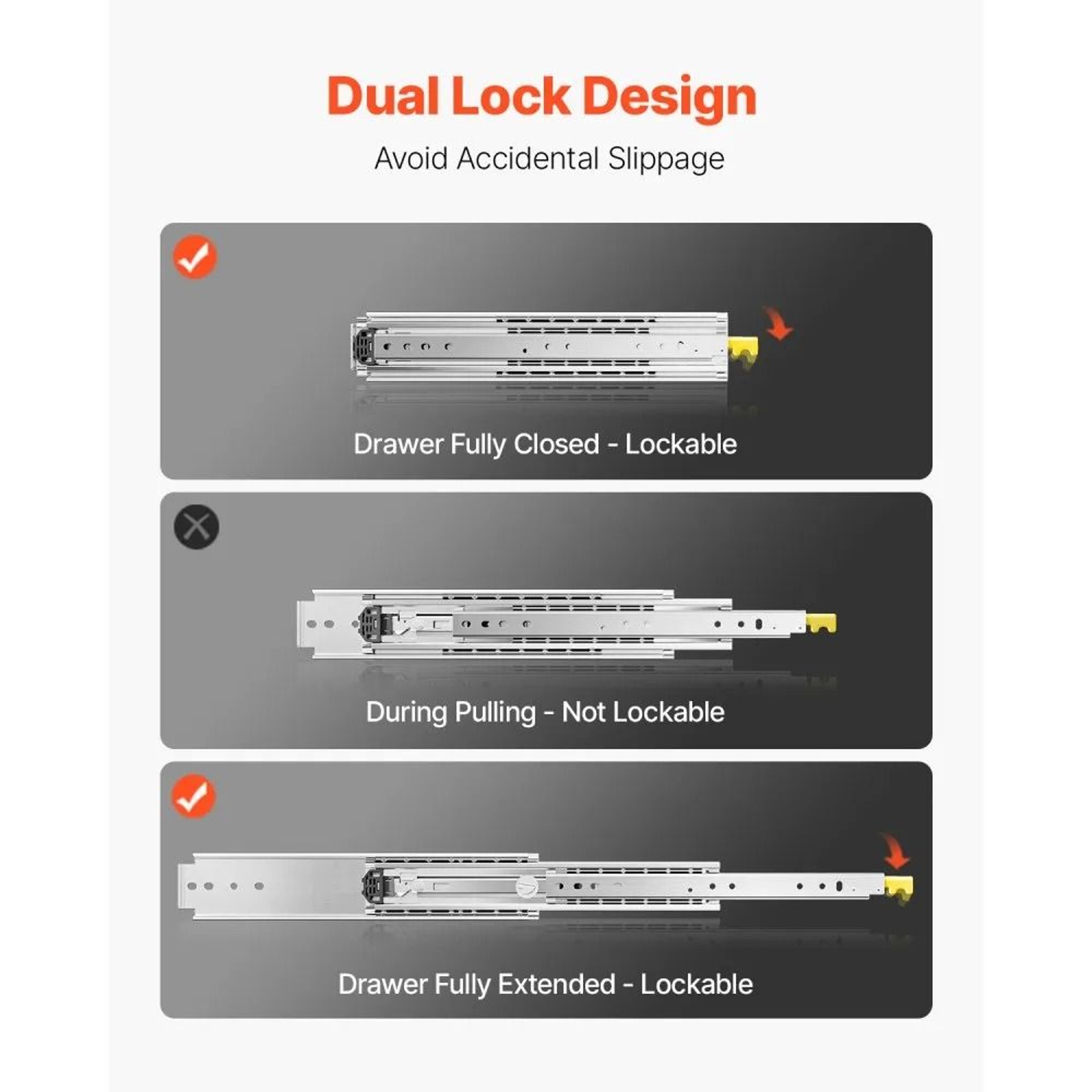

• Double-Lock Security: Dual locking mechanisms help hold drawers securely in position, reducing unwanted movement during travel or on bumpy roads.

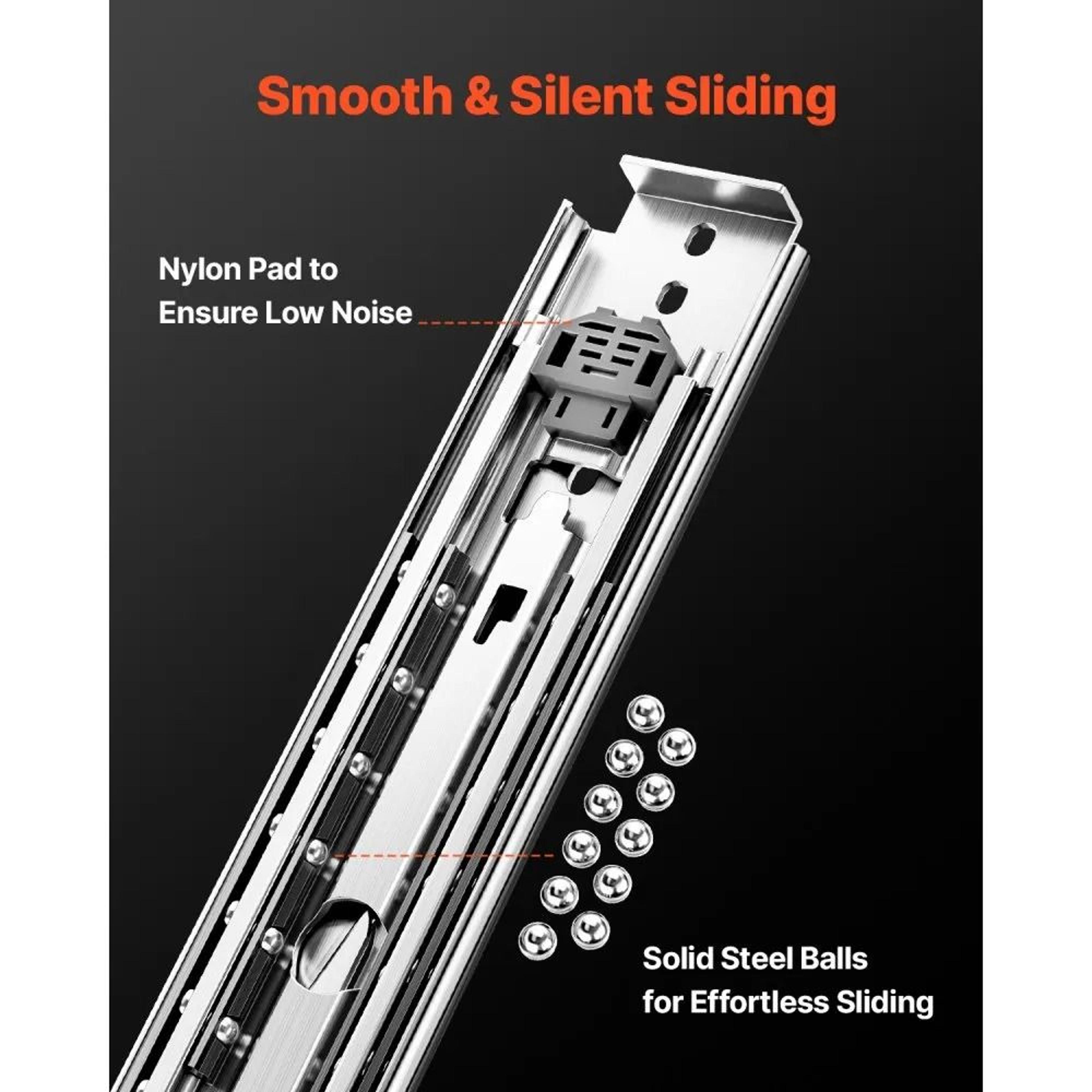

• Smooth and Quiet Operation: Double-row ball bearings provide consistent sliding, while nylon cushioning helps reduce noise and bouncing.

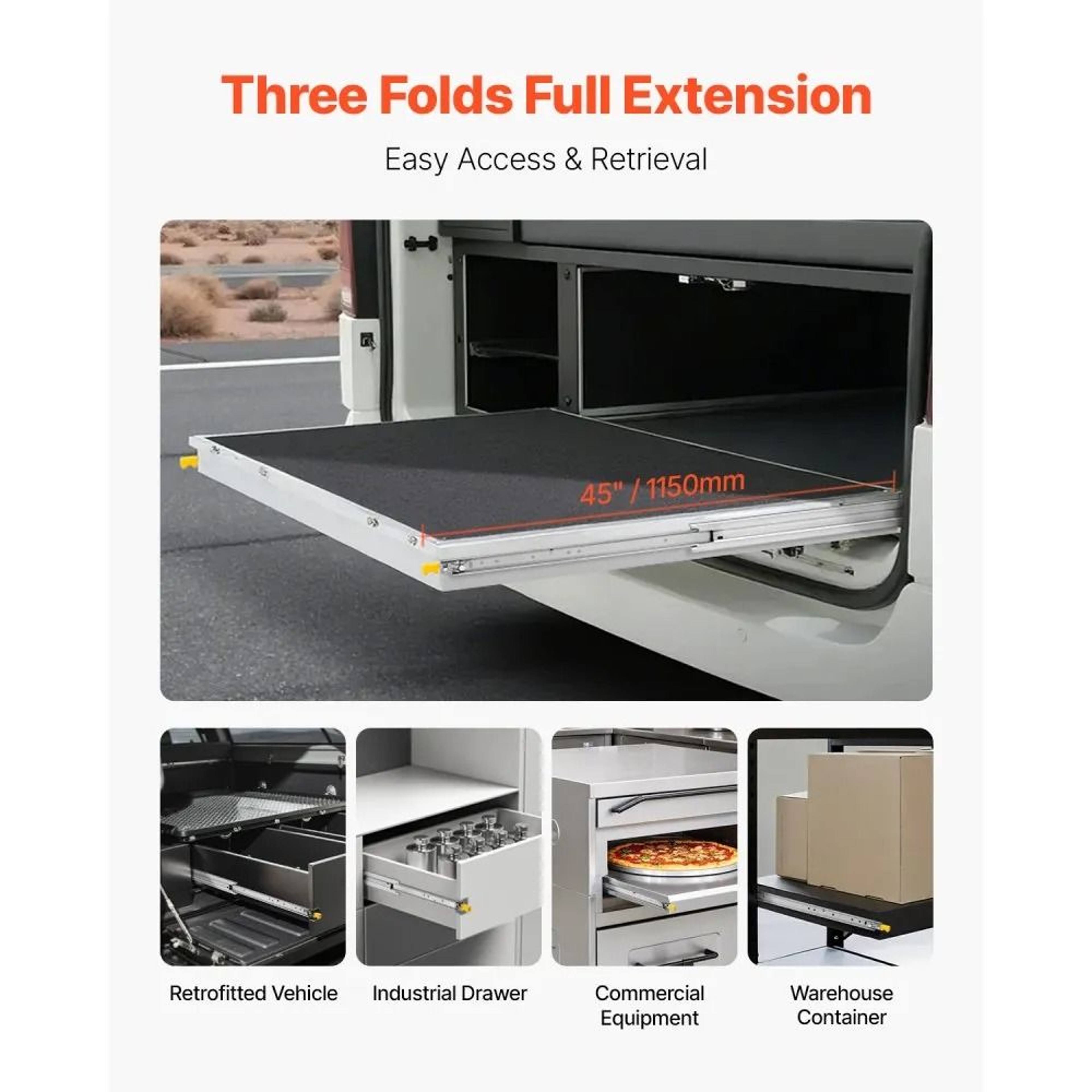

• Full-Extension Access: The three-fold telescoping design allows the drawer to extend fully, making it easier to reach items stored toward the back.

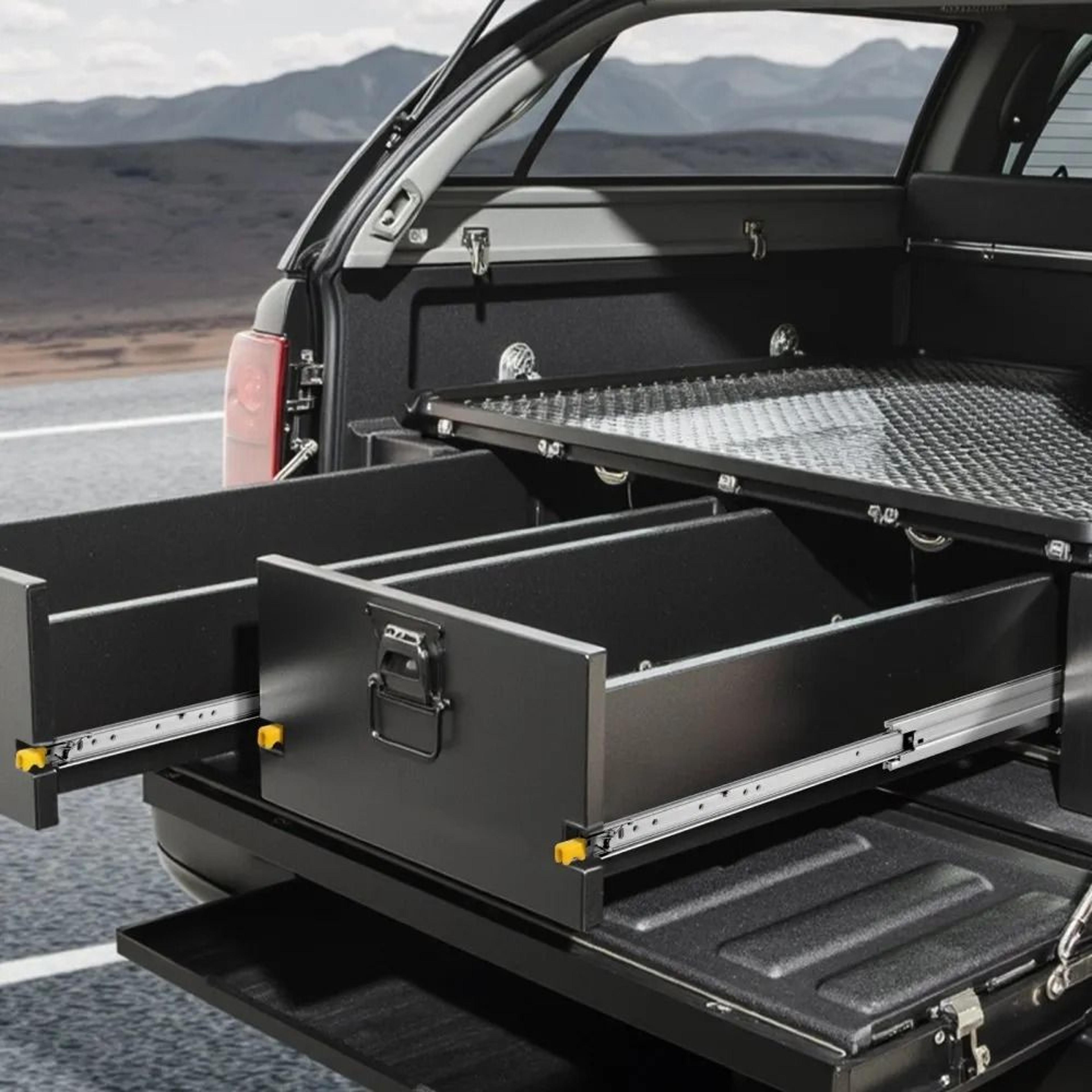

• Durable Galvanized Finish: Rust- and wear-resistant construction supports long-term use in cabinets, RV storage compartments, industrial drawers, and utility applications.

Specifications

• Material: High-hardness steel

• Finish: Galvanized

• Mounting Type: Side mount

• Slide Mechanism: Double-row ball bearing

• Locking System: Double lock

• Extension Type: Three-fold full extension

• Maximum Load Capacity: 500 lbs

• Load Capacity When Fully Extended: 266 lbs

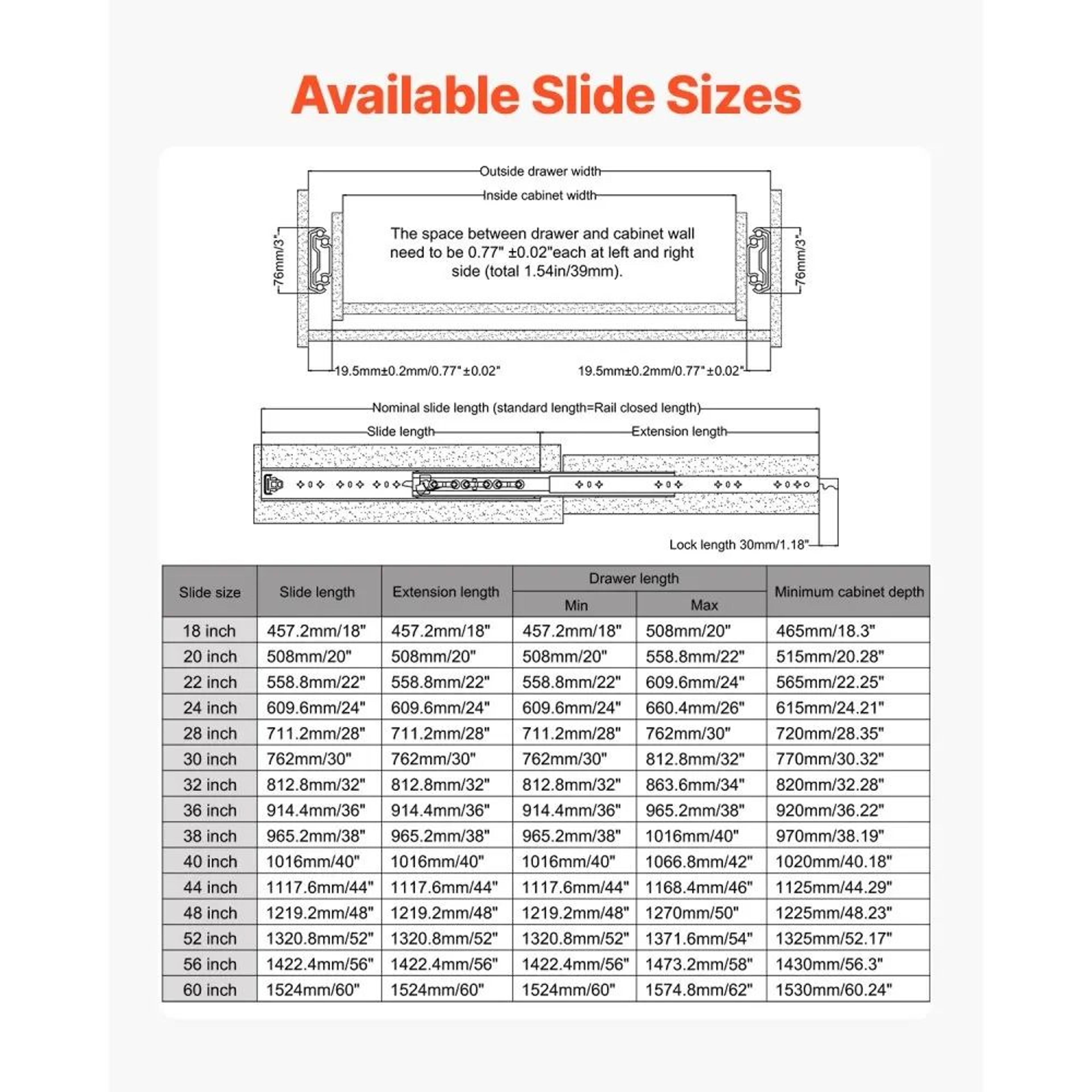

• Available Lengths: 18, 20, 22, 28, 30, 32, 36, 38, 40, 44, 48, 52, 56, and 60 inches

• Slide Width: 3 inches (76 mm)

• Slide Thickness: 0.77 inches (19.5 mm)

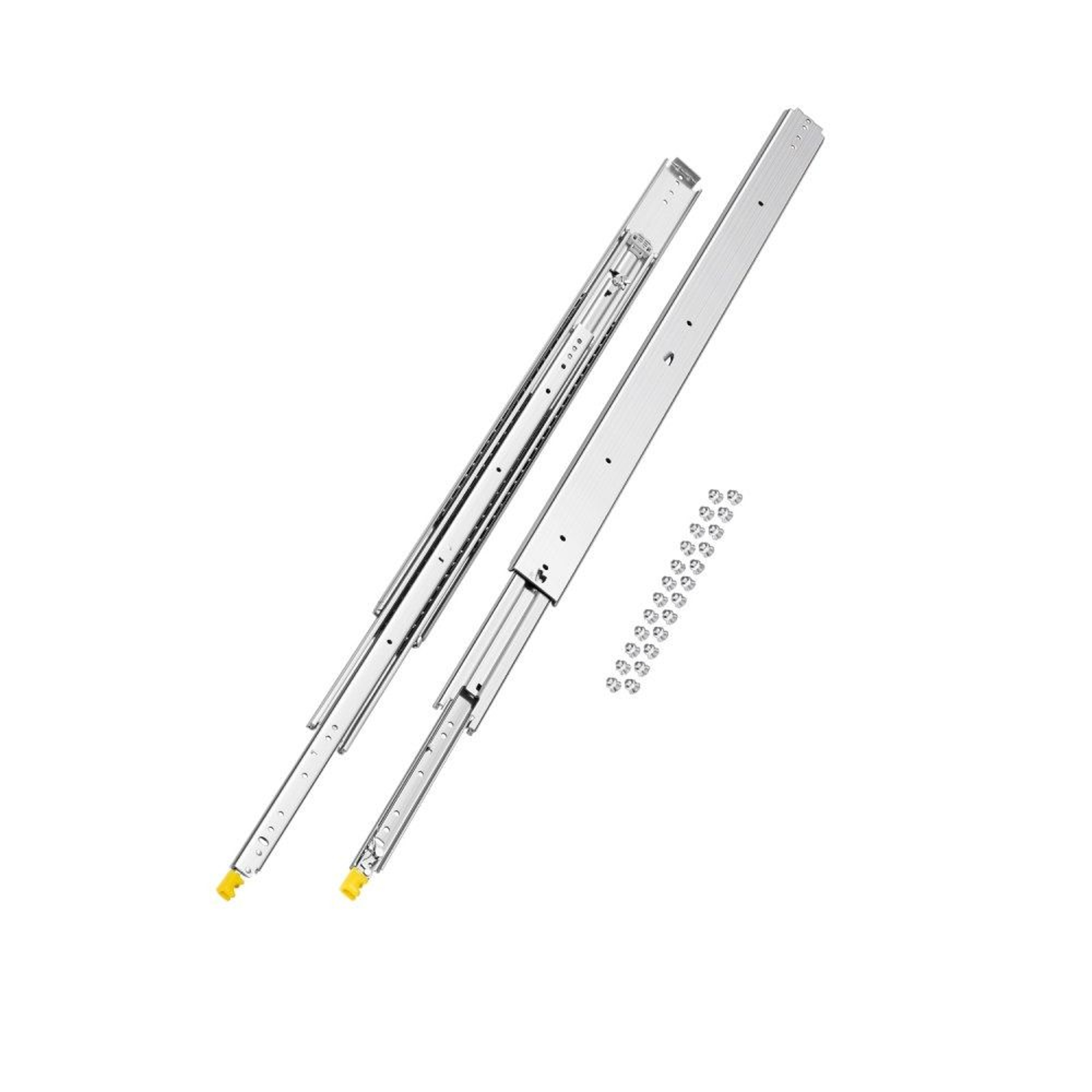

• Package Includes: 1 pair of locking drawer slides

Choose these heavy-duty full-extension drawer slides for reliable drawer support, secure locking, and convenient access to your storage space.
