Heavy Duty Locking Drawer Slides with Full Extension 500 lb Capacity

Upgrade your storage with these heavy-duty locking drawer slides, designed for smooth movement, reliable support, and convenient access to drawer contents. Built from high-hardness steel with a galvanized finish, these full-extension drawer slides support loads up to 500 lbs and feature a double-lock mechanism for added stability. Ideal for cabinets, industrial drawers, RVs, trucks, shelving, and vending machines.

Key Features

• 500 lb Heavy-Duty Capacity: High-hardness steel construction provides dependable support for heavy drawers, equipment, and storage compartments.

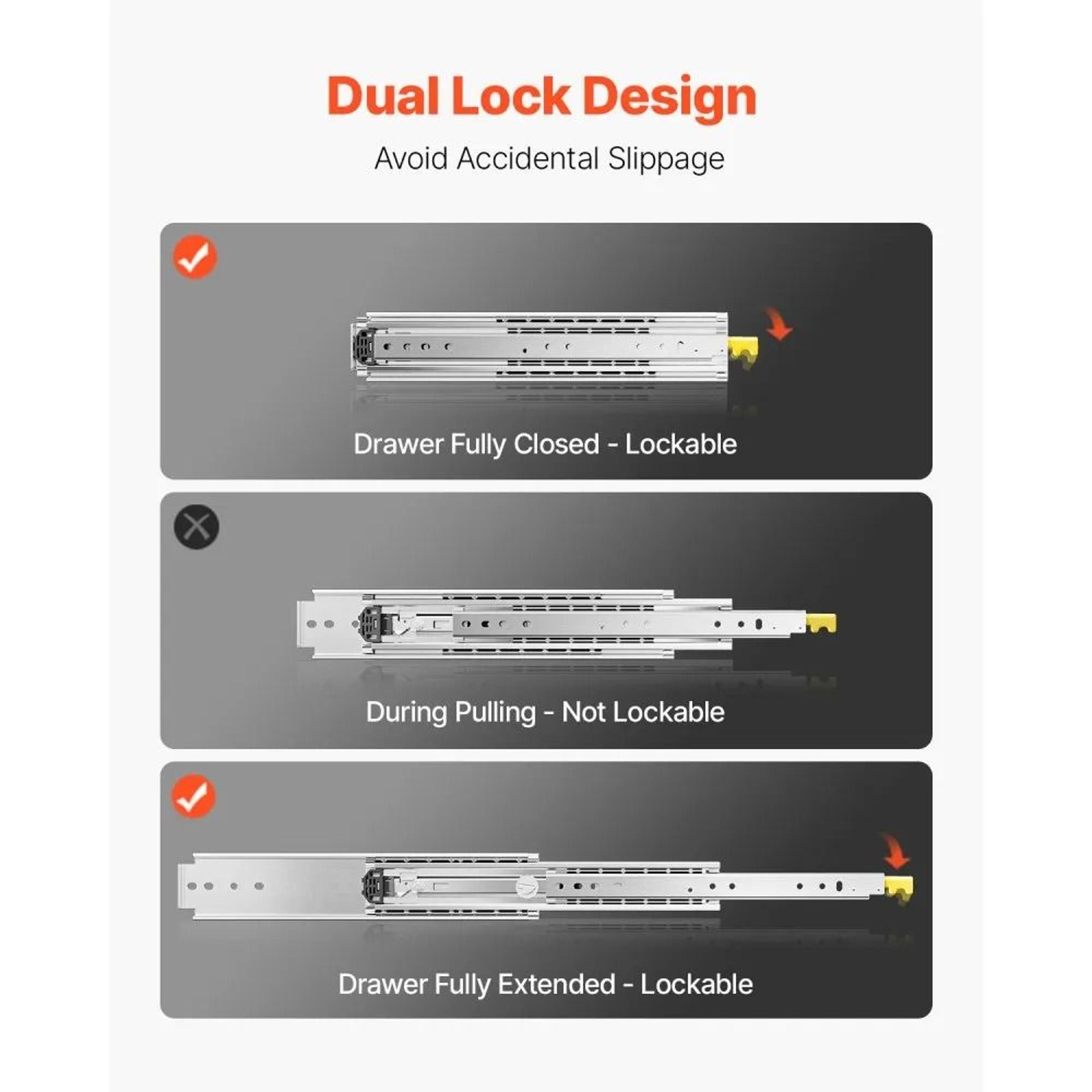

• Double-Lock Security: Dual locking mechanisms help keep drawers securely positioned, reducing unwanted movement during travel or on bumpy roads.

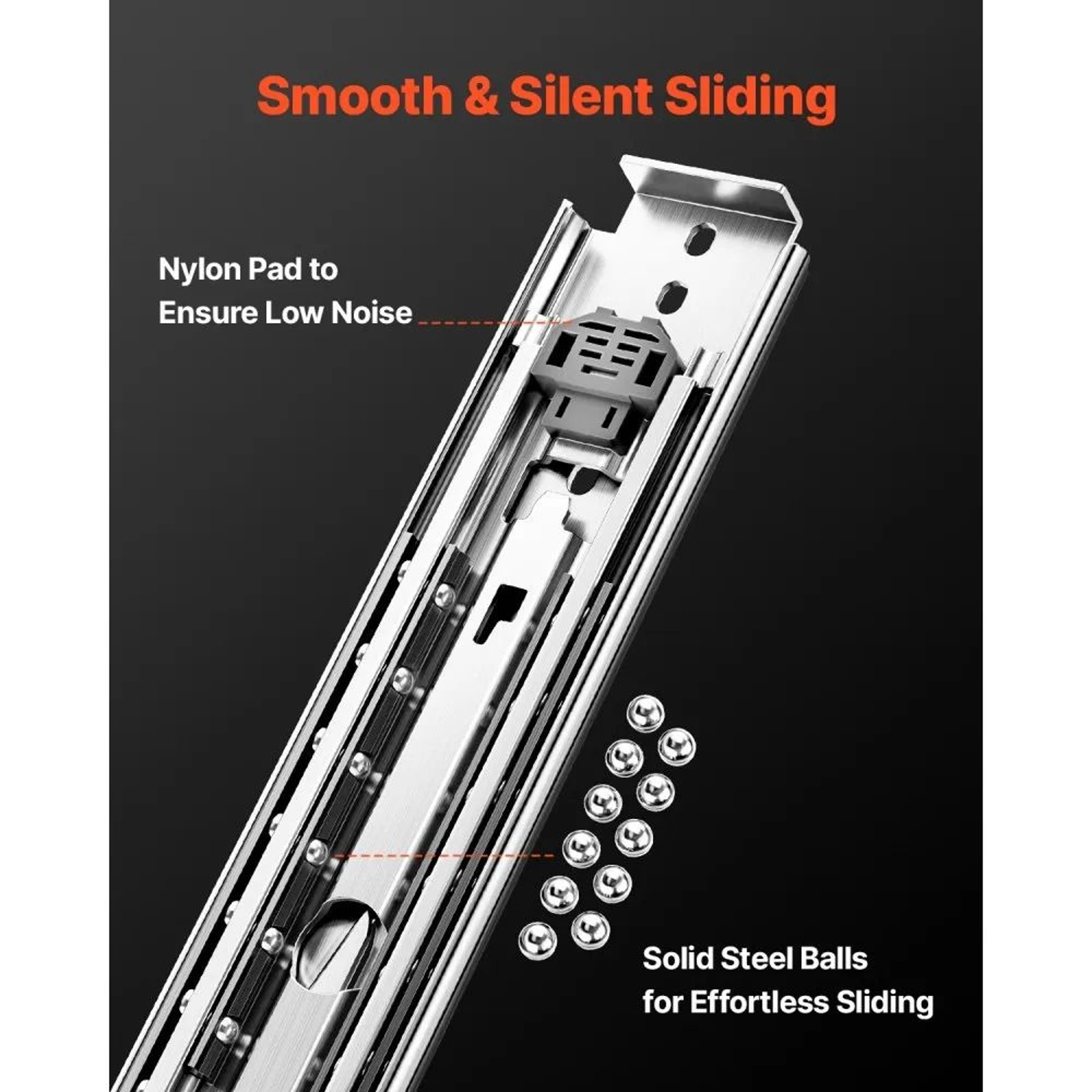

• Smooth & Quiet Operation: Double-row ball bearings allow drawers to open and close smoothly, while nylon cushioning helps reduce noise and bouncing.

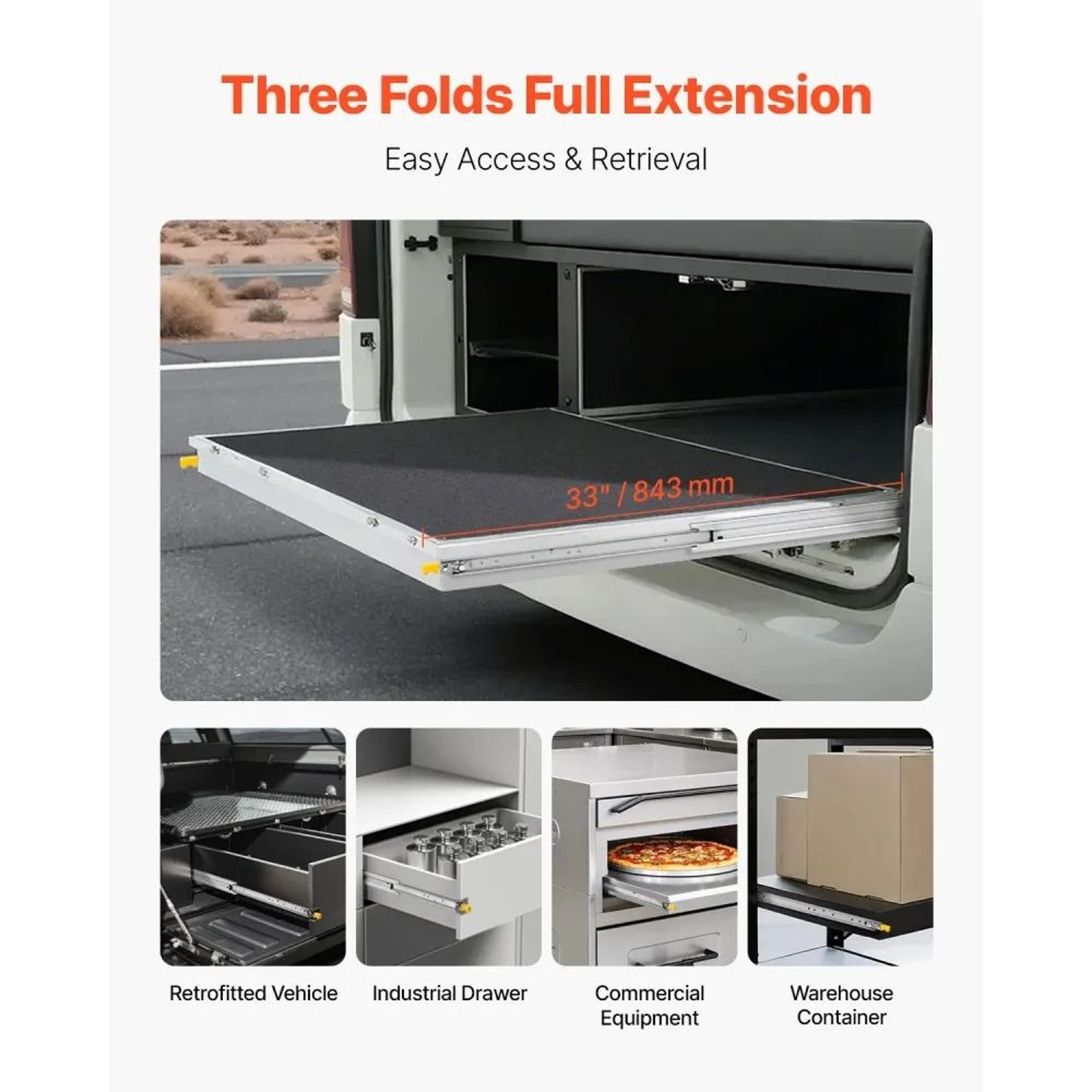

• 3-Fold Full Extension: Telescoping rails extend fully, providing convenient access to stored items and helping maximize usable drawer space.

• Rust-Resistant Finish: Galvanized steel offers resistance to rust and wear, making these side-mount drawer slides suitable for various storage applications.

Specifications

• Material: High-hardness steel

• Finish: Galvanized

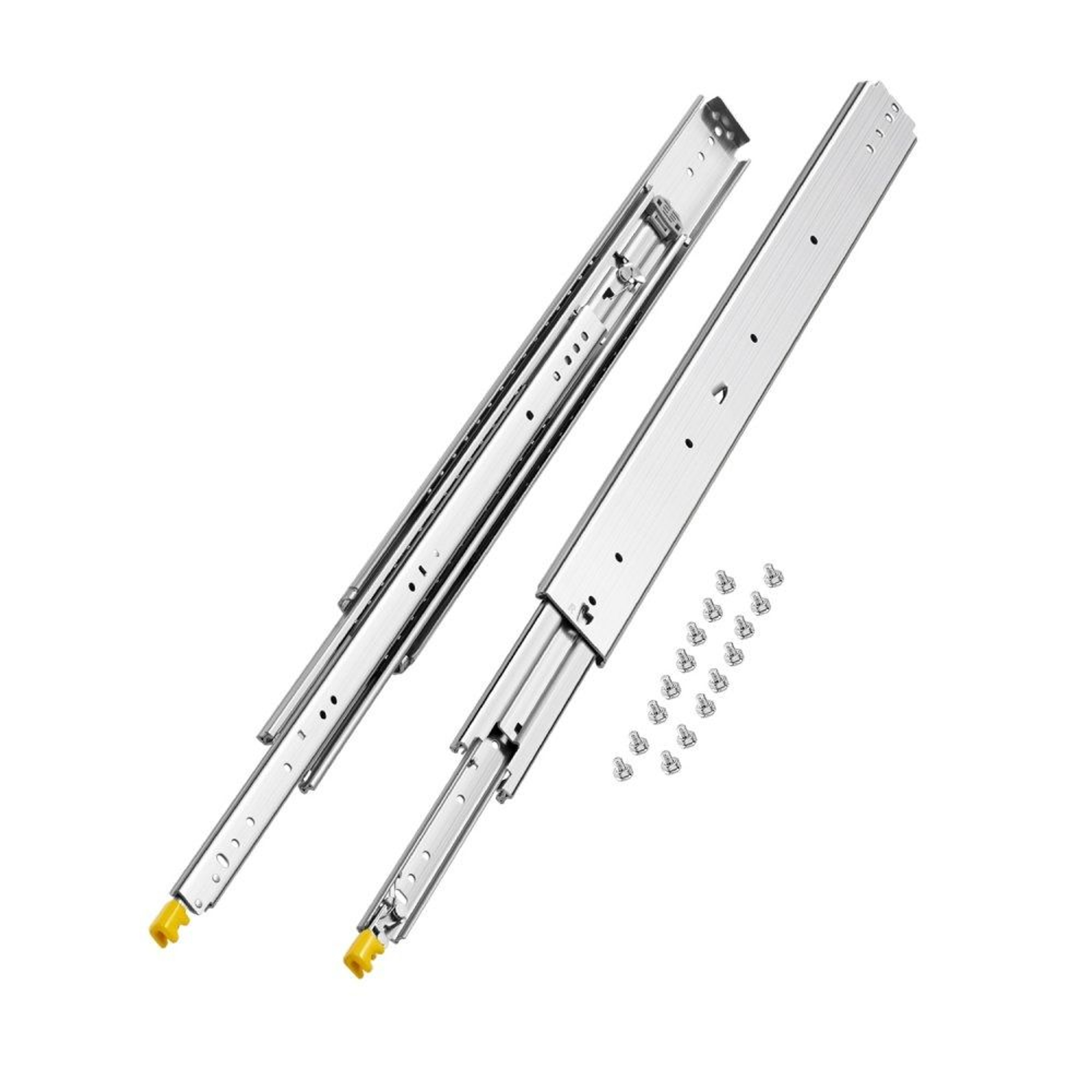

• Slide Type: Side-mount full-extension drawer slides

• Locking Mechanism: Double-lock design

• Bearing System: Double-row ball bearings

• Maximum Load Capacity: 500 lbs (226.8 kg)

• Load Capacity When Fully Extended: 332 lbs (150.6 kg)

• Suitable Drawer Length: 32.5 inches (825.5 mm)

• Extension Length: 32 inches (812 mm)

• Slide Width: 3 inches (76 mm)

• Slide Thickness: 0.77 inches (19.5 mm)

• Net Weight: 17.64 lbs (8 kg)

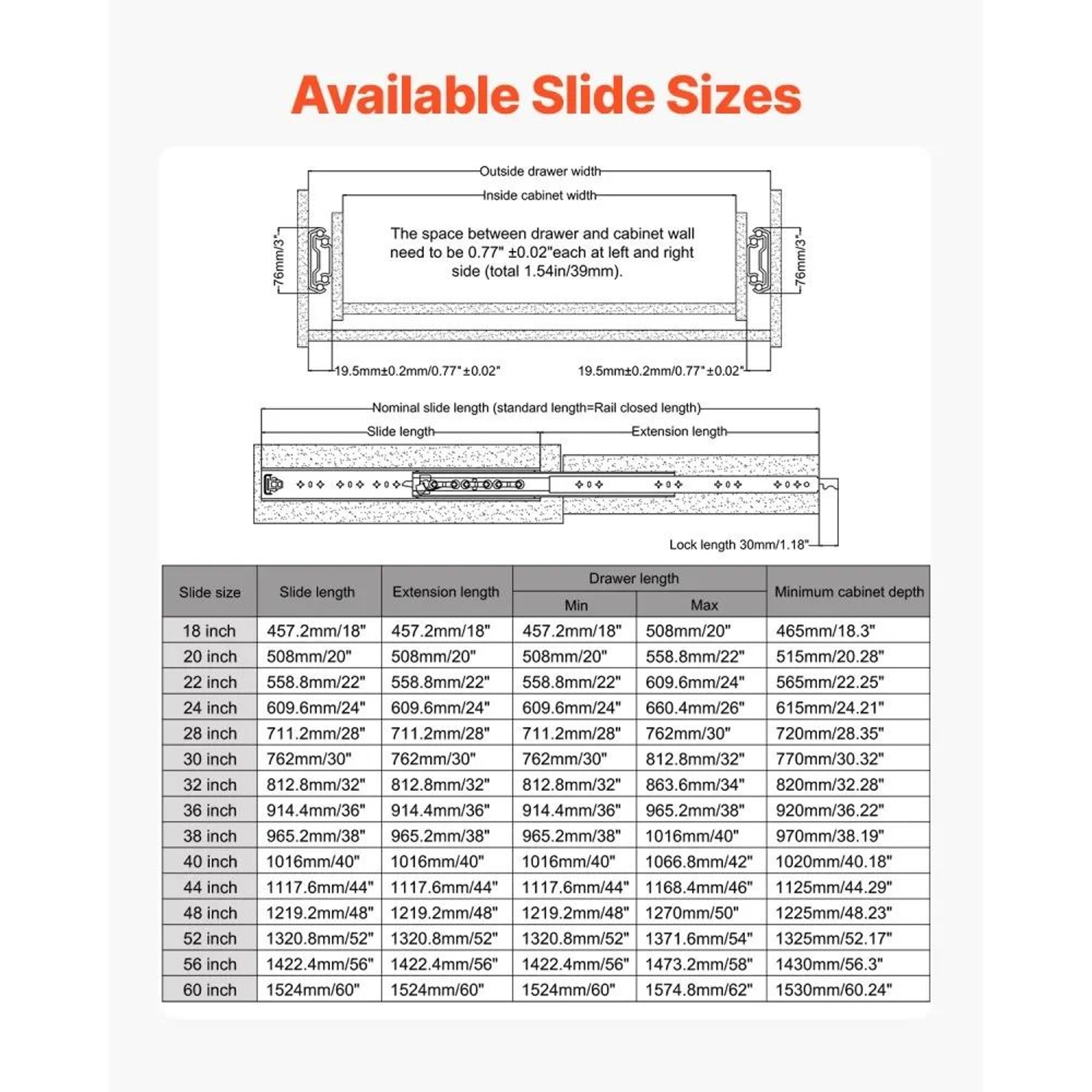

• Available Sizes: 18, 20, 22, 28, 30, 32, 36, 38, 40, 44, 48, 52, 56, and 60 inches

• Package Includes: 1 pair of locking drawer slides

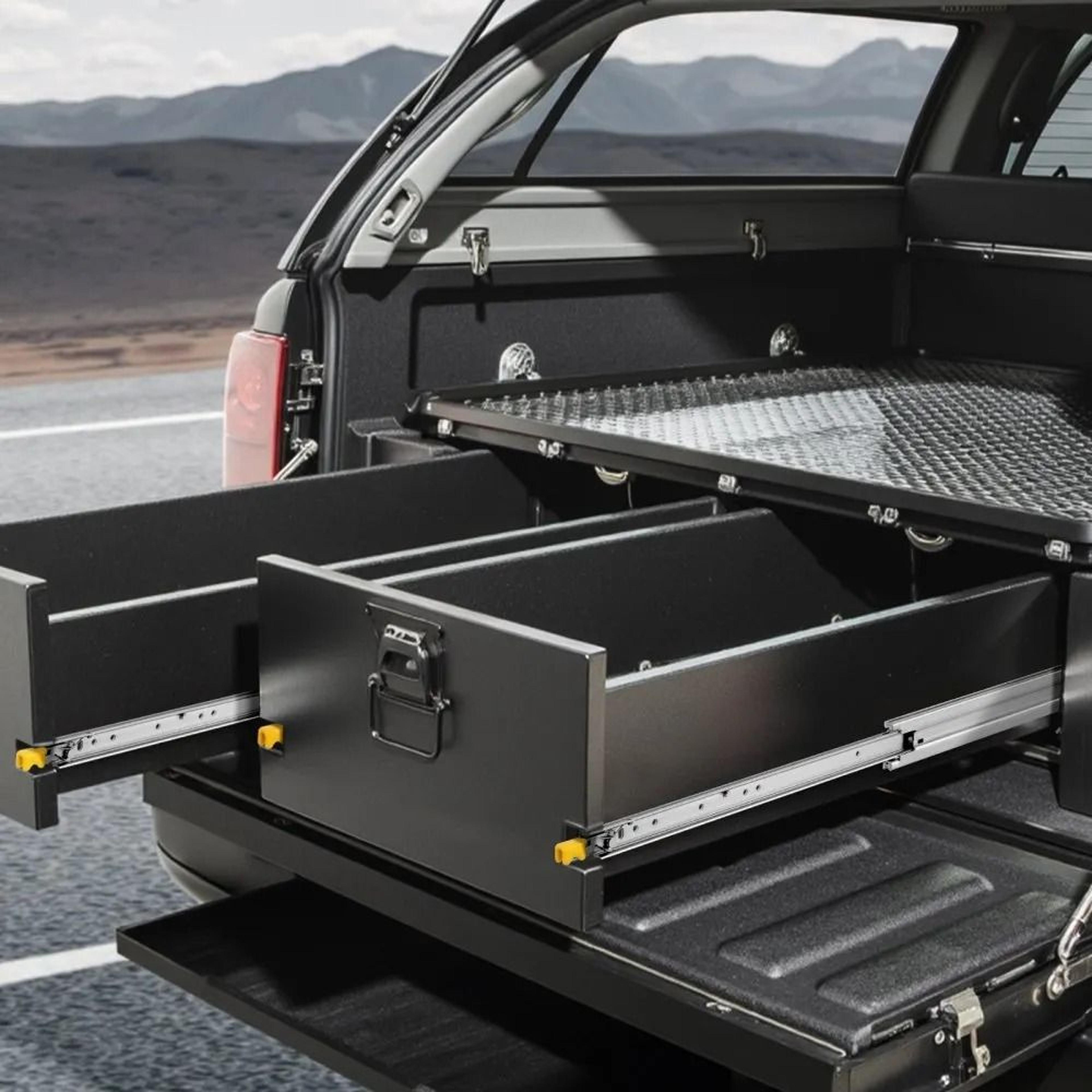

Whether upgrading industrial storage or outfitting an RV or truck, these double-locking drawer slides deliver sturdy support, controlled movement, and convenient full-extension access.
