About this item

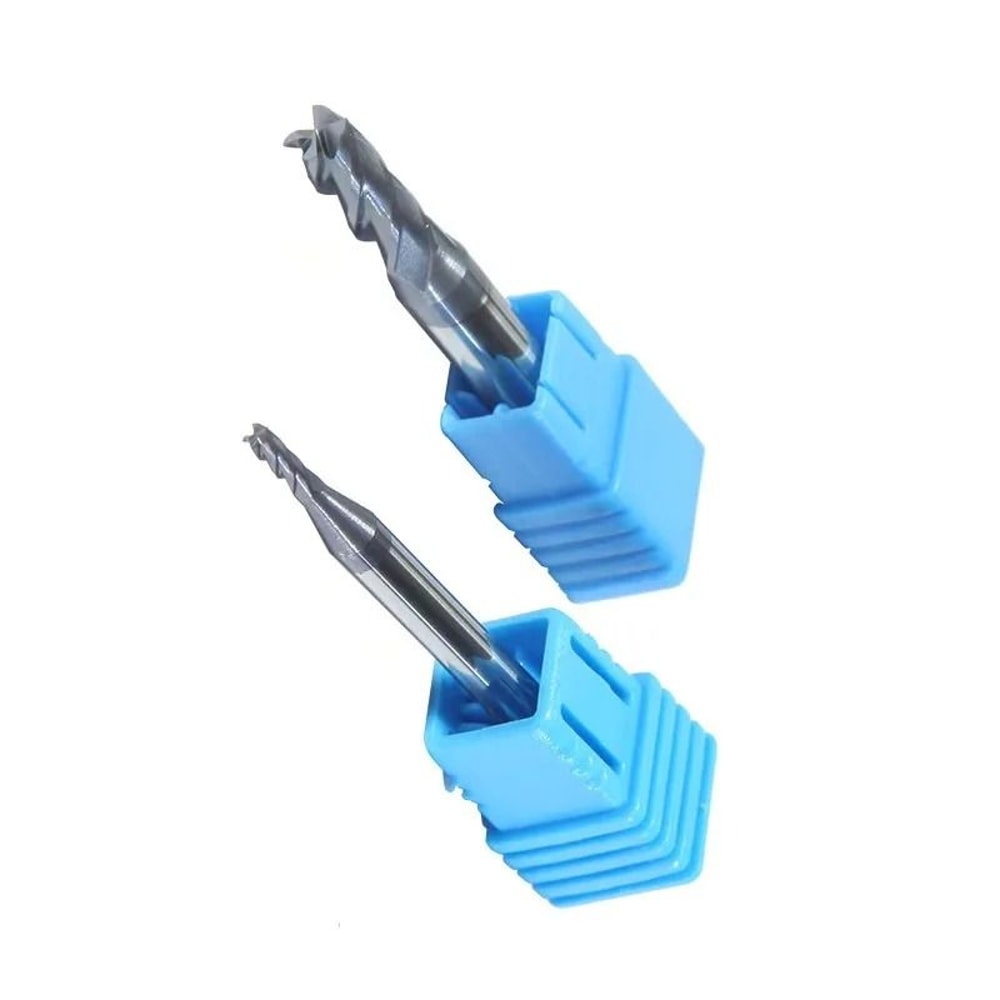

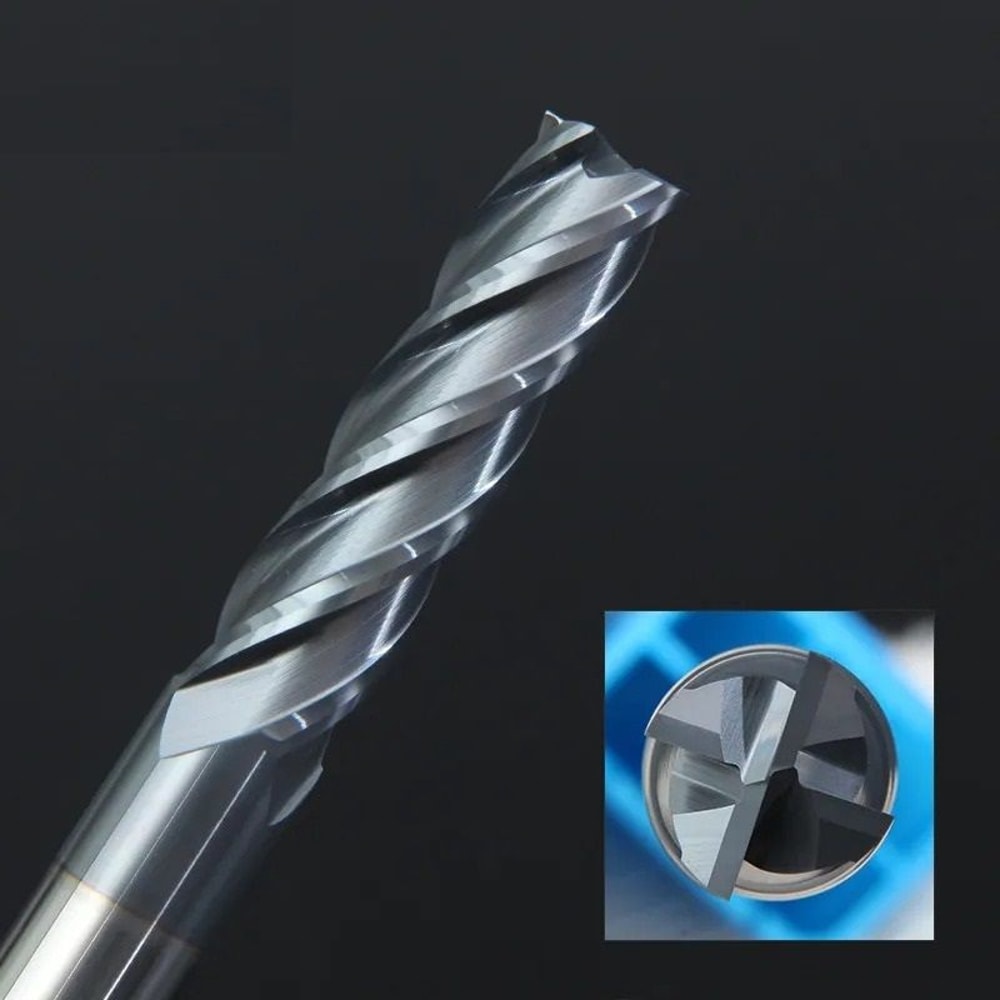

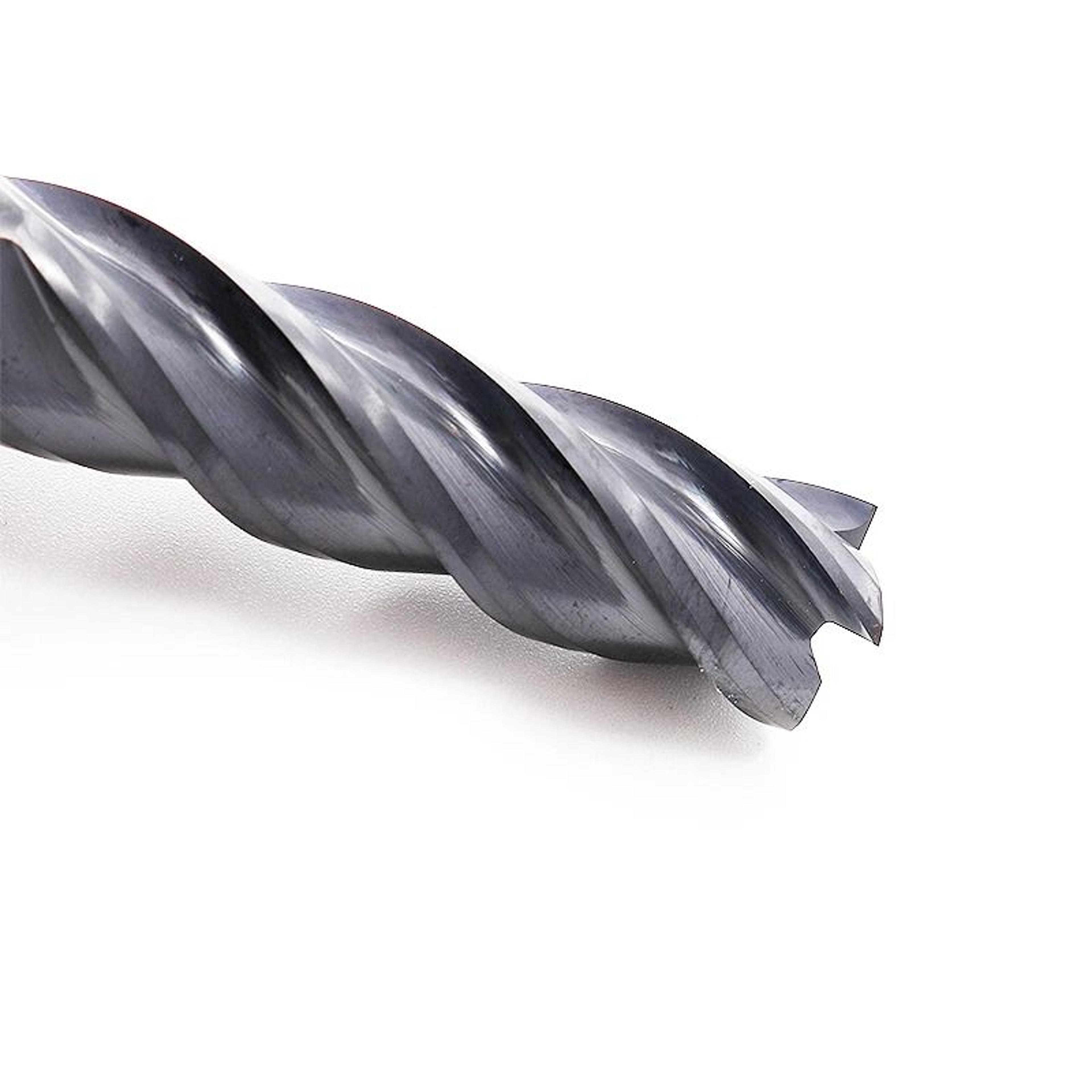

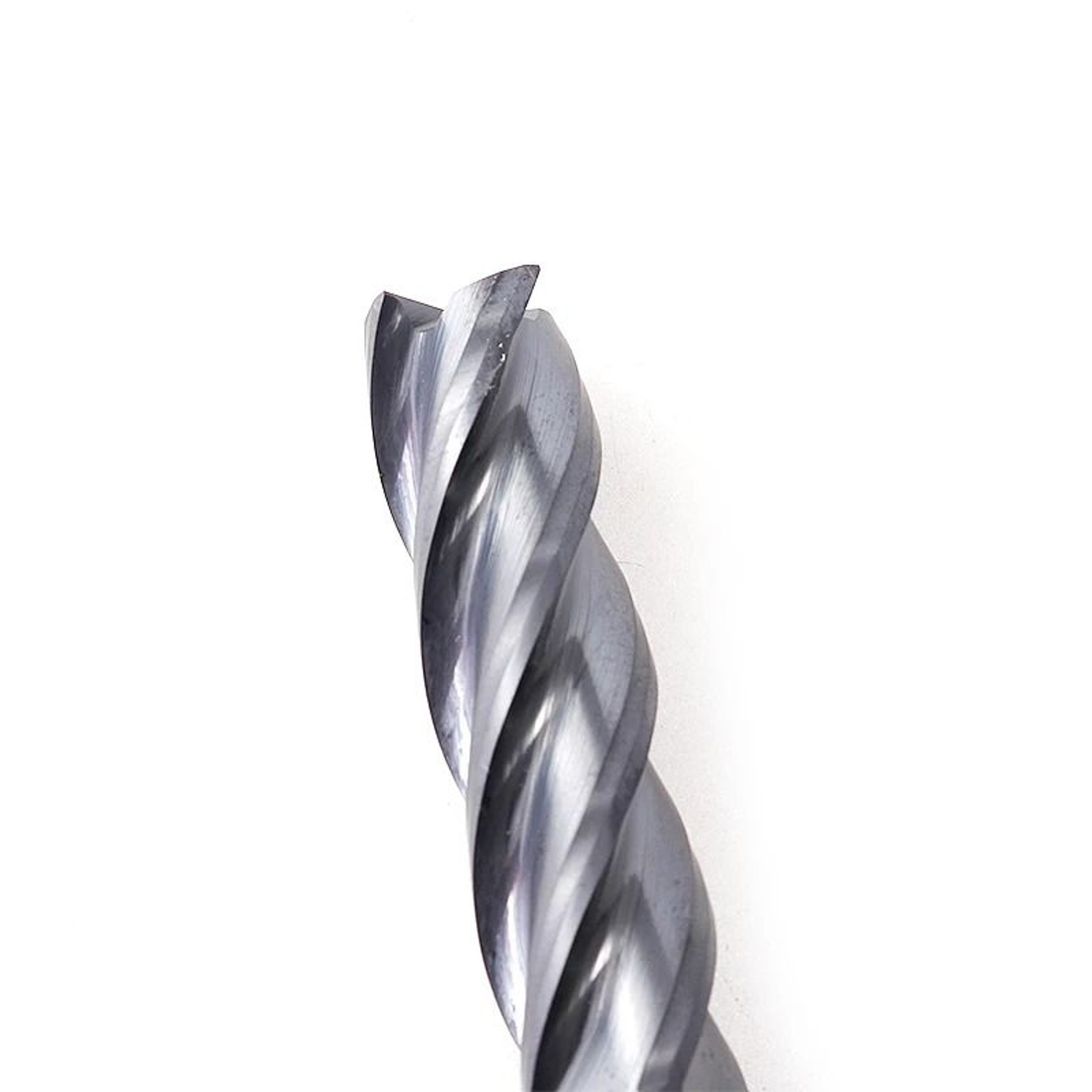

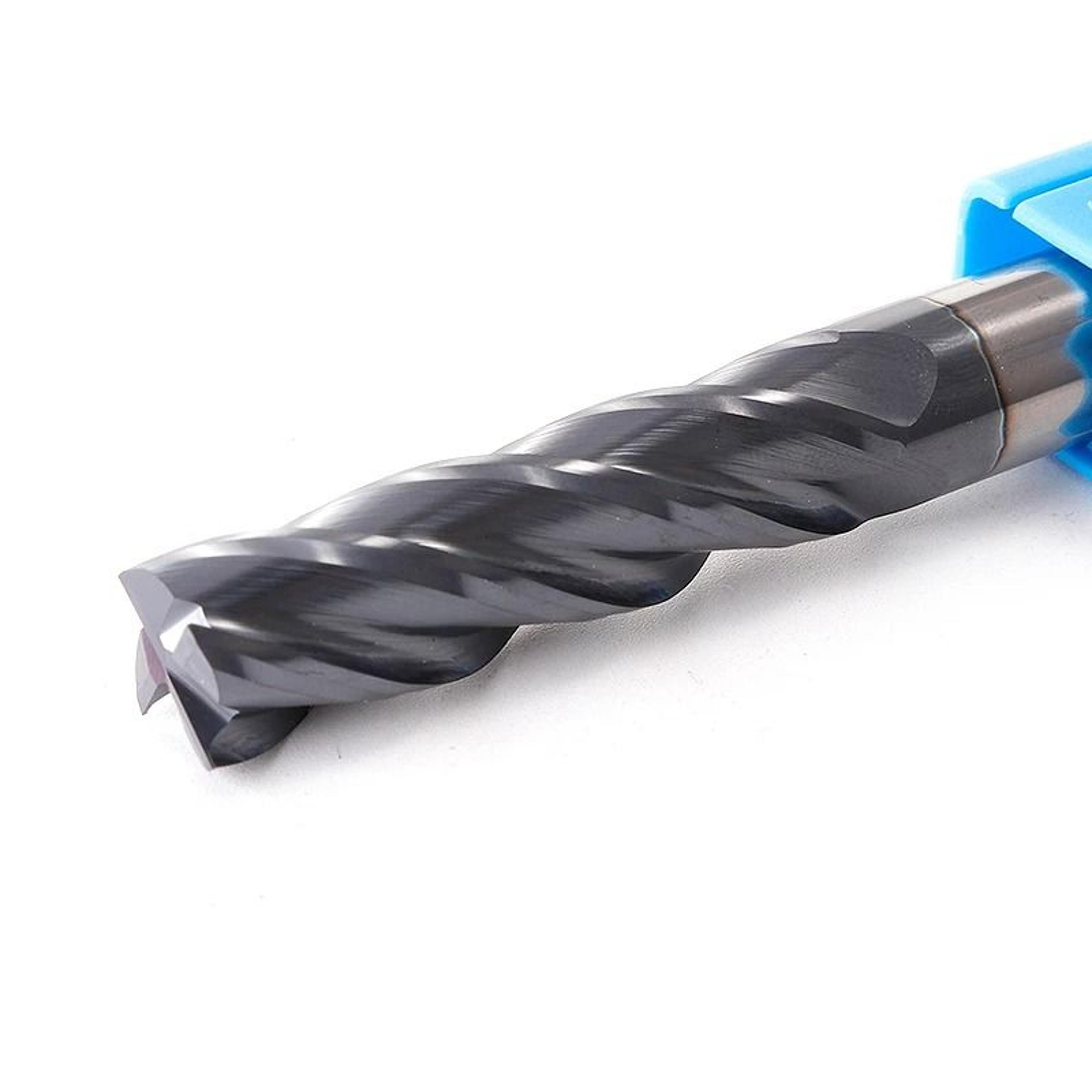

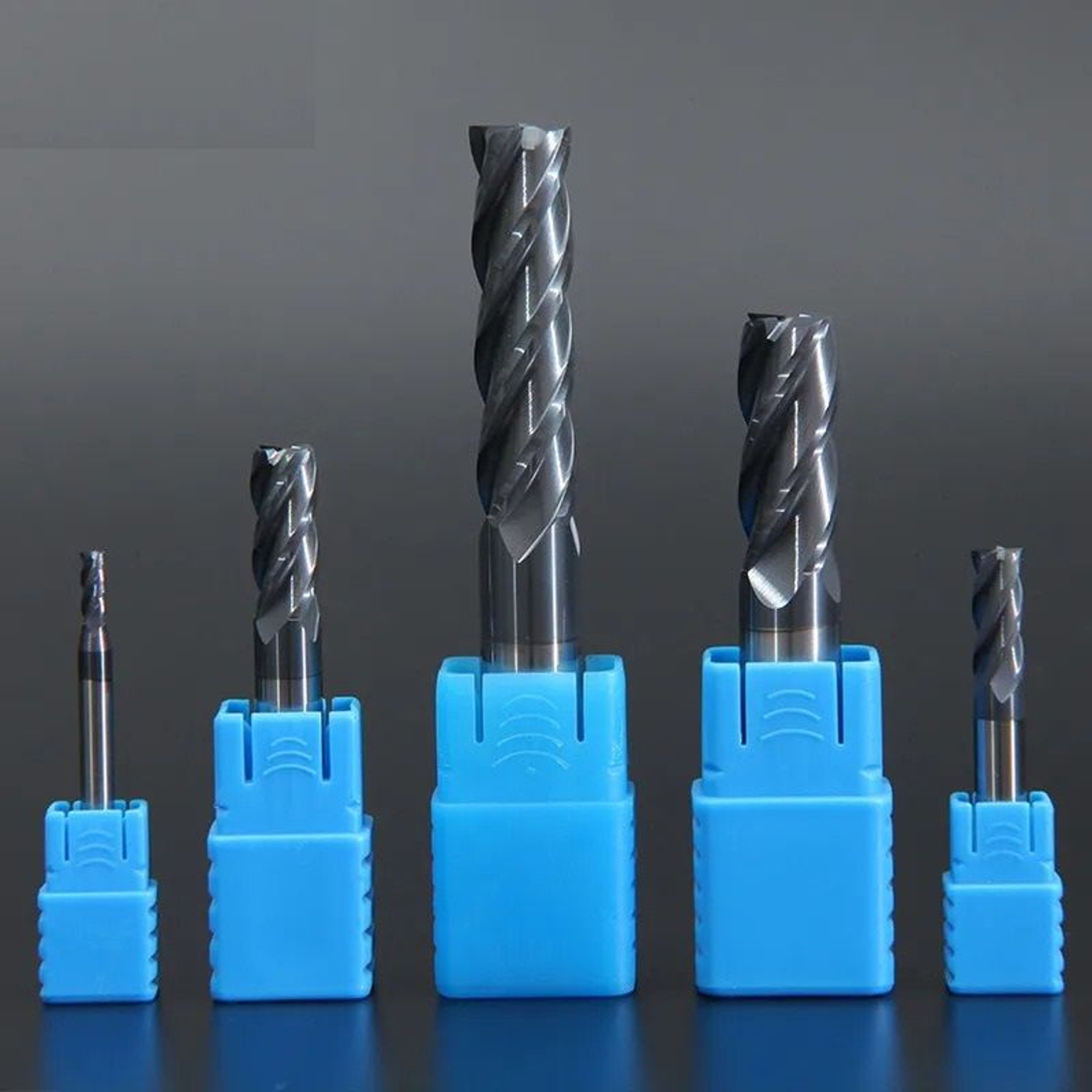

Optimize your machining operations with the Industrial Tungsten Steel HRC50 Precision Endmill Series. This professional grade milling solution is meticulously engineered with a specialized 4 Flute Alloy Carbide architecture designed to provide structural rigidity and superior surface finishes on medium hardness materials. Featuring a high density tungsten steel build rated for HRC50, these cutters are the definitive choice for CNC machinists and metalworkers looking for a high performance solution specifically intended for side milling, pocketing, and structural profile cutting.

Technical Capacity and Dimension Reference

Engineered in specialized metric dimensions converted for structural accuracy across all machining scales (Format: Blade Diameter x Shank Diameter x Total Length):

Specification	Metric (mm)	Imperial (in)	Specification	Metric (mm)	Imperial (in)
1x4Dx50L	1 mm	0.039 in	10x10Dx100L	10 mm	0.394 in
1.5x4Dx50L	1.5 mm	0.059 in	10x10Dx150L	10 mm	0.394 in
2x4Dx50L	2 mm	0.079 in	12x12Dx75L	12 mm	0.472 in
2.5x4Dx50L	2.5 mm	0.098 in	12x12Dx100L	12 mm	0.472 in
3x4Dx50L	3 mm	0.118 in	12x12Dx150L	12 mm	0.472 in
4x4Dx50L	4 mm	0.157 in	14x14Dx100L	14 mm	0.551 in
4x4Dx75L	4 mm	0.157 in	14x14Dx150L	14 mm	0.551 in
4x4Dx100L	4 mm	0.157 in	16x16Dx100L	16 mm	0.630 in
5x6Dx50L	5 mm	0.197 in	16x16Dx150L	16 mm	0.630 in
6x6Dx50L	6 mm	0.236 in	18x18Dx100L	18 mm	0.709 in
6x6Dx75L	6 mm	0.236 in	18x18Dx150L	18 mm	0.709 in
6x6Dx100L	6 mm	0.236 in	20x20Dx100L	20 mm	0.787 in
8x8Dx60L	8 mm	0.315 in	20x20Dx150L	20 mm	0.787 in
8x8Dx75L	8 mm	0.315 in
8x8Dx100L	8 mm	0.315 in
10x10Dx75L	10 mm	0.394 in
