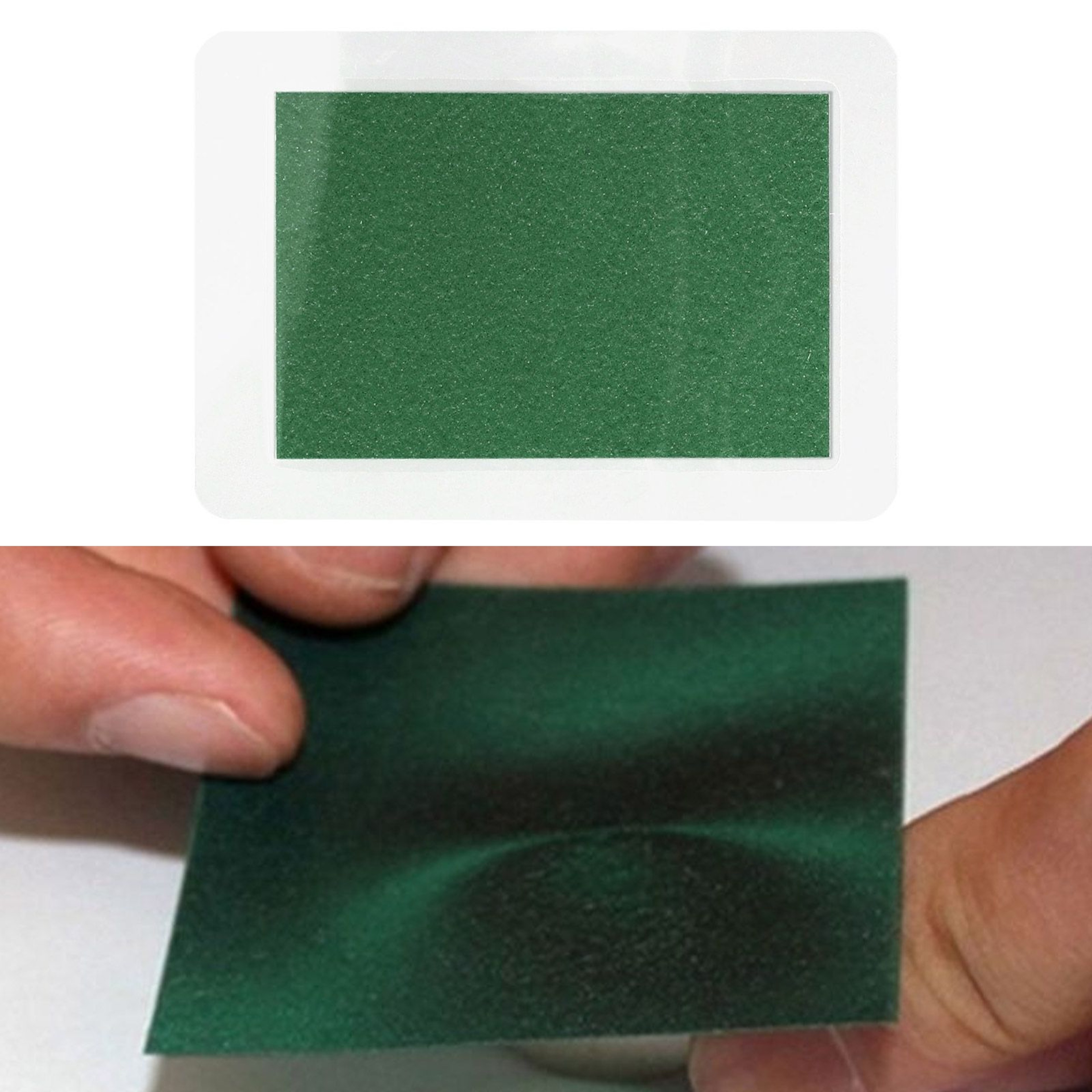

Magnetic Field Viewer Pattern Display Film

Reveal the hidden world of magnetic forces, inspect physical flux geometries, and analyze complex magnetic poles with absolute visual clarity. This premium magnetic field viewer film is an advanced scientific optical membrane engineered to translate invisible magnetic energy patterns into high-contrast, visible shapes instantly. Embedded with a specialized matrix of microscopic, nickel-based ferromagnetic particles suspended in a highly pliable polymer envelope, the film reacts dynamically to any magnetic source placed beneath it. When exposed to a magnetic field, the micro-particles realign along the flux lines, turning dark over active poles and light green across neutral boundary zones. Available in two versatile handheld sizes, this durable magnetic card pattern detector provides electronic design engineers, physics educators, and industrial quality inspectors with a rapid, battery-free testing solution.

Key Features

• Micro-Encapsulated Particle Matrix: Packed with ultra-sensitive magnetic micro-particles that mirror flux distributions perfectly without needing any external power.

• Instant Visual Pole Identification: Dynamically changes color tones from deep dark gray to bright green to map out magnetic north and south boundaries clearly.

• Pliable and Protective Outer Shroud: Encased in a durable, laminated flexible polymer envelope that contours easily over curved magnets or flat electronic enclosures.

• Zero-Calibration Mechanical Sensing: Requires no batteries, complex software setups, or adjustments—simply rest the sheet flat against any magnet to get immediate feedback.

Why Choose Our Magnetic Field Pattern Display Card Standard digital gaussmeters and compasses only read magnetic fields at a single point, requiring slow, tedious manual charting to visualize the full field shape. Even worse, you cannot see structural flaws, uneven magnetization, or hidden pole configurations. This advanced ferromagnetic field viewing membrane solves those diagnostic limits by revealing the entire layout across your component in real time. It handles complex multi-pole arrays, speaker magnets, and custom motor armatures beautifully, providing industrial laboratory crews, sensory hardware designers, and STEM classroom teachers with a highly responsive utility asset that makes learning and product diagnostics fast and clear.

Perfect For

• Verifying structural magnet pole layouts, checking multi-pole spacing, and spotting internal micro-cracks in industrial magnets.

• Teaching magnetic flux loops, eddy currents, and physical attraction principles in science classrooms and engineering labs.

• Testing hidden magnetic latches, identifying sensor locations on electronic devices, and checking magnetic recording stripe patterns.

Product Specs

• Material Base: Micro-Encapsulated Ferromagnetic Suspension Sheet Encased in a Laminated Plicated Matrix

• Visual Output System: High-Contrast Dark Gray and Light Green Structural Color Mapping

• Power Requirement Profile: 100% Passive Mechanical Interface (Zero Battery Power Consumption)

• Sizing Profiles Available: Compact 1 in x 2 in or Expanded 2 in x 3 in Handheld Dimensions

Visualize Hidden Magnetic Forces and Map Out Flux Lines Instantly Stop guessing at hidden magnetic pole configurations or wrestling with single-point testing probes. Bring rapid, visual confirmation and crisp flux mapping back to your test bench by selecting your ideal sheet footprint and ordering your magnetic field viewer film today.
