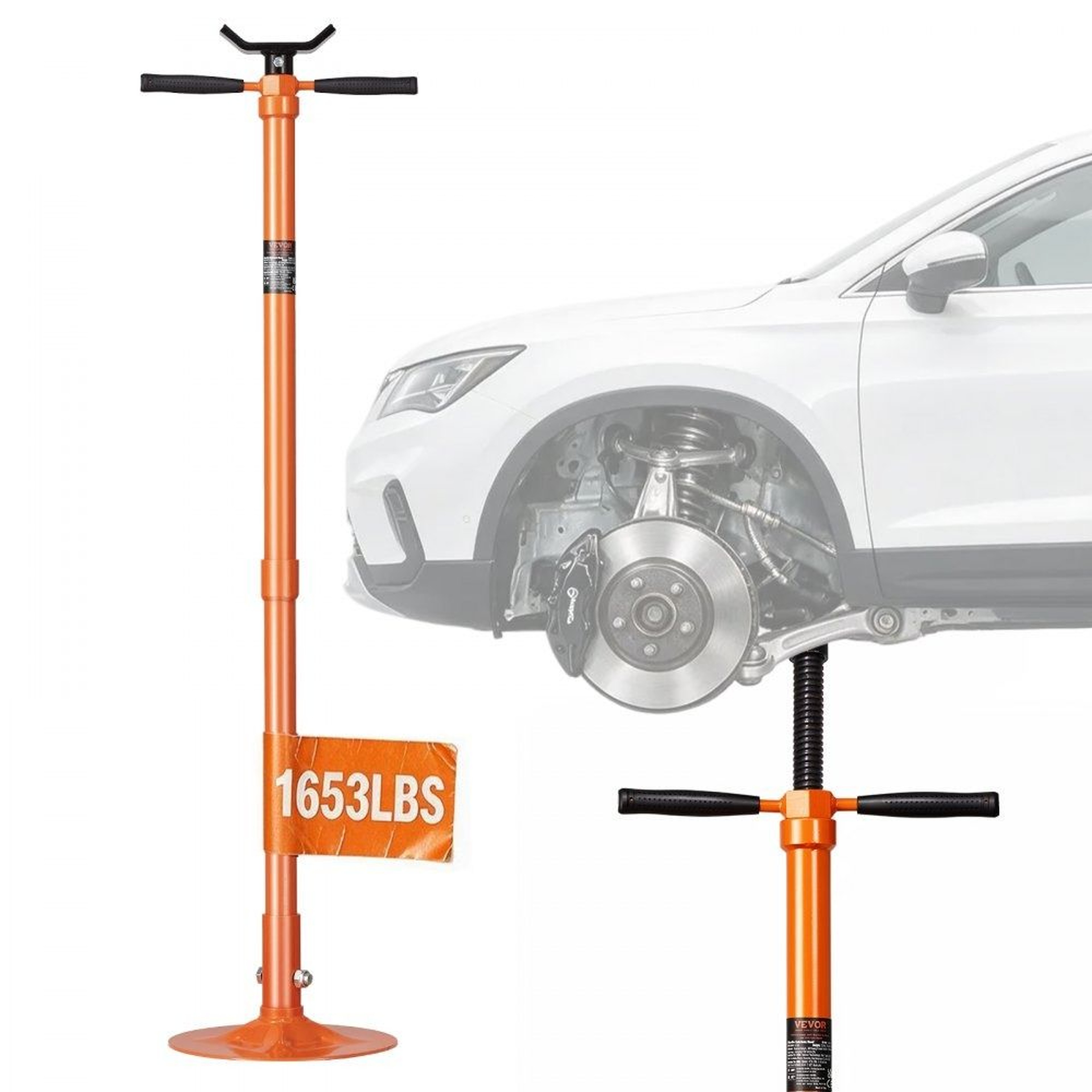

Underhoist Support Stand with 3/4 Ton Capacity and Adjustable 52.8–76 Inch Height

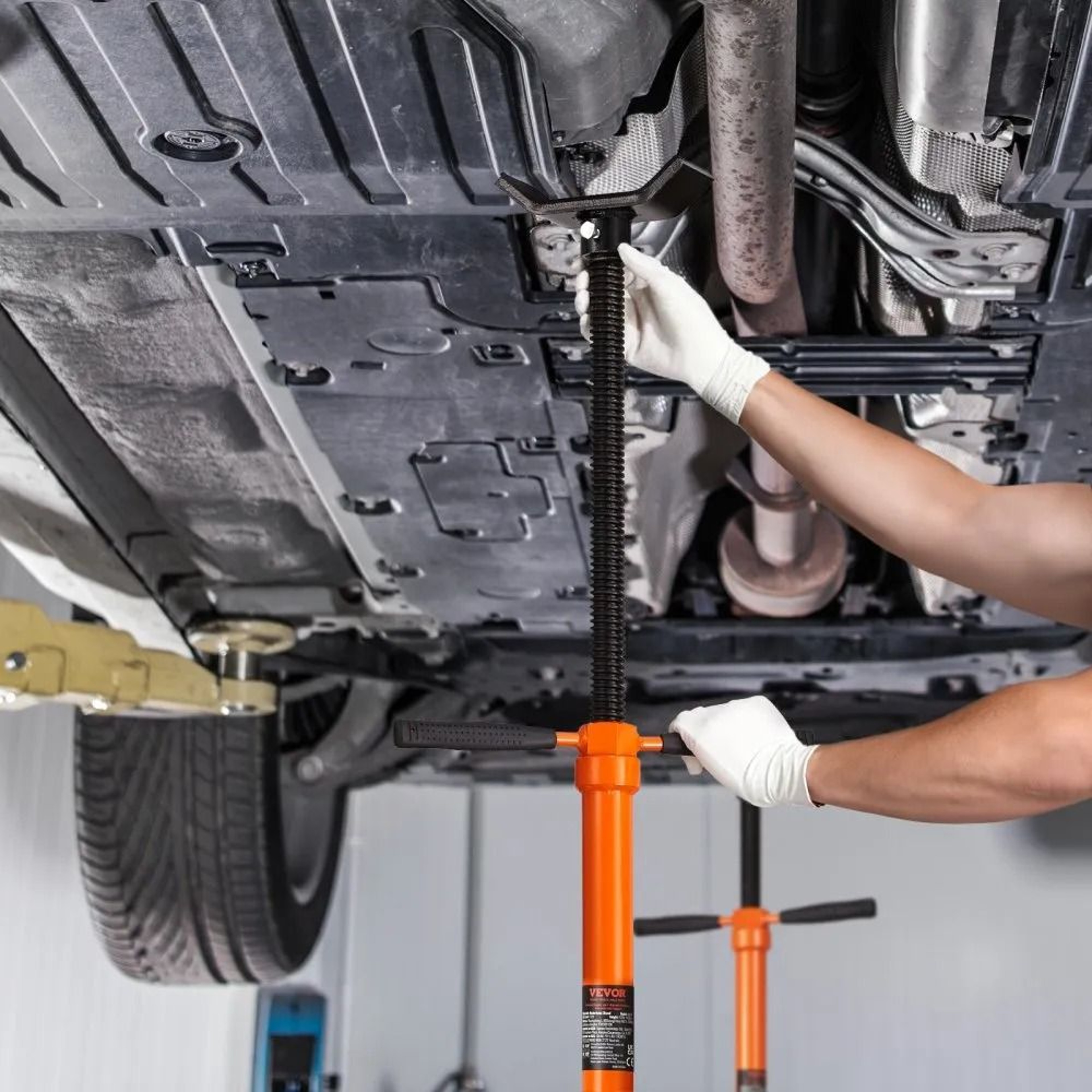

Provide reliable support for vehicle components during automotive maintenance with this heavy-duty underhoist support stand. Built with a sturdy tubular steel frame and a self-locking threaded screw, it offers controlled height adjustment and stable positioning while working beneath raised vehicles. Its bearing-mounted spin handle makes raising and lowering the stand easier, helping technicians handle repairs and component installations.

Key Features

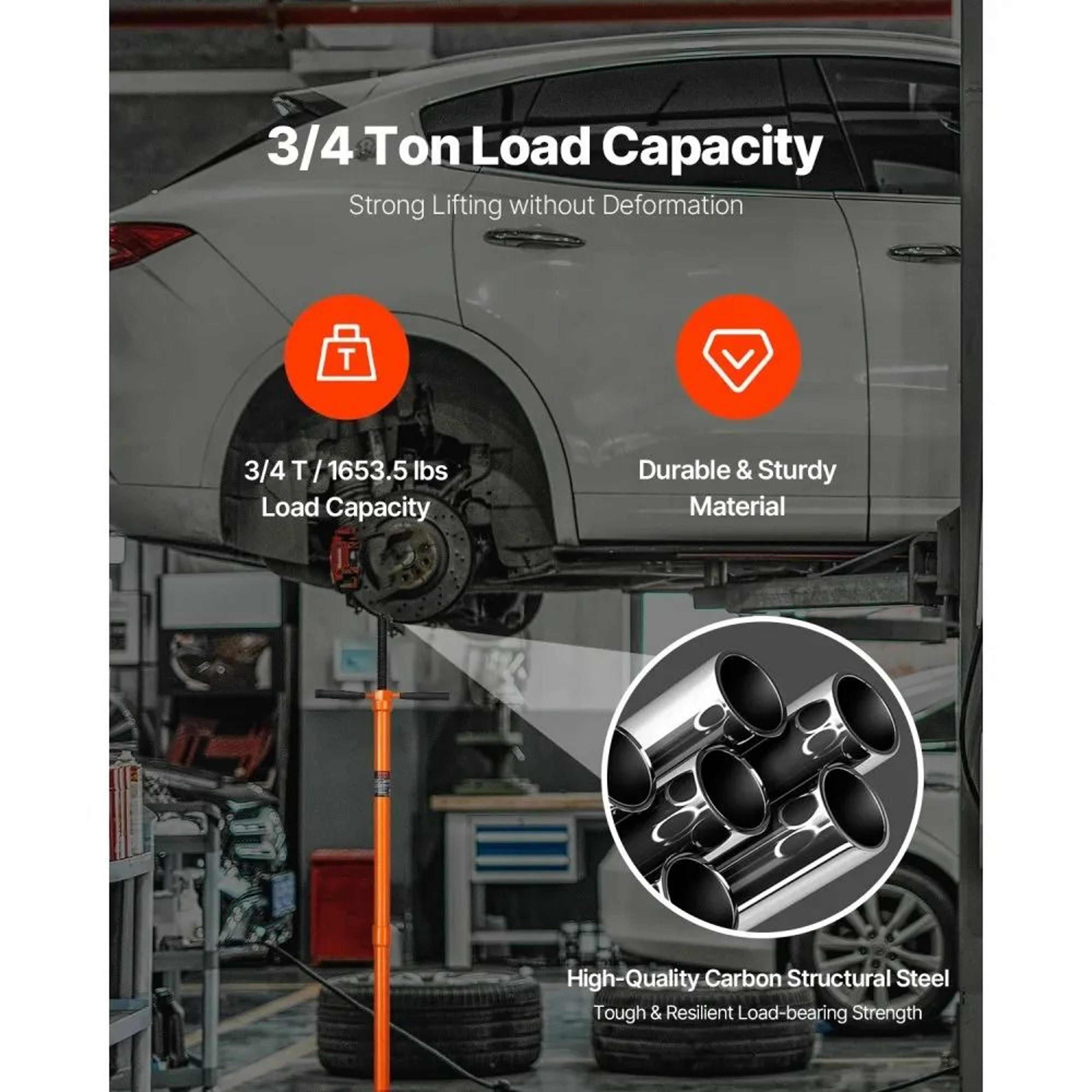

• 3/4 Ton Load Capacity: Supports up to 1,653.5 lbs, with a sturdy tubular steel construction designed to resist bending and twisting under load.

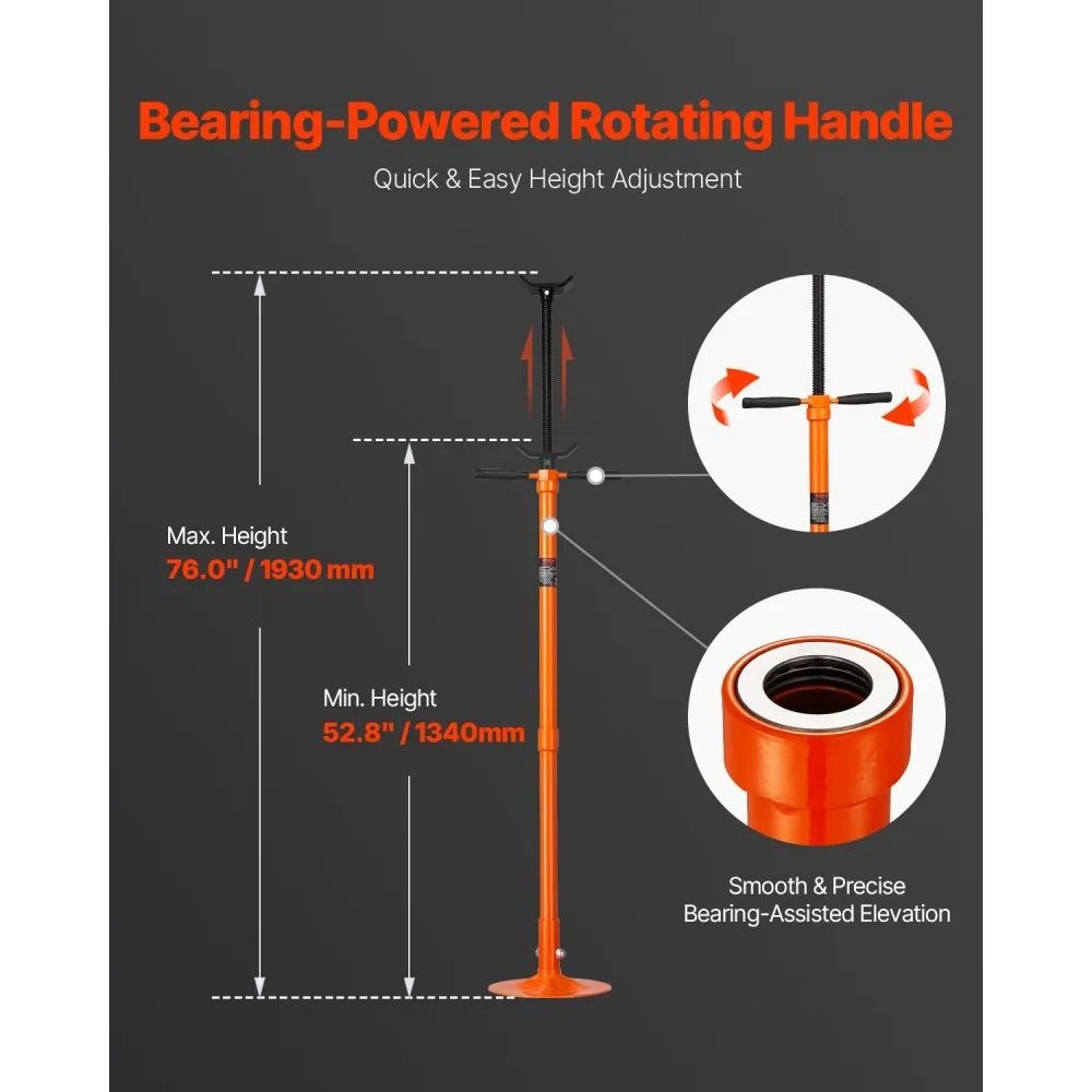

• Adjustable Working Height: Offers a height range of 52.8–76 inches, allowing technicians to position the stand according to vehicle clearance and maintenance requirements.

• Smooth Spin Handle Adjustment: Features a bearing-mounted spin handle with a thrust bearing for easier raising and lowering, even under heavy loads.

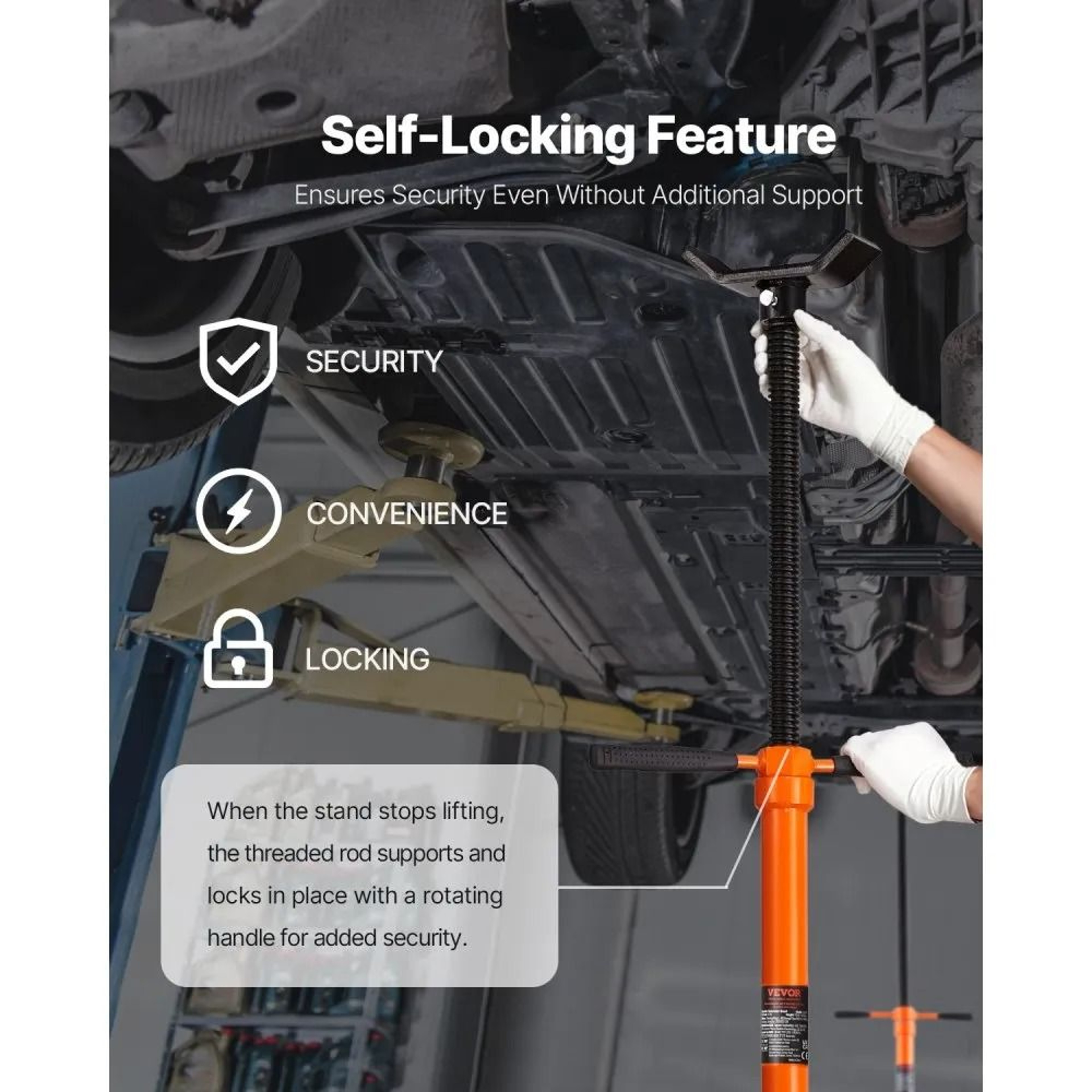

• Self-Locking Screw Mechanism: The threaded screw rod helps prevent unintended lowering, while the rubber handle provides a comfortable grip during adjustments.

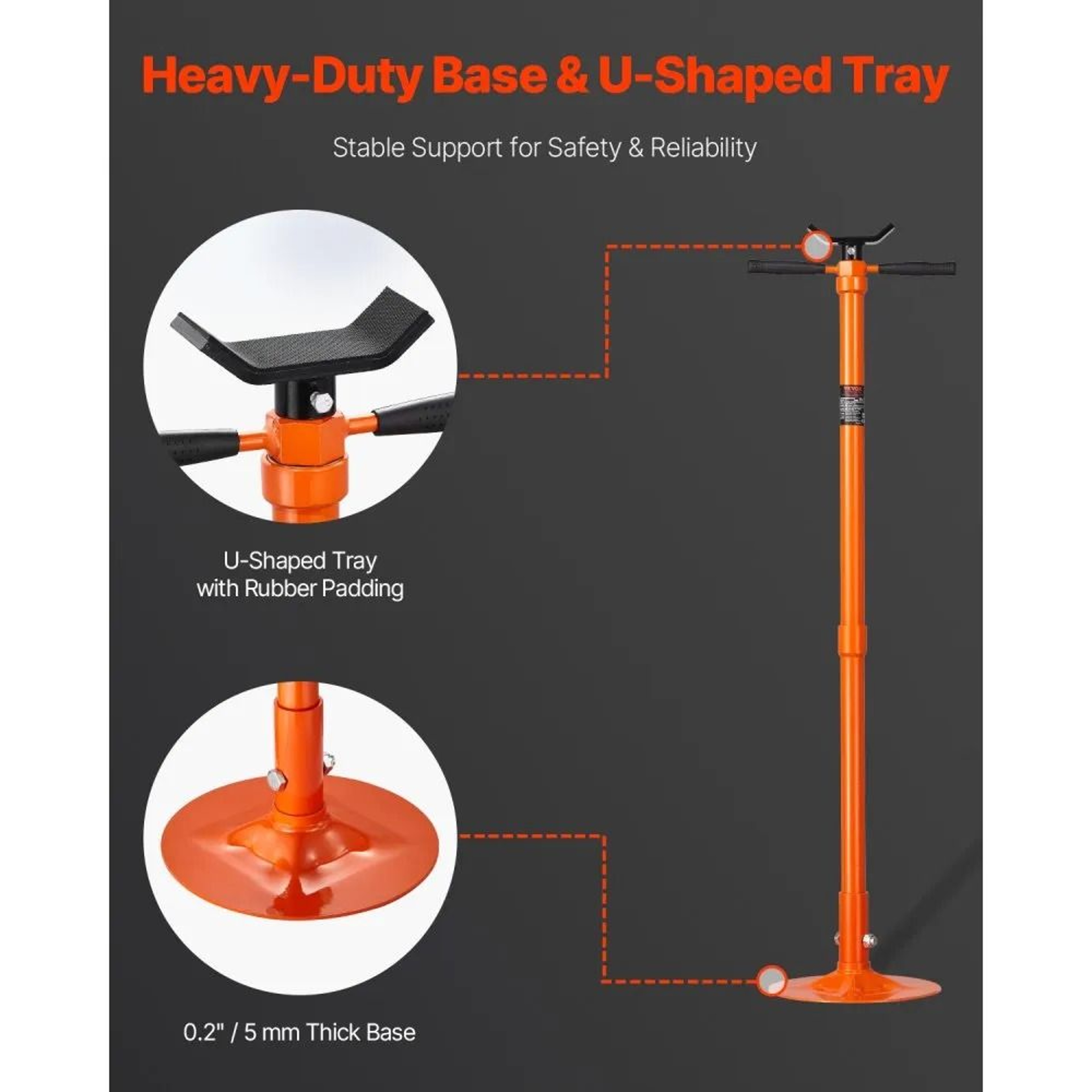

• Stable and Protective Support: A 0.2-inch-thick circular base improves stability, while the rubber-padded U-shaped tray provides a secure, slip-resistant contact surface that helps protect supported components.

Specifications

• Product Type: Underhoist Support Stand

• Weight Capacity: 1,653.5 lbs (0.75 ton)

• Main Material: Q235B steel

• Frame Construction: Tubular steel

• Minimum Height: 52.8 inches (1,340 mm)

• Maximum Height: 76 inches (1,930 mm)

• Lead Screw Length: 27.6 inches (705 mm)

• Base Thickness: 0.2 inches (5 mm)

• Support Tray: U-shaped with rubber padding

• Adjustment Mechanism: Self-locking threaded screw with bearing-mounted spin handle

• Minimum Required Stands: 2

Make automotive maintenance more manageable with an adjustable underhoist support stand built for stable component positioning and convenient height control.
