WAVESHARE ESP32-C5 2.8 Inch Touch Display Development Board with Dual-Band Wi-Fi and Bluetooth 5

Build smarter connected projects with a compact board that brings display, touch, wireless communication, sensing, audio, and storage into one convenient platform. The WAVESHARE 34958 is an ESP32-C5 development board powered by a 240MHz RISC-V processor and designed for makers, embedded developers, IoT engineers, and electronics enthusiasts. Its vivid 240 x 320 IPS capacitive touchscreen makes interactive interfaces easier to create, while 2.4GHz and 5GHz Wi-Fi, Bluetooth 5 LE, Zigbee 3.0, and Thread give you flexible connectivity options. With generous PSRAM and Flash plus integrated sensors, audio hardware, Micro SD storage, and USB-C, it helps reduce the extra modules normally required for advanced prototypes. ESP-IDF and Arduino support also make development more accessible from first test to finished application.

Key Features

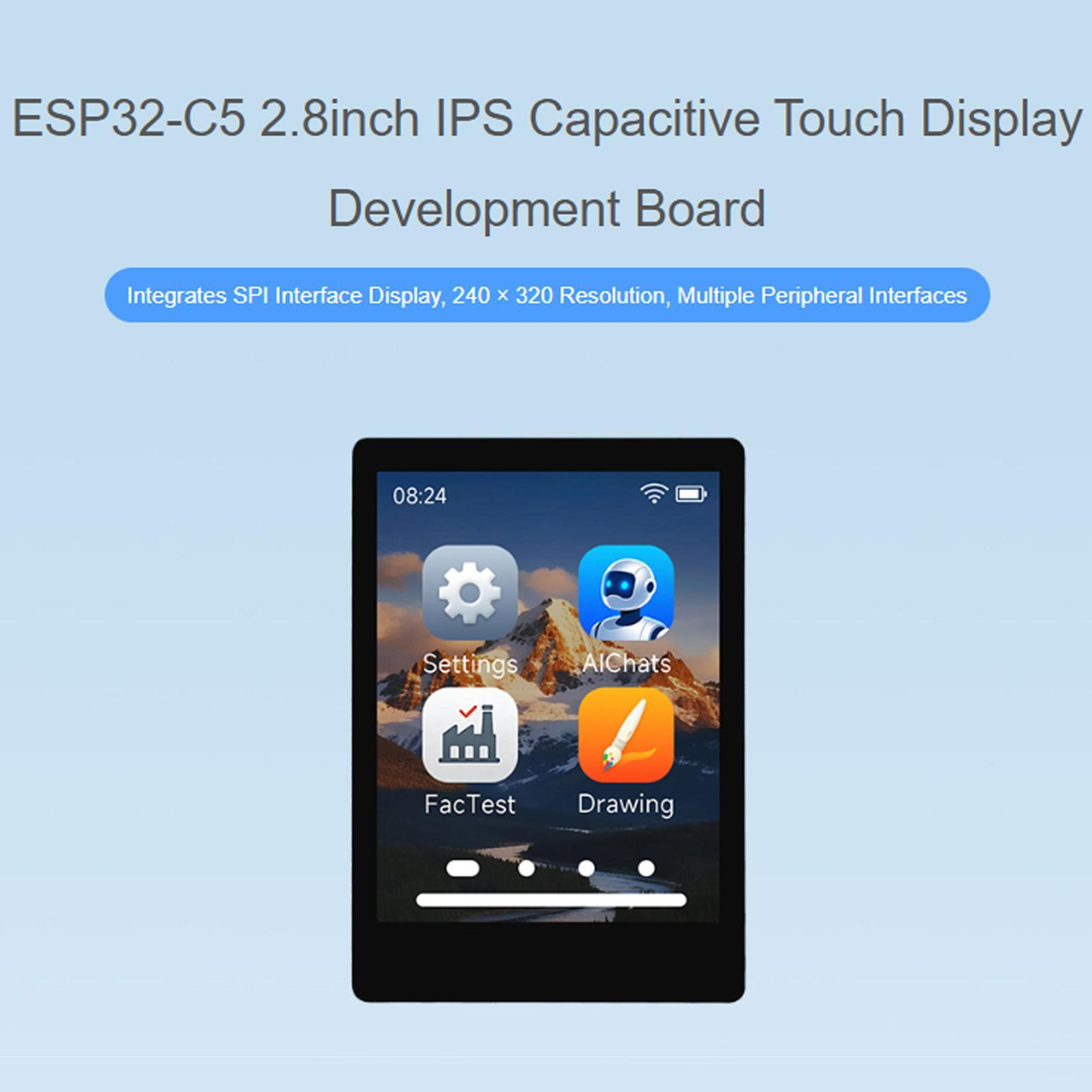

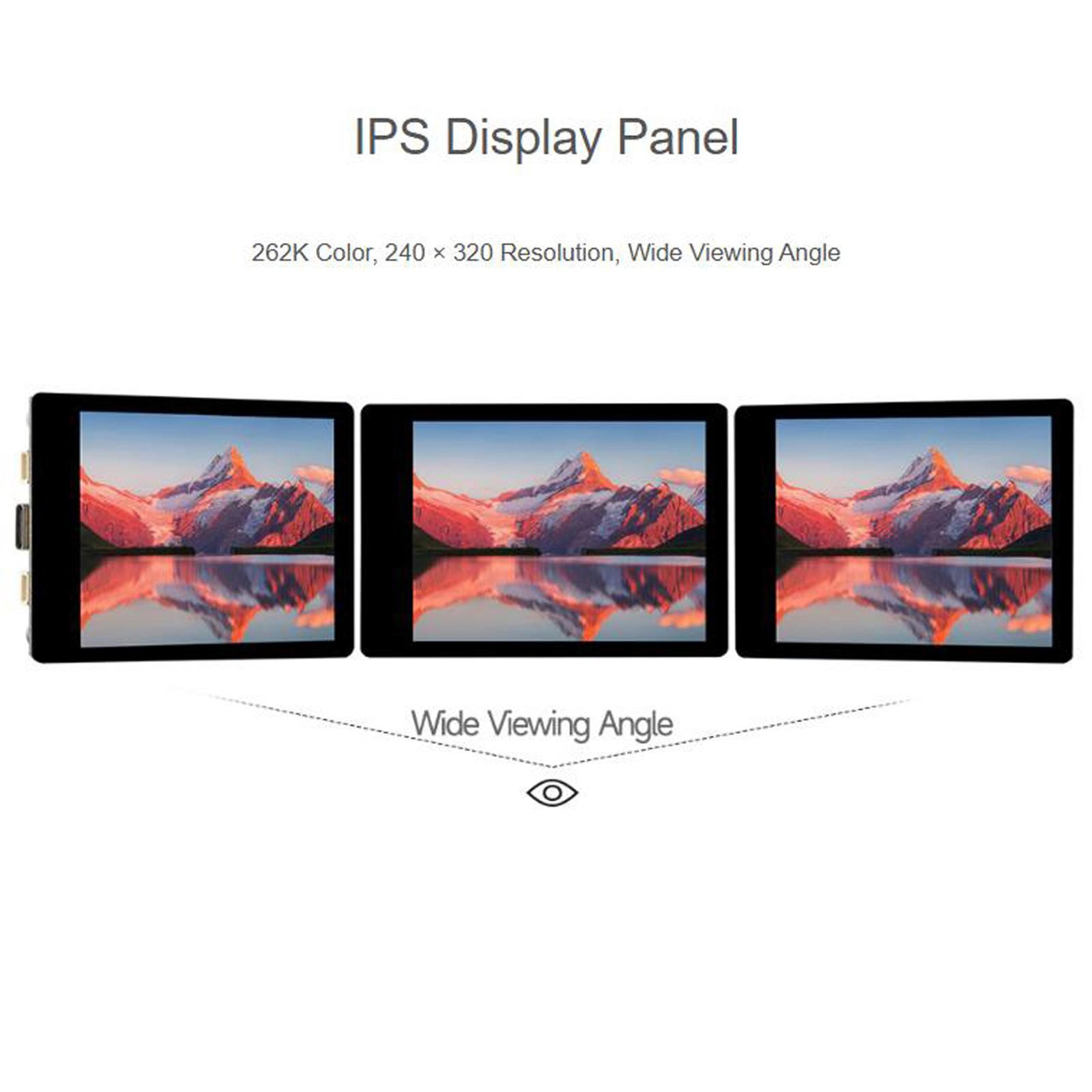

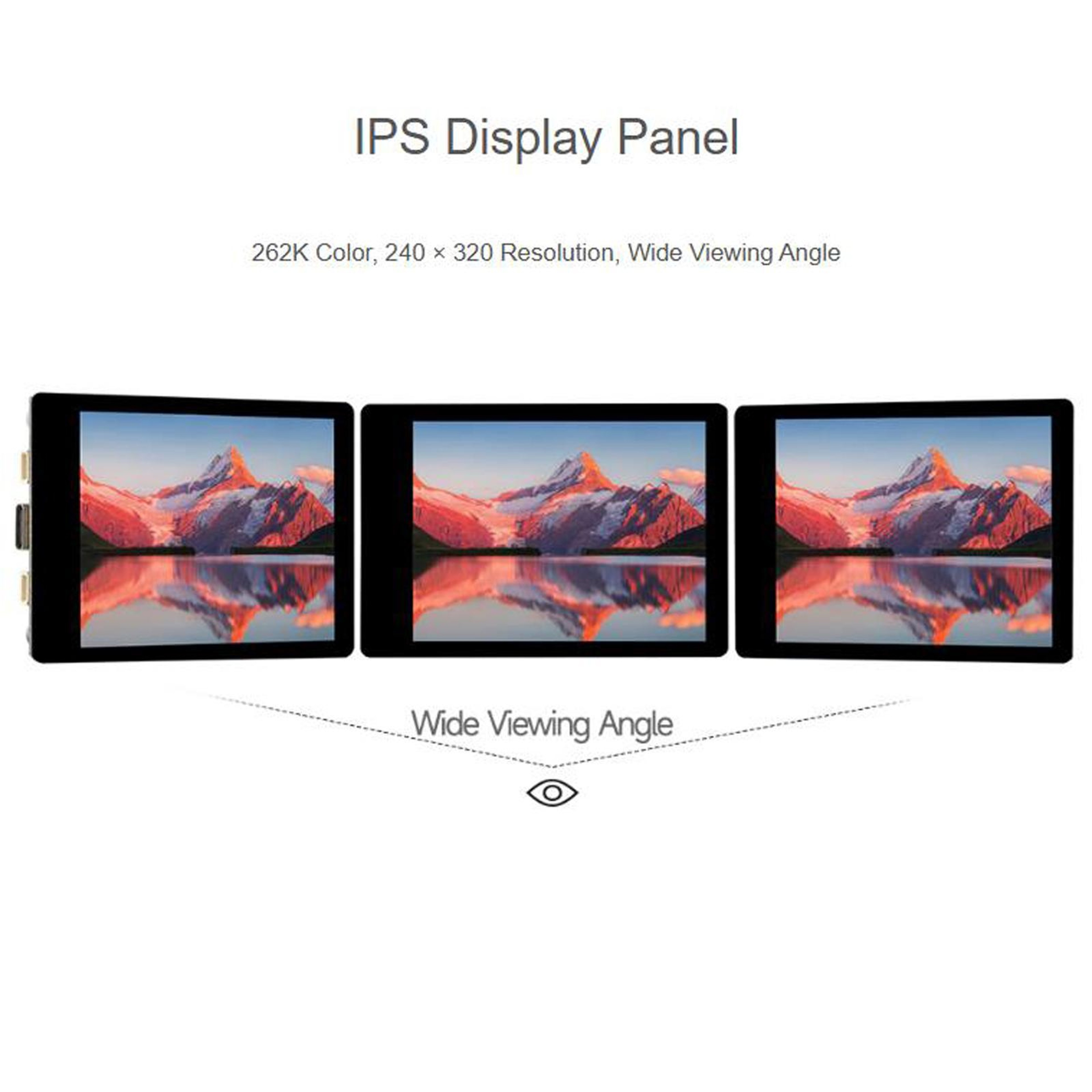

• 2.8-inch IPS capacitive touchscreen with 240 x 320 resolution and 262K colors for clear interactive interfaces.
• 240MHz 32-bit RISC-V processor with 8MB PSRAM and 32MB Flash for graphics, applications, and data storage.
• Bluetooth 5 development board connectivity plus dual-band Wi-Fi, Zigbee 3.0, and Thread support for versatile IoT projects.

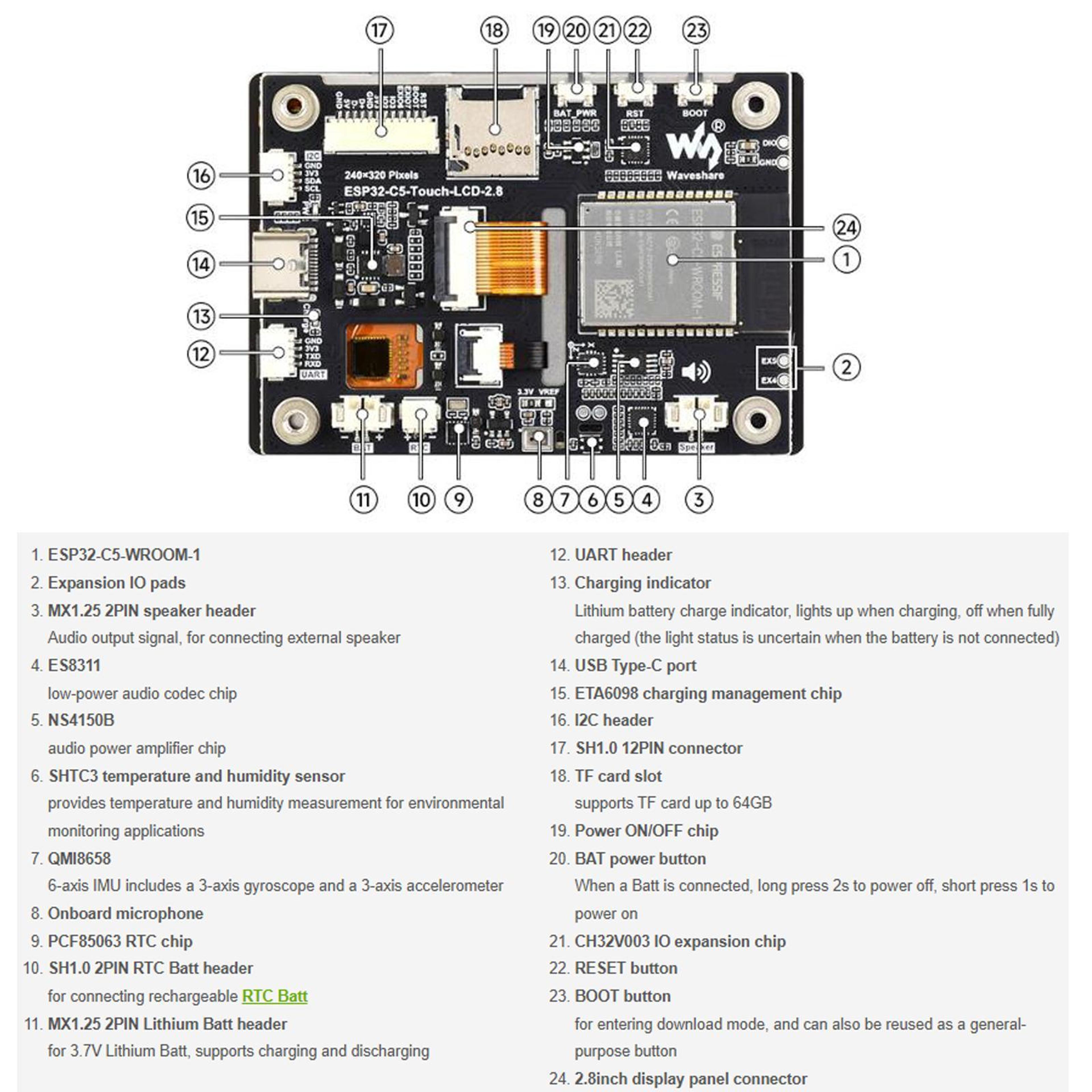

• Integrated QMI8658 six-axis sensor, RTC, SHTC3 temperature and humidity sensor, Micro SD slot, microphone, speaker, and audio codec.

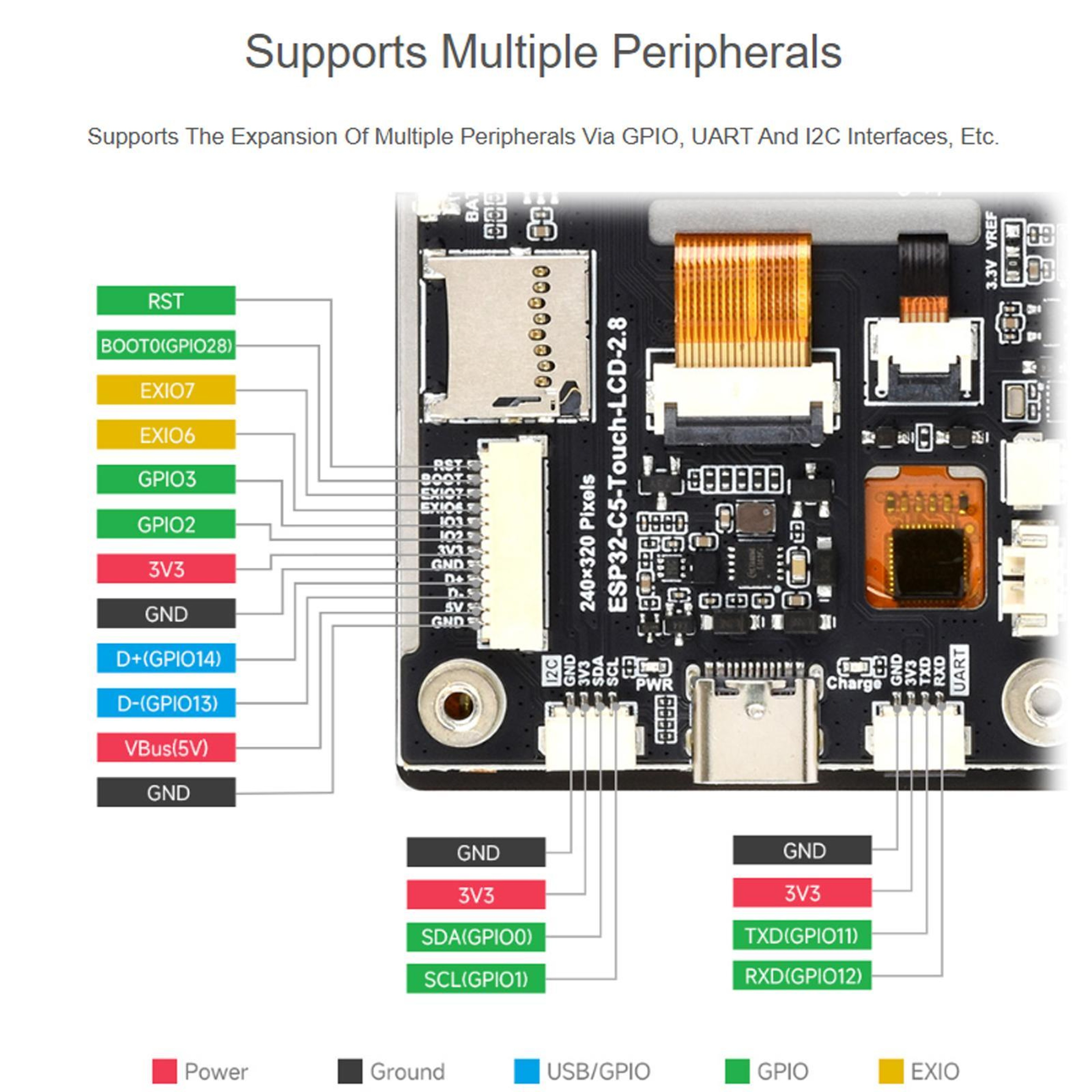

• USB-C, UART, I2C, GPIO expansion, battery charging management, and low-power modes provide flexible integration.



Why Choose Our WAVESHARE ESP32-C5 2.8 Inch Touch Display Development Board
Instead of combining a separate MCU board, display, sensors, audio modules, storage, and wireless adapters, this integrated platform puts essential development hardware together in one compact design. Its combination of a capacitive touchscreen, dual-band wireless connectivity, extensive onboard peripherals, and Arduino/ESP-IDF support makes it especially practical for feature-rich prototypes and connected embedded systems.

Perfect For

• IoT dashboards and smart control panels
• Home automation and Zigbee or Thread projects
• Interactive embedded user interfaces
• Sensor monitoring and environmental displays
• Portable electronics and low-power prototypes
• Educational electronics and Arduino development
• AI-enabled voice and audio experiments



Bring Your Next Connected Idea to Life
Choose the WAVESHARE ESP32-C5 touch display board for a versatile foundation that helps you prototype faster, connect more devices, and create polished interactive projects with fewer extra modules.
