90HP Hydraulic Outboard Steering Kit with 13.5-Inch Wheel and 26FT Hoses

Upgrade your boat's steering system with this 90HP Hydraulic Outboard Steering Kit, designed for smooth, responsive control on the water. Featuring a durable hydraulic helm, compact steering cylinder, 13.5-inch steering wheel, and two 26-foot hydraulic hoses, this marine steering system provides a practical replacement for worn or damaged steering components. Designed for single-station, single-engine boats with outboard motors up to 90HP, it combines reliable hydraulic operation with corrosion-resistant construction.

Key Features

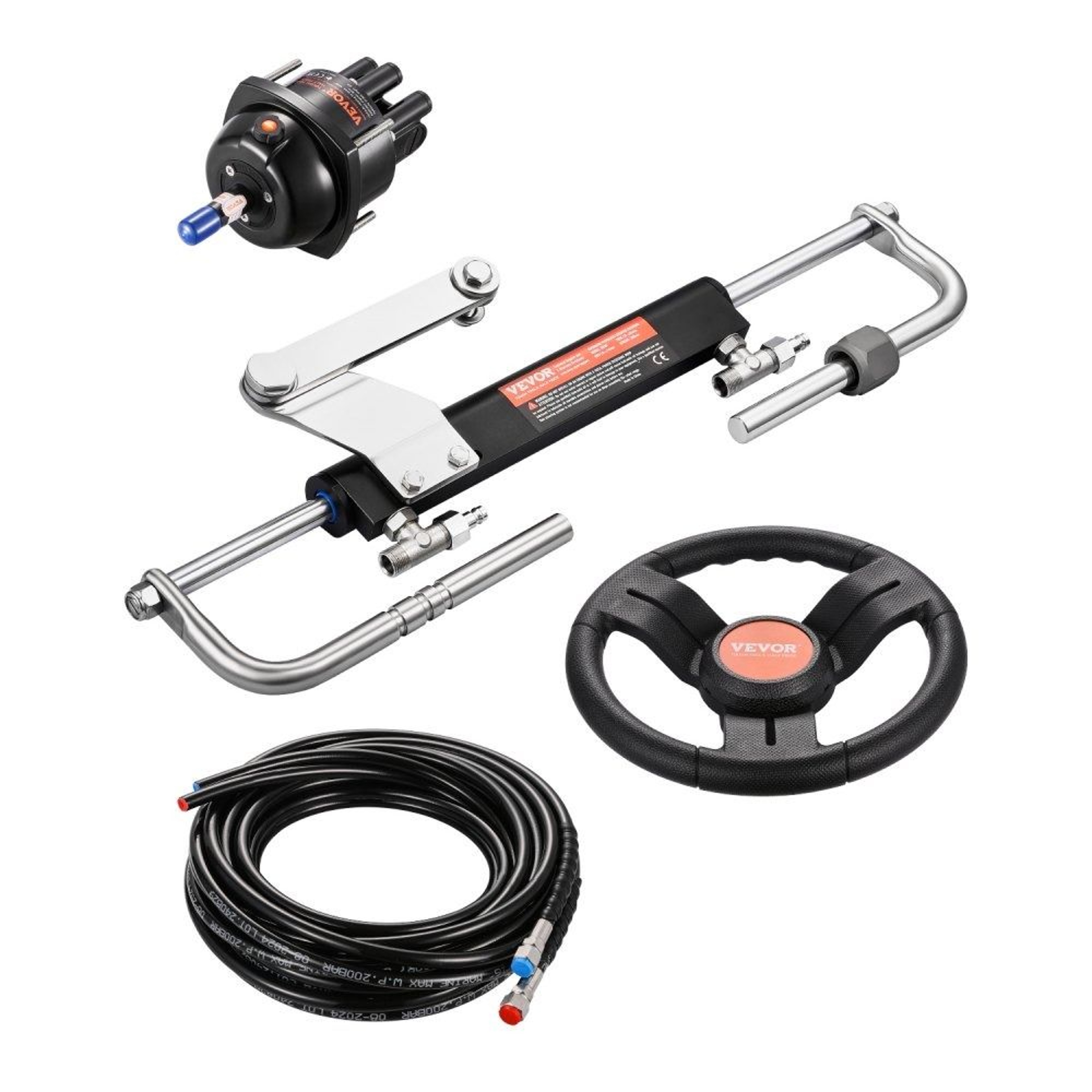

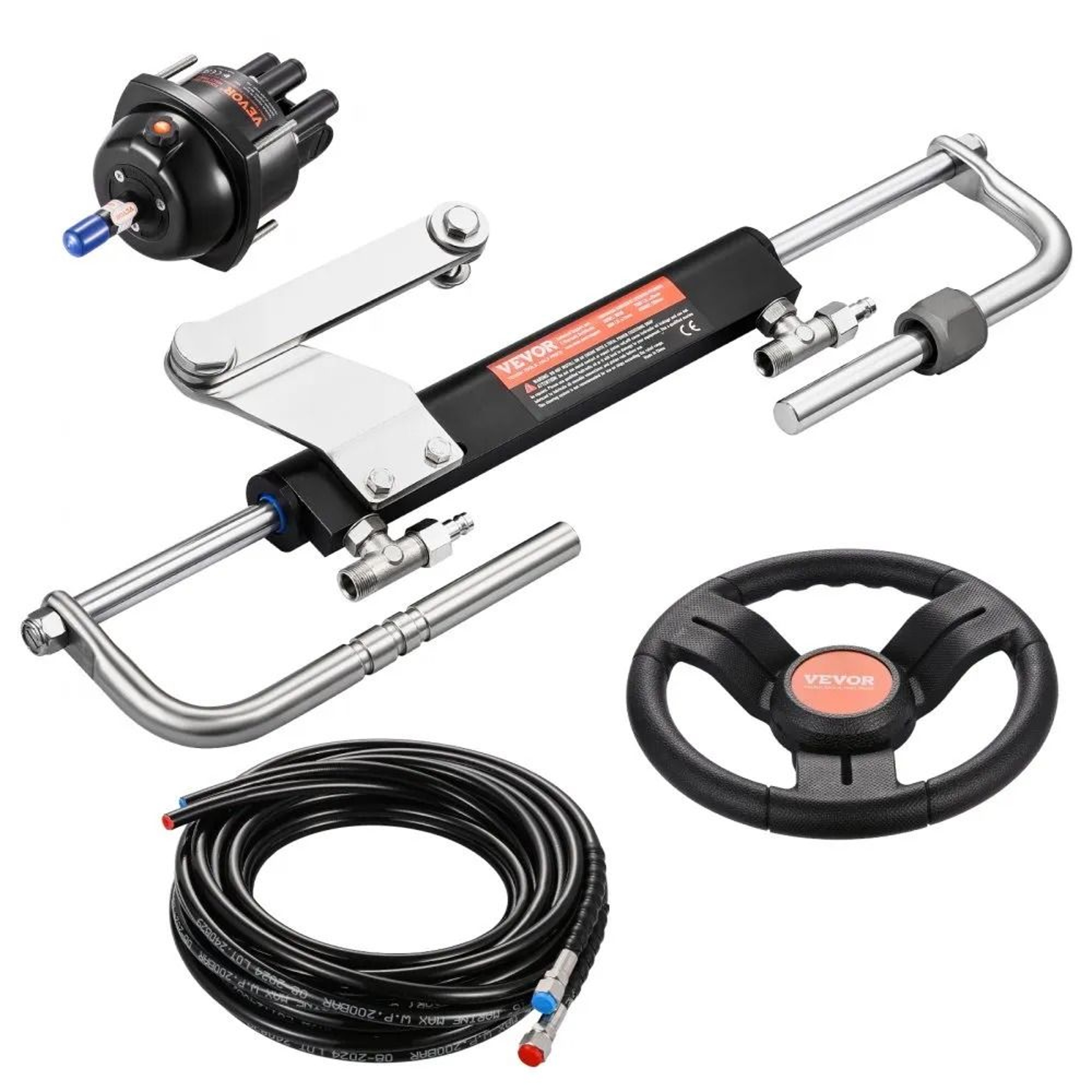

• Complete Hydraulic Steering Kit: Includes a hydraulic helm pump, steering cylinder, 13.5-inch steering wheel, two 26-foot hydraulic hoses, and installation accessories for a complete steering system replacement.

• Corrosion-Resistant Hydraulic Helm: Constructed from aluminum alloy to withstand marine conditions. Features a built-in check valve, filling port, and maximum working pressure of 1000 PSI (6.9 MPa) for dependable hydraulic operation.

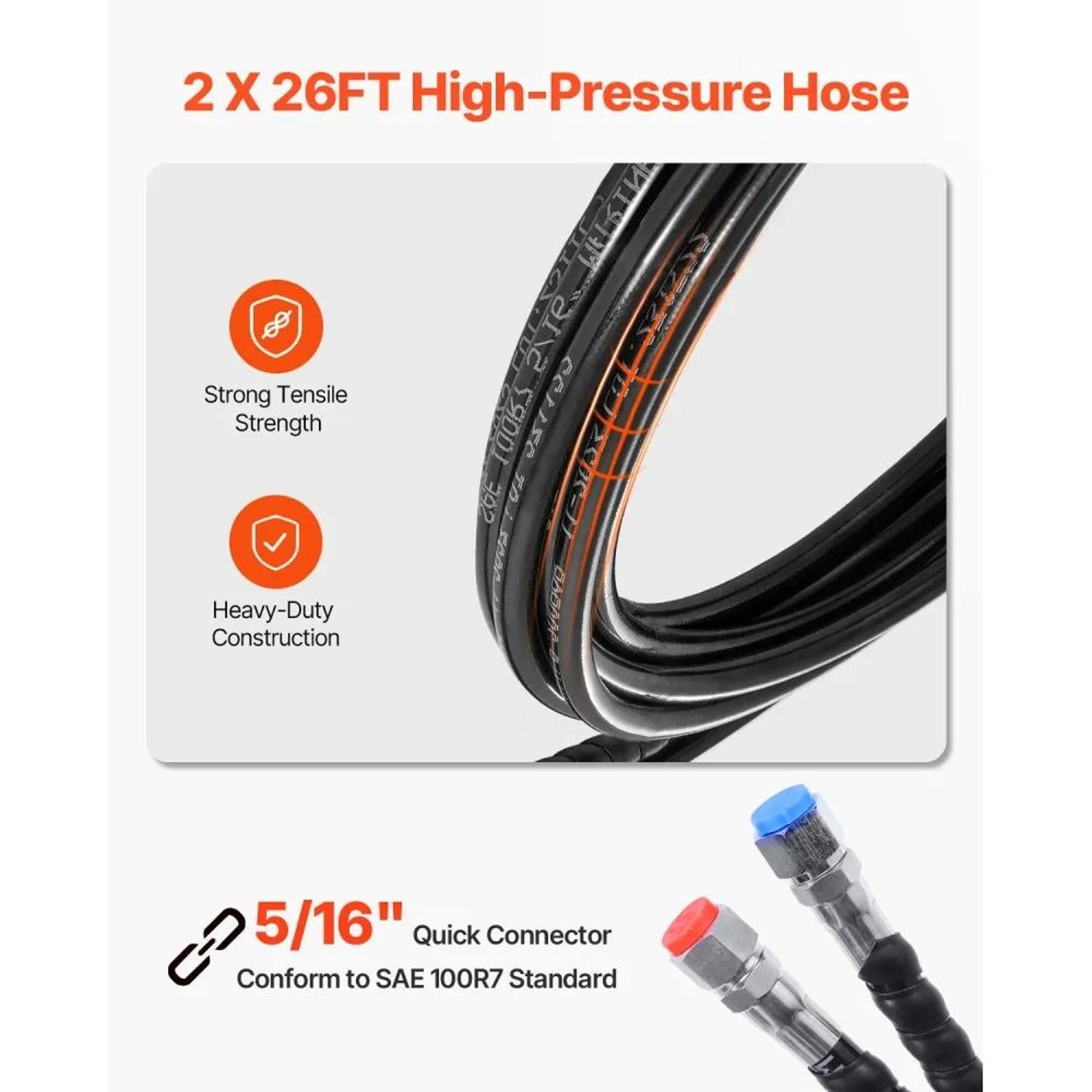

• Durable 26FT Hydraulic Hoses: Two 26-foot hoses feature quick-fit 5/16-inch fittings and meet SAE 100R7 standards. Designed for stable hydraulic fluid transmission and responsive steering performance.

• Compact Steering Cylinder: Features a sturdy structure and efficient seals to handle demanding marine environments. Its compact design fits most splash wells while allowing proper outboard engine operation.

• Versatile Outboard Compatibility: Suitable for outboard motors rated up to 90HP, providing precise steering control for compatible single-engine boats.

Specifications

• Product Type: Marine Hydraulic Outboard Steering System

• Maximum Engine Horsepower: 90HP

• Hydraulic Helm Material: Corrosion-resistant aluminum alloy

• Maximum Working Pressure: 1000 PSI (6.9 MPa)

• Steering Wheel Diameter: Approx. 13.5 inches

• Hydraulic Hose Length: Approx. 26 feet each

• Hose Quantity: 2

• Hose Fitting Size: 5/16 inch

• Hose Standard: SAE 100R7

• Hydraulic Cylinder Dimensions: Approx. 20.7 × 6.7 × 2.8 inches (526 × 170 × 70 mm)

• Net Weight: Approx. 18.7 lbs (8.5 kg)

• Application: Single-station, single-engine boats with compatible outboard motors

Restore responsive steering and enjoy more precise boat handling with this durable 90HP hydraulic outboard steering system.
